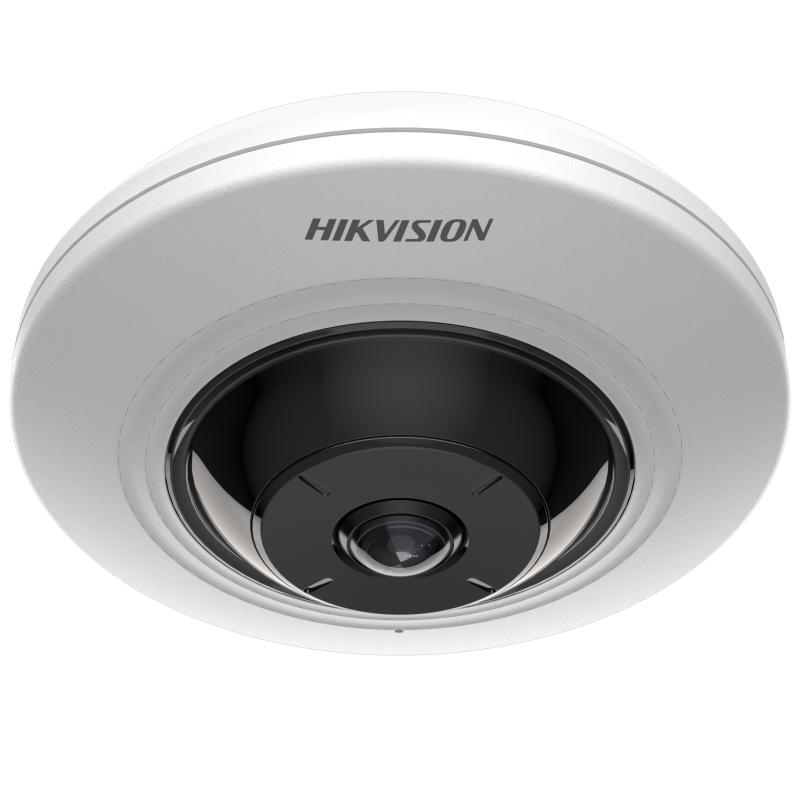

Hikvision 5MP Fixed Fisheye Network Camera

Specifications

Image Sensor: 1/2.7″ Progressive Scan CMOS; Max. Resolution: 2560 × 1920; Min. Illumination: Color: 0.017 Lux @ (F2.25, AGC ON),B/W: 0 Lux with IR; Shutter Time: 1/3 s to 1/100,000 s; Day & Night: IR cut filter; Lens Type: Fixed focal lens, 1.05 mm; Focal Length & FOV: 1.05 mm, horizontal FOV: 180°, vertical FOV: 180°, diagonal FOV: 180°; Focus: Fixed; Lens Mount: M12; Iris Type: Fixed; Aperture: F2.25; Depth of Field: 0.1 m to ∞; DORI: D: 21 m, O: 8 m, R: 4 m, I: 2 m; Supplement Light Type: IR; Supplement Light Range: Up to 8 m; Smart Supplement Light: Yes; IR Wavelength: 850 nm; Main Stream: 50 Hz: 25 fps（2560 × 1920, 2048 × 1536, 1280 × 960）
60 Hz: 30 fps（2560 × 1920, 2048 × 1536, 1280 × 960）; Sub-Stream: 50 Hz: 25 fps (640 × 480)
60 Hz: 30 fps (640 × 480); Video Compression: Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG; Video Bit Rate: 32 Kbps to 16 Mbps; H.264 Type: Baseline Profile,Main Profile,High Profile; H.265 Type: Main Profile; Region of Interest (ROI): 1 fixed region for main stream; Mount Type: Support wall/table/ceiling mounting; Display Mode: Support 14 display modes in total(including display modes of different mount types): Fisheye View, 180 Panorama View, 4PTZ, Fisheye + 3PTZ, 360 Panorama + PTZ, 360 Panorama + 3PTZ, 360 Panorama + 6PTZ, 360 Panorama + 8PTZ, 2PTZ, Fisheye + 8PTZ, Panorama View, Panorama + 3PTZ, Panorama + 8PTZ; Audio Type: Mono sound; Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC; Audio Bit Rate: 64 Kbps (G.711 ulaw/G.711 alawm/16 Kbps (G.722.1)/16 Kbps (G.726)/32~160 Kbps (MP2L2)/16~64Kbps (AAC-LC); Audio Sampling Rate: 8 kHz/16 kHz; Environment Noise Filtering: Yes; Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS; Simultaneous Live View: Up to 6 channels; API: Open Network Video Interface (Profile S, Profile T, Profile G),ISAPI; User/Host: Up to 32 users
3 user levels: administrator, operator, and user; Client: iVMS-4200,Hik-Connect,Hik-Central; Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface; Web Browser: Plug-in required live view: IE 10+,
Local service: Chrome 57.0+, Firefox 52.0+; Network Storage: NAS (NFS, SMB/CIFS); Image Settings: Rotate mode,saturation,brightness,contrast,sharpness,white balance,adjustable by client software or web browser; Day/Night Switch: Day,Night,Auto,Schedule; Image Enhancement: BLC,3D DNR; Wide Dynamic Range (WDR): 120 dB; Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port; On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB; Built-in Microphone: -U: Yes; Audio: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium; Alarm: 1 input, 1 output (max. 12 VDC, 30 A); Reset Key: Yes; Power Output: 12 VDC, max. 100 mA; Basic Event: Motion detection, video tampering alarm, exception; Smart Event: Line crossing detection, intrusion detection; Linkage: Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,trigger alarm output; Power: 12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 7.5 W; Material: ADC12; Dimension: Ø119.9 mm × 41.2 mm (Ø4.7″ × 1.6″); Package Dimension: 150 mm × 125 mm × 99 mm (5.9″ × 4.9″ × 3.9″); : Approx. 320 g (0.7 lb.); With Package Weight: Approx. 500 g (1.1 lb.); Language: 13 languages English, Turkish, Polish, Romanian, Czech, Slovak, Traditional Chinese, Thai, Vietnamese, Croatian, Slovenian, Serbian, Ukrainian; Storage Conditions: -10 °C to 50 °C (-14 °F to 122 °F). Humidity 95% or less (non-condensing); Startup and Operating Conditions: -10 °C to 50 °C (-14 °F to 122 °F). Humidity 95% or less (non-condensing); General Function: Heartbeat,anti-banding,mirror,password protection; EMC: CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015; Safety: UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,
LOA: IEC/EN 60950-1; Environment: CE-RoHS: 2011/65/EU
