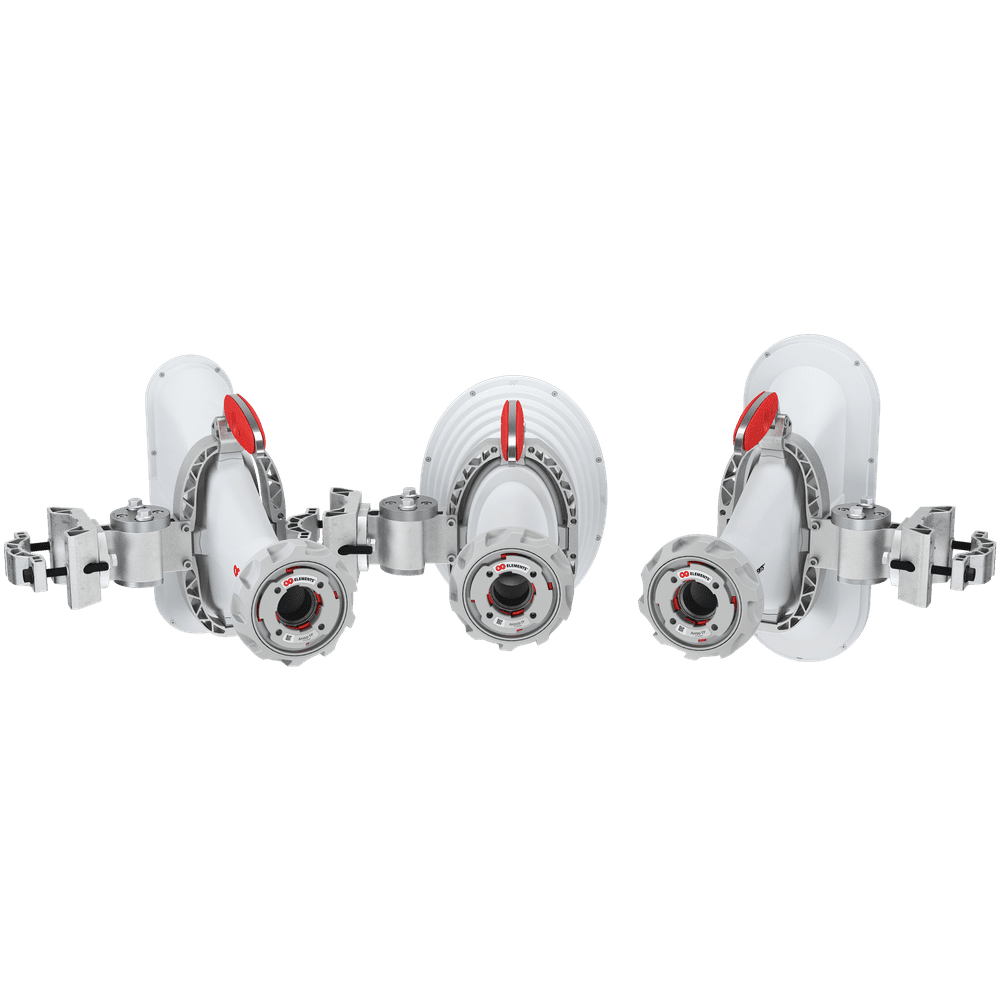

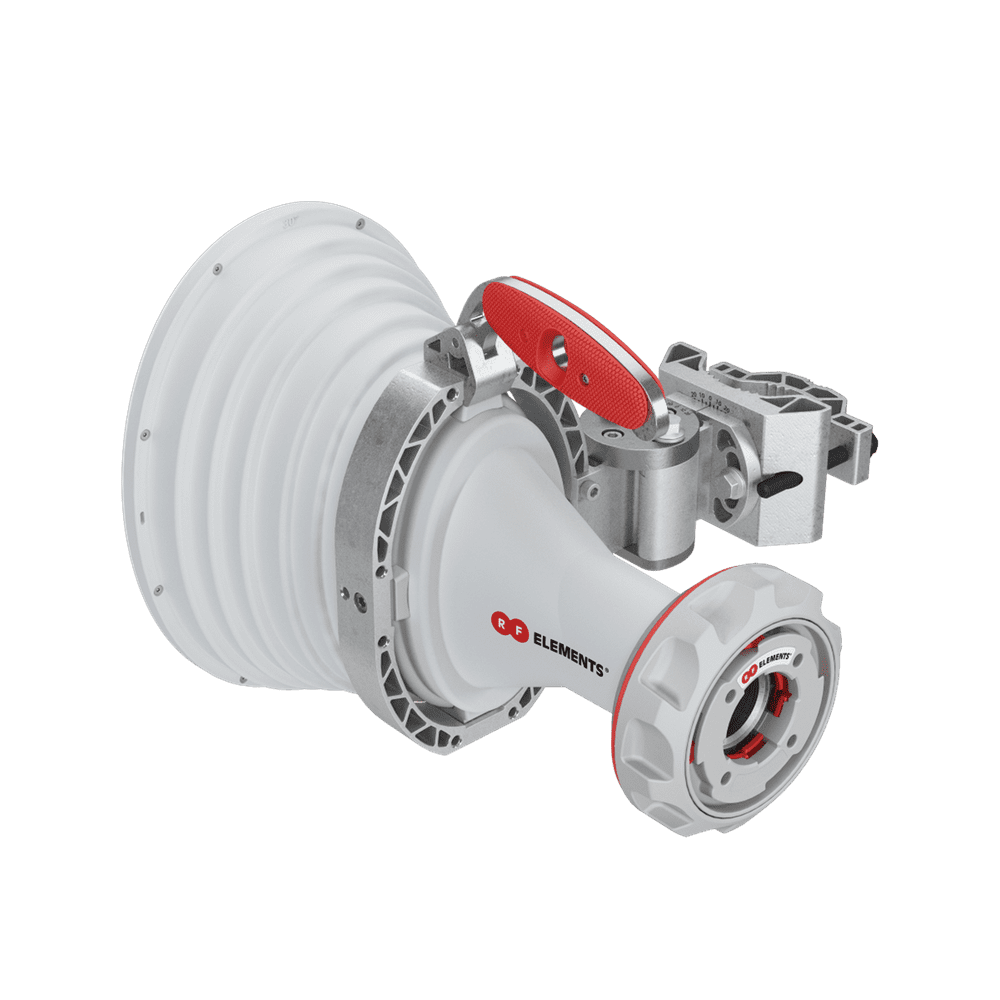

The 30° Sector AH2030-TP is an Asymmetrical Horn TP Antenna distinguished by its unique asymmetrical beam shape and the game-changing TwistPort™ connector. This antenna provides excellent noise rejection, network scalability, and increased throughput. Operating in the 5180-6000 MHz range with a 20.5 dBi gain, its radiation pattern is 30° wide in azimuth and 20° in elevation, featuring balanced H+V beams that remain stable across the entire band. The innovative BeamSwitch™ feature allows for a 90-degree rotation of the antenna, providing flexible beamwidth orientation (20° azimuth and 30° elevation). Its naturally depressed side lobes concentrate energy into a single main beam, ensuring superior noise immunity. Built with a solid aluminum body, it is robust and features an innovative mounting system for quick, one-handed, tool-free installation.
30° Sector AH2030-TP Asymmetrical Horn
0° Asymmetrical Horn TP (AH2030-TP) with TwistPort. Offers superior noise rejection, scalability & 20.5 dBi gain. Easy, durable deployment.
