60° Sector AH60-TP Asymmetrical Horn

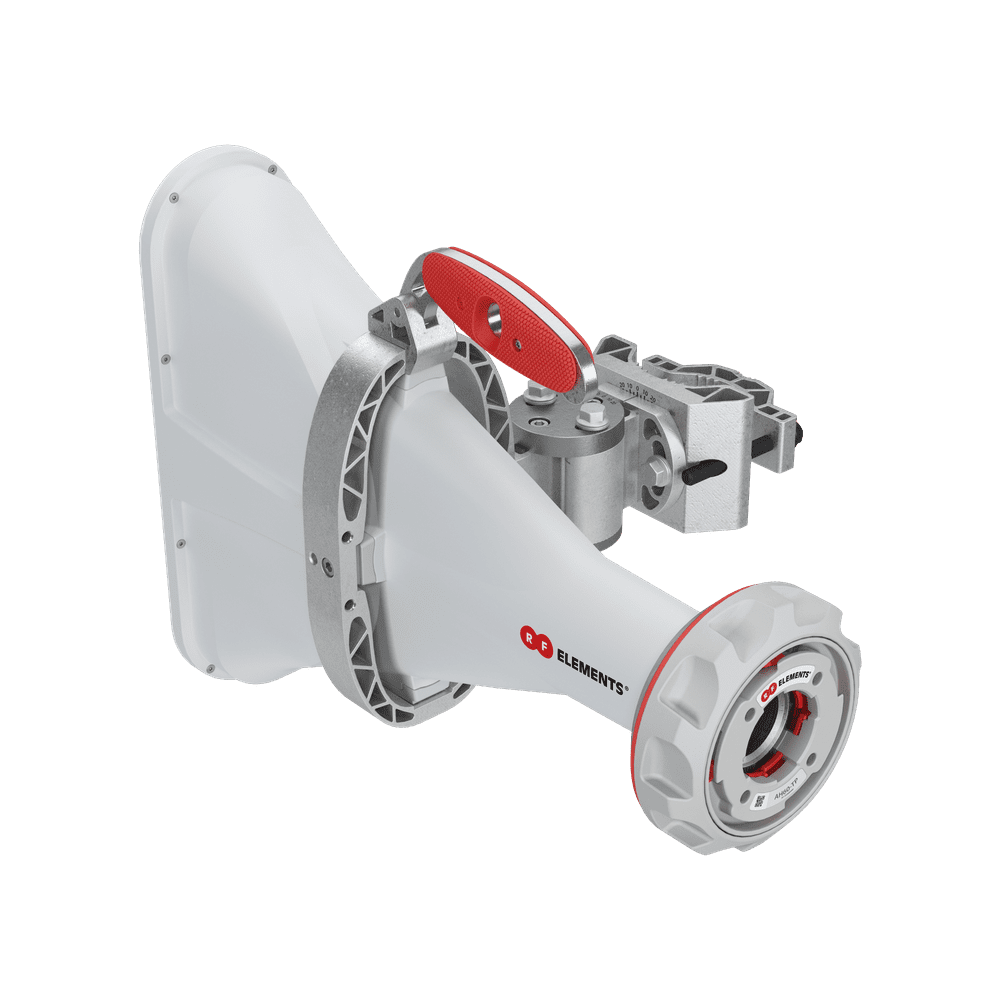

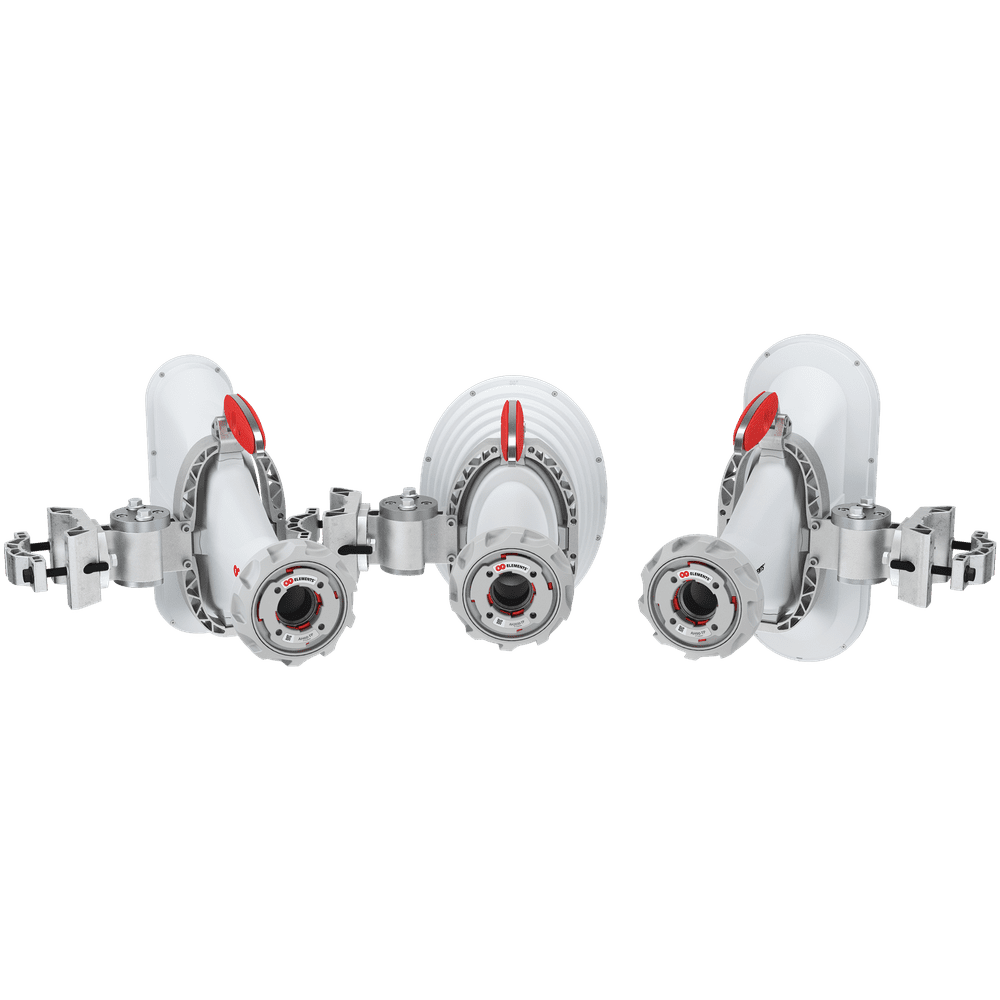

The 60° Sector AH60-TP is an Asymmetrical Horn TP Antenna that uniquely combines the high gain of a traditional sector antenna (17 dBi) with the zero side lobe characteristic of a horn, significantly improving coverage planning. Its radiation pattern is 60° wide in azimuth and 25° in elevation, demonstrating unmatched beam performance with high stability of gain and radiation patterns across the 5180-6000 MHz band. This antenna excels in high-density AP clusters, highly populated areas, and dense co-location sites due to its outstanding noise rejection and precise beam performance. It features the revolutionary TwistPort™ connector for virtually lossless, quick-locking radio integration and includes a robust aluminum structural ring and mounting bracket for enhanced durability and easy installation. This model was recognized with the WISPA Product of the Year Award in 2019, 2020, and 2021.
