90° Sector AH90WB Asymmetrical Horn

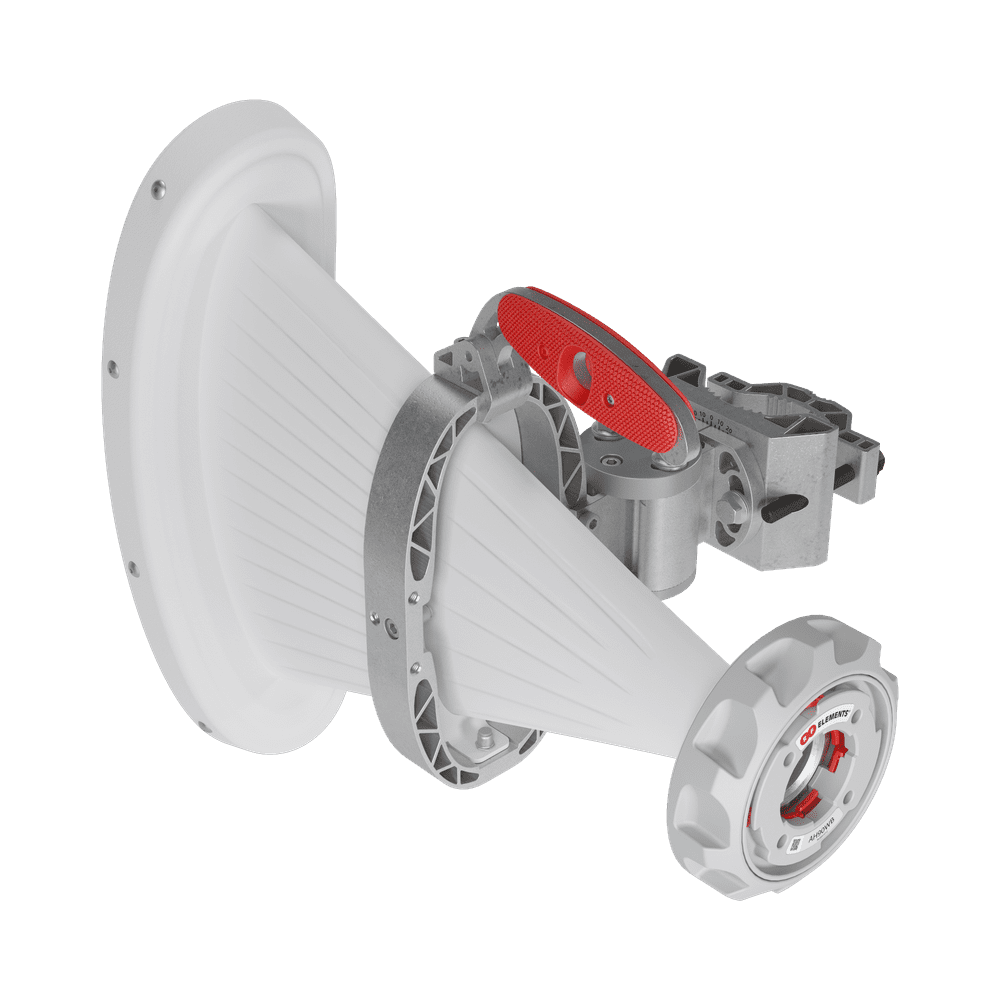

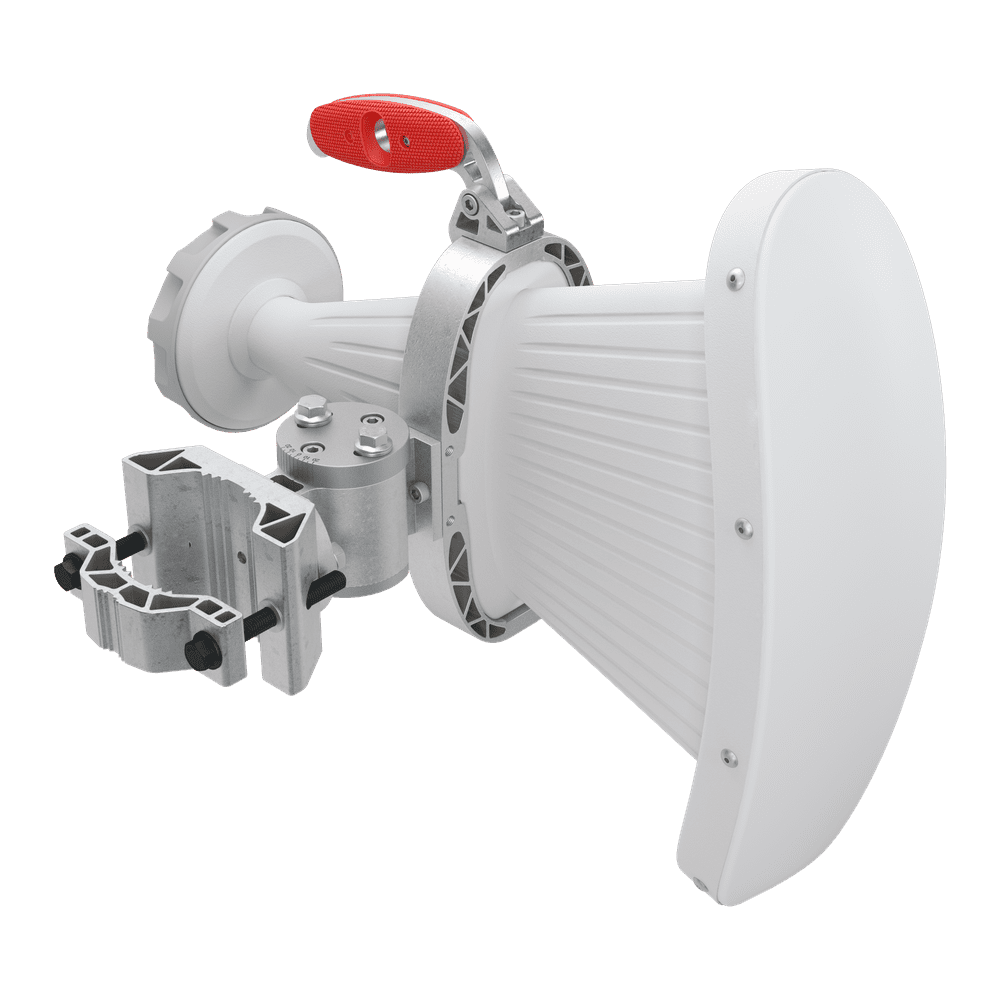

The 90° Sector AH90WB is an Asymmetrical Horn Antenna designed for ultimate wideband performance, covering both 5 GHz and 6 GHz unlicensed spectrum bands (4900-7125 MHz) with a gain of 15 dBi. It features an asymmetrical beam pattern with highly suppressed sidelobes, offering excellent noise rejection and supreme scalability for high-density AP clusters and dense co-location deployments. The AH90WB is equipped with the proprietary TwistPort™ waveguide connector, ensuring virtually zero-loss radio connection. Its new industrial design incorporates high-grade marine-grade aluminum and stainless steel for extreme outdoor resistance, including harsh saltwater environments, while maintaining a lightweight and compact form factor for reduced tower load and wind loading. The innovative UBR mounting bracket with anti-seize coating and an integrated handle ensures easy, ergonomic deployment and adjustment.
