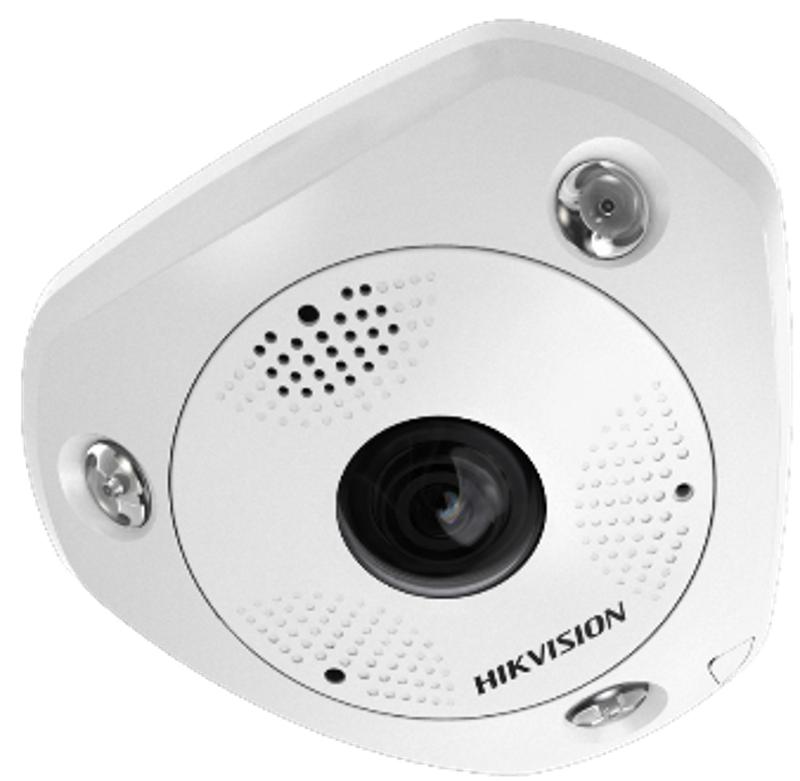

360° 0-blind zone image, a fisheye network camera capable of providing a 360 degree panoramic image of its surveillance scene; Multi dewarping modes, the image can be dewarped to normal image to view intuitively; Built-in mic and speaker, it supports two-way audio to realize real-time security by hearing sound and speaking through the camera; IP66/IK10 , water resistant and vandal proof, there is no need to worry about water ingress when it is used in outdoor scenarios; With up to 12 MP high resolution lens, the image is very clear even dewarped into 4 PTZ images
Available Models
DS-2CD63C5G0E-IS(2mm)(B)
Specifications
Image Sensor: 1/1.8″ Progressive Scan CMOS; Max. Resolution: 3072 × 2048; Min. Illumination: Color: 0.047 Lux @ (F2.6, AGC ON),
B/W: 0.0047 Lux @ (F2.6, AGC ON), 0 Lux with IR; Shutter Time: 1 s to 1/100,000 s; Day & Night: IR Cut Filter; Focal Length & FOV: 1.27 mm, horizontal FOV 180° (wall mount), 360°(ceiling mount), 360°(table mount); Lens Mount: M12; Aperture: F2.6; Supplement Light Type: IR, 3 LEDs. Each LED is independently controlled.; Supplement Light Range: Up to 15 m IR range; IR Wavelength: 850 nm; Main Stream: 50Hz: 25fps (3072 × 2048, 2048 × 2048, 1280 × 1280)
60Hz: 30fps (3072 × 2048, 2048 × 2048, 1280 × 1280); Sub-Stream: 50Hz: 25fps (720 × 720, 720 × 480)
60Hz: 30fps (720 × 720, 720 × 480); Video Compression: Main stream: H.265+/H.265/H.264+/H.264
Sub stream: H.265/H.264/MJPEG; Video Bit Rate: 32 Kbps to 16 Mbps; H.264 Type: Baseline Profile/ Main Profile /High Profile; H.265 Type: Main Profile; Scalable Video Coding (SVC): H.265 and H.264 support; Region of Interest (ROI): 4 fixed regions for main stream and sub-stream; Mount Type: Support table, wall, and ceiling mounting; Display Mode: 18 display modes in total
Software decoding:
Ceiling mount: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ, half sphere, cylinder
Wall mount: fisheye view, panorama view, panorama + 3PTZ, panorama + 8PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ
Table mount: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ, cylinder
Hardware decoding:
Ceiling mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion
Wall mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion
Table mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion; Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM; Audio Bit Rate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2); Audio Sampling Rate: 8 kHz/16 kHz; Environment Noise Filtering: Yes; Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour; Simultaneous Live View: Up to 20 channels; API: ONVIF (PROFILE S, PROFILE G), ISAPI; User/Host: Up to 32 users. 3 user levels, administrator, operator and user; Security: Password protection, HTTPS encryption, IEEE 802.1x port-based network access control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF; Network Storage: Support microSD/SDHC/SDXC card (256 G), local storage and NAS (NFS,SMB/CIFS), ANR; Client: iVMS-4200, iVMS-4500, Hik-Connect, iVMS-5200; Web Browser: IE8+, Chrome31.0-44, Firefox 30.0-51, Safari8.0+; Image Settings: Saturation, brightness, contrast, sharpness, AGC and white balance are adjustable by client software or web browser; Day/Night Switch: Day/Night/Auto/Schedule/Triggered by Alarm In (-S); Wide Dynamic Range (WDR): Digital WDR; Image Enhancement: BLC, HLC, defog, 3D DNR; Picture Overlay: LOGO picture can be overlaid on video with 128 × 128 24bit bmp format; Ethernet Interface: 1 RJ45 10M/100M/1000M self-adaptive Ethernet port; On-Board Storage: Built-in micro SD/SDHC/SDXC slot, up to 256 GB; Built-in Microphone: 2 built-in microphones; Built-in Speaker: 1 built-in speaker; Audio: 1 Audio input (line in, 3.5 mm), 1 audio output (line out, 3.5 mm), mono sound; Alarm: 1-ch alarm input, max. 12 V; 1-ch alarm output, max 24 VDC, 1 A; Reset Key: Yes; Basic Event: Motion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login, HDD full, HDD error; Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
Audio exception detection; Power: 12 VDC±20%, 0.9 A, max. 11 W
PoE: 802.3af, Class 0, 36 to 57 V, 0.3 A to 0.2 A, max. 12 W
-S model: two-core terminal block
Without –S model: Φ 5.5 × 2.1 mm coaxial power plug; Dimension: Without –V model: 167.4 × 152.8 × 50.1 mm (6. 6″ × 6″ × 2″)
With –V model: 167.4 × 152.8 × 55 mm (6. 6″ × 6″ × 2.2″); : Approx. 1400 g (3.09 lbs); Startup and Operating Conditions: -40 °C to +60 °C (-40 °F to +140 °F), Humidity 95% or less (non-condensing); EMC: IC: IC-VoC(ICES-003 Issue 7:2020),
FCC: FCC-SDoC(ANSI C63.4,FCC Part15 sub B),
CE: CE-EMC(EN 55024:2010 +A1:2015,EN 55032:2015,EN 61000-3-2:2014,EN 61000-3-3:2013),
RCM: AS/NZS 60950.1:2003 + Am1, Am2 and Am3,AS/NZS CISPR 32:2015; Safety: CB: IEC 60950-1,
UL: UL 60950-1:2014,CAN/CSA C22.2 No. 60950-1-07:2014,
LOA: SANS IEC60950-1; Environment: CE: CE-RoHS(RoHS Directive 2011/65/EU+2015/863); Protection: With -V: IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
