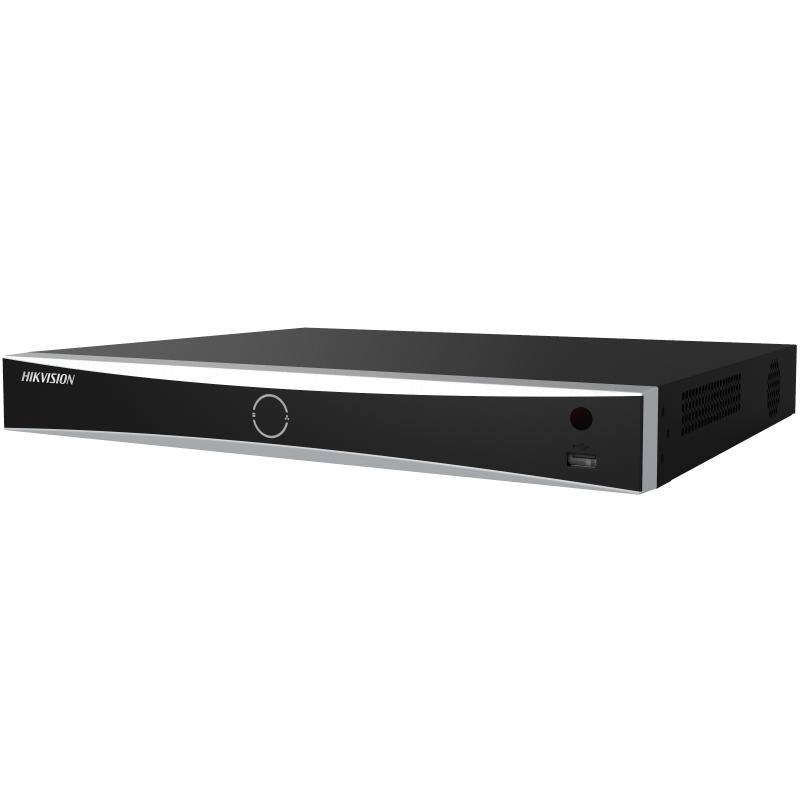

Hikvision 16-ch 1U K Series AcuSense 4K NVR DS-7616NXI-K2(D)

Specifications

AI by Device: Facial recognition, perimeter protection, motion detection 2.0; AI by Camera: Facial recognition, perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA; Facial Detection and Analytics: Face picture comparison, human face capture, face picture search; Face Picture Library: Up to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 1 GB); Facial Detection and Analytics Performance: 1-ch, 8 MP; Face Picture Comparison: 4-ch; By Camera: All channels; By Device: 2-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm; By Camera: All channels; IP Video Input: 16-ch; Incoming Bandwidth: 160 Mbps; Outgoing Bandwidth: 160 Mbps; HDMI Output: 1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz; VGA Output: 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz; Video Output Mode: HDMI/VGA independent output; CVBS Output: N/A; Audio Output: 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input); Two-Way Audio: 1-ch, RCA (Linear, 1 KΩ); Decoding Format: H.265/H.265+/H.264+/H.264; Recording Resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF; Synchronous playback: 16-ch; Decoding Capability: AI on: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p (30 fps)
AI off: 2-ch@12 MP (30 fps)/4-ch@8 MP (30 fps)/8-ch@4 MP (30 fps)/16-ch@1080p (30 fps); Stream Type: Video, Video & Audio; Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/AAC; Remote Connection: 128; API: ONVIF (profile S/G); SDK; ISAPI; Compatible Browser: IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version; Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS; Network Interface: 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface; SATA: 2 SATA interfaces; Capacity: Up to 16 TB capacity for each HDD; USB Interface: Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0; Alarm In/Out: 4/1; GUI Language: English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian; Power Supply: 12 VDC, 3.3 A; Consumption: ≤ 15 W (without HDD); Working Temperature: -10 °C to 55 °C (14 °F to 131 °F); Working Humidity: 10% to 90%; Dimension (W × D × H): 385 mm × 315 mm × 52 mm (15.2″× 12.4″ × 2.0″); : ≤ 1 kg (without HDD, 2.2 lb.); CE: EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017; Obtained Certification: CE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS
