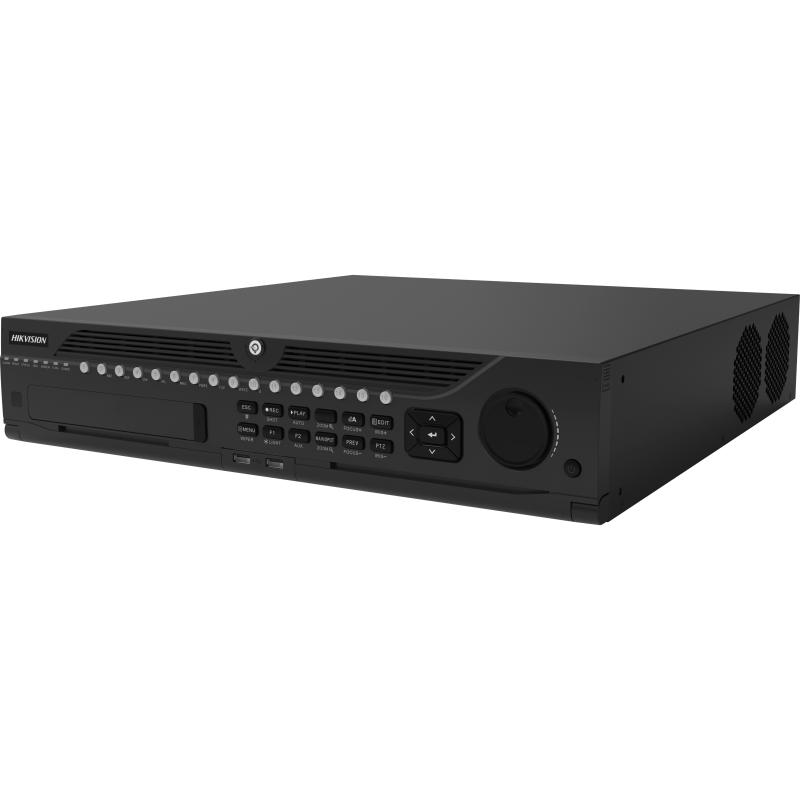

Hikvision 16-ch 2U 4K NVR DS-9616NI-I8

Specifications

IP Video Input: 16-ch
Up to 12 MP resolution
*: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.; Incoming Bandwidth: 256 Mbps; Outgoing Bandwidth: 256 Mbps; Incoming Bandwidth (RAID Mode): 200 Mbps; Outgoing Bandwidth (RAID mode): 200 Mbps; HDMI 1 Output: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; HDMI 2 Output: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; VGA 1 Output: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; VGA 2 Output: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; Video Output Mode: HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output;
HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output; CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480; Audio Output: 2-ch, RCA (Linear, 1 KΩ); Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input); Decoding Format: H.265+/H.265/H.264+/H.264/MPEG4; Recording Resolution: 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
*: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.; Synchronous playback: 16-ch; Decoding Capability: 1-ch@32 MP (30 fps)/2-ch@12 MP (20fps)/4-ch@8 MP (25fps)/8-ch@4 MP (30fps)/16-ch@1080p (30fps); Dual-Stream Recording: Support; Stream Type: Video, Video & Audio; Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM; Remote Connection: 128; Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS; Network Interface: 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface; RAID Type: RAID0, RAID1, RAID5, RAID6, and RAID10 (at least 4 TB for each HDD); Serial Interface: 1 RS-485 (full-duplex), 1 RS-232, 1 keyboard; SATA: 8 SATA interfaces supporting hot-plug; eSATA: 1 eSATA interface; Capacity: Up to 10TB capacity for each disk; Alarm In/Out: 16/4; USB Interface: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0; Power Supply: 100 to 240 VAC, 50 to 60 Hz; Consumption: ≤ 30 W; Working Temperature: -10 °C to 55 °C (14 °F to 131 °F); Working Humidity: 10% to 90%; Chassis: 2U chassis; Dimension (W × D × H): 445 × 465 × 92 mm ( 17.5″× 18.3″ × 3.6″); : ≤ 10 kg (22 lb); FCC: Part 15 Subpart B, ANSI C63.4-2014; CE: EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
