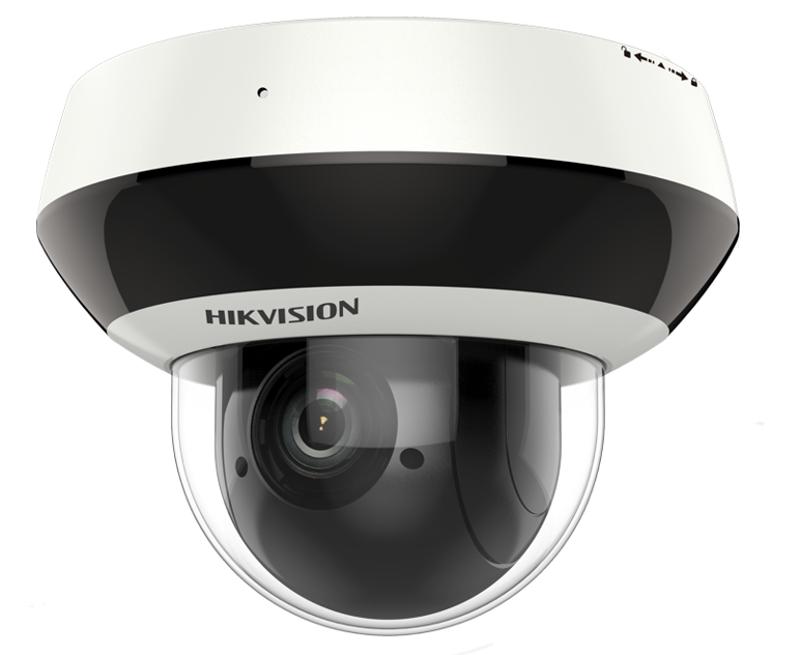

Hikvision 2-inch 4 MP 4X Powered by DarkFighter IR Network Speed Dome

Specifications

FOV: Horizontal field of view: 96.7° to 31.6° (Wide-Tele), Vertical field of view: 51.1° to 17.7° (Wide-Tele) , Diagonal field of view: 115.1° to 36.3° (Wide-Tele); Zoom Speed: Approx. 2 s (optical lens, wide-tele); Working Distance: 10 mm to 1500 mm (wide-tele); Aperture Range: F1.6 to F2.7; Focal Length: 2.8 mm to 12 mm, 4× optical zoom; Image Enhancement: 3D DNR, EIS, Regional Exposure, Regional Focus; Sub-Stream: 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (704 × 480, 640 × 480, 352 × 240); Max. Resolution: 2560 × 1440; Main Stream: 50Hz: 25fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 24fps (2560 × 1440), 30fps(2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720); Third Stream: 50Hz: 25fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (1280 × 720, 704 × 480, 640 × 480, 352 × 240); Network Storage: Built-in memory card slot, support microSD/SDHC/SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR; Protocols: IPv4/IPv6, HTTP, HTTPS, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour; API: ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK; Simultaneous Live View: Up to 20 channels; User/Host: Up to 32 users,3 levels: Administrator, Operator and User; Client: iVMS-4200, Hik-Central, Hik-Connect; Web Browser: IE 8 to 11,Chrome 31.0+, Firefox 30.0+, Edge 16.16299+; Security Measures: User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering; Alarm Linkage: Alarm actions, such as Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.; Audio Input: 1-ch audio input (mic in/line in) , 1 built-in microphone; Audio Output: 1-ch audio output; Network Interface: 1 RJ45 10 M/100 M Ethernet, PoE; H.264+: Yes; H.265+: Yes; H.264 Type: Baseline Profile/Main Profile/High Profile; Video Compression: Main Stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third Stream: H.265/H.264/MJPEG; Video Bitrate: 32 Kbps to 16384 Kbps; Audio Compression: G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM; Audio Bitrate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 192 Kbps(MP2L2); SVC: Yes; Image Sensor: 1/3″ progressive scan CMOS; Min. Illumination: Color: 0.005 Lux @(F1.6, AGC ON),B/W: 0.001 Lux @(F1.6, AGC ON),0 Lux with IR; White Balance: Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp; Gain: Auto/Manual; Shutter Time: 50Hz: 1/1 s to 1/30,000 s,60Hz: 1/1 s to 1/30,000 s; Day & Night: IR cut filter; Digital Zoom: 16×; Privacy Mask: 24 programmable privacy masks; Focus Mode: Auto/Semi-automatic/Manual; WDR: 120 dB WDR; IR Distance: 20 m; Smart IR: Yes; Movement Range (Pan): 0° to 355°; Pan Speed: Configurable, from 0.1°/s to 100°/s, ,Preset speed: 100°/s; Movement Range (Tilt): From 0° to 90°; Tilt Speed: Configurable, from 0.1°/s to 100°/s,Preset Speed: 100°/s; Proportional Zoom: Yes; Presets: 300; Power-off Memory: Yes; Basic Event Detection: Motion Detection, Video Tampering Detection, Exception; Smart Detection: Face detection, intrusion detection, line crossing detection, region entrance detection, region exiting detection, object removal detection, unattended baggage detection, audio exception detection; Smart Record: ANR (Automatic Network Replenishment), Dual-VCA; ROI: Main stream, sub-stream, and third stream respectively support four fixed areas.; Material: Aluminum alloy, PC, PC+ABS; Dimensions: Φ 130.7 mm × 101.7 mm (Φ 5.15″ × 4.00″); : Approx. 0.53 kg (1.17 lb); Protection Level: IP66 standard, IK 10, surge protection, ±2kV Line to Gnd, ±1kV Line to Line, IEC61000-4-5; Power: 12 VDC, 1.5 A (Max. 10.9 W, including Max. 4.2 W for IR)
PoE (802.3af), 36 to 57 VDC, 0.35 A (Max. 12.2 W, including max. 4.2 W for IR); Working Temperature: -20°C to 60°C (-4°F to 140°F); Working Humidity: ≤ 90%
