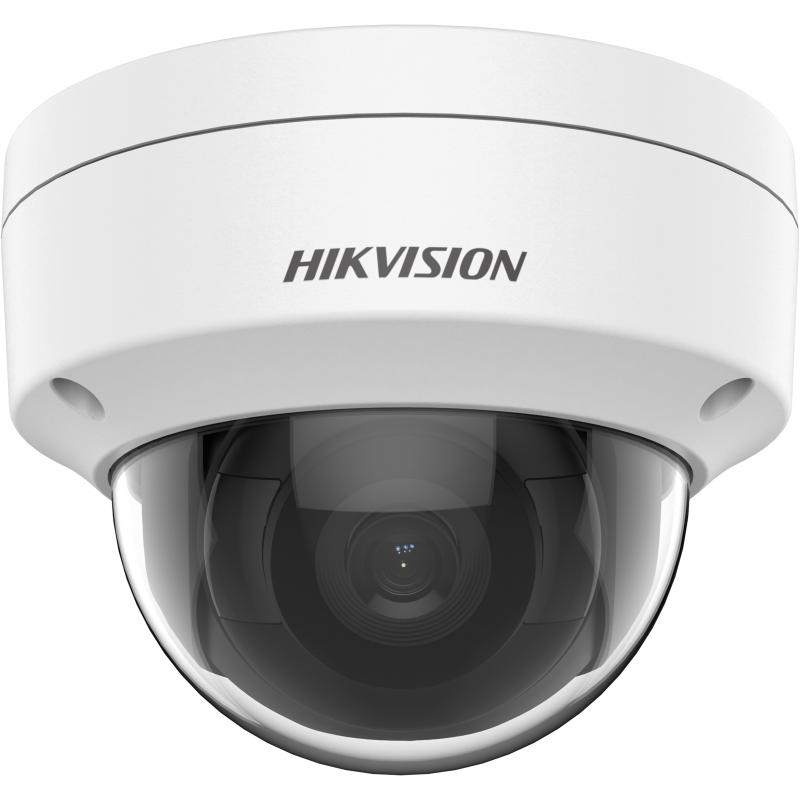

Hikvision 2 MP Fixed Dome Network Camera

Specifications

Image Sensor: 1/2.7″ Progressive Scan CMOS; Max. Resolution: 1920 × 1080; Min. Illumination: Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR; Shutter Time: 1/3 s to 1/100, 000 s; Day & Night: IR cut filter; Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 75°; Focal Length & FOV: 2.8 mm, horizontal FOV 112.1°, vertical FOV 60.0°, diagonal FOV 132.2°
4 mm, horizontal FOV 90.2°, vertical FOV 48.6°, diagonal FOV 107.6°; Lens Mount: M12; Focus: Fixed; Aperture: F2.0; Supplement Light Type: IR; Supplement Light Range: Up to 30 m; IR Wavelength: 850 nm; Main Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720); Sub-Stream: 50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360); Video Compression: Main Stream: H.265/H.264/H.264+/H.265+
Sub-Stream: H.265/H.264/MJPEG; Video Bit Rate: 32 Kbps to 8 Mbps; H.264 Type: Baseline Profile/Main Profile/High Profile; H.265 Type: Main Profile; Region of Interest (ROI): 1 fixed region for main stream; Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS; Simultaneous Live View: Up to 6 channels; API: Open Network Video Interface, ISAPI; User/Host: Up to 32 users. 3 levels: administrator, operator and user; Client: iVMS-4200, Hik-Connect; Web Browser: Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+; Image Settings: Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser.; Day/Night Switch: Day, Night, Auto, Schedule; Wide Dynamic Range (WDR): Digital WDR; Image Enhancement: BLC, 3D DNR; Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port; Basic Event: Motion detection, video tampering alarm, exception; Linkage: Upload to FTP, notify surveillance center, send email; Power: 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W; Material: Metal & Plastic; Dimension: Ø110 mm × 82.4 mm (Ø4.4″ × 3.2″); Package Dimension: 134 mm × 134 mm × 108 mm (5.3″ × 5.3″ × 4.3″); : Approx. 410 g (0.9 lb.); With Package Weight: Approx. 610 g (1.3 lb.); Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing); Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing); Language: English, Ukrainian; General Function: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter; EMC: FCC (47 CFR Part 15, Subpart B)
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014)
RCM (AS/NZS CISPR 32: 2015)
IC (ICES-003: Issue 7)
KC (KN32: 2015, KN35: 2015); Safety: UL (UL 62368-1)
CB (IEC 62368-1: 2014+A11)
CE-LVD (EN 62368-1: 2014/A11: 2017)
BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005); Environment: CE-RoHS (2011/65/EU)
WEEE (2012/19/EU)
Reach (Regulation (EC) No 1907/2006); Protection: IP67 (IEC 60529-2013)
IK10 (IEC 62262:2002)
