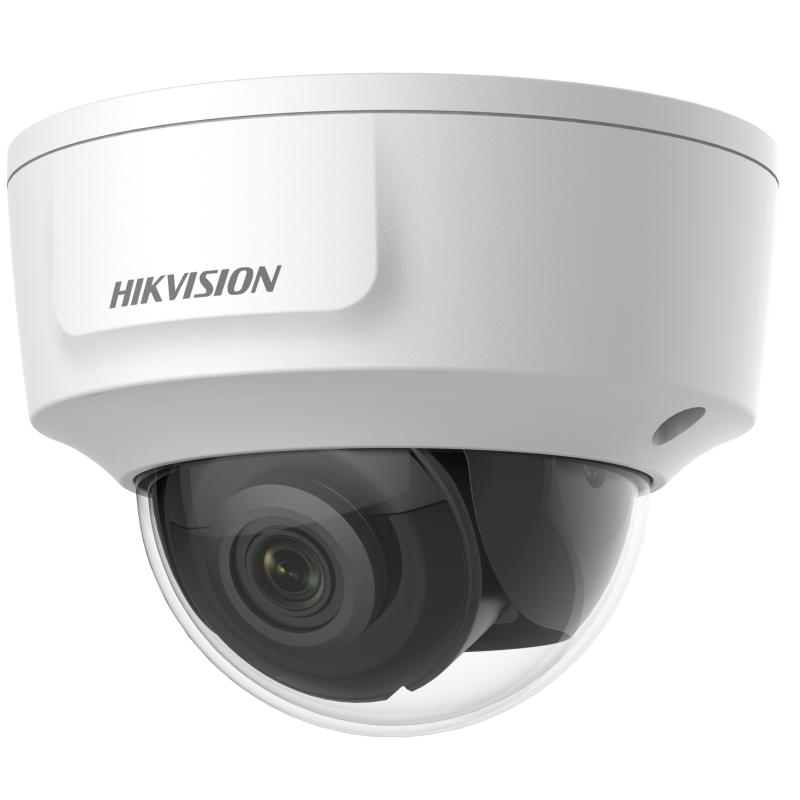

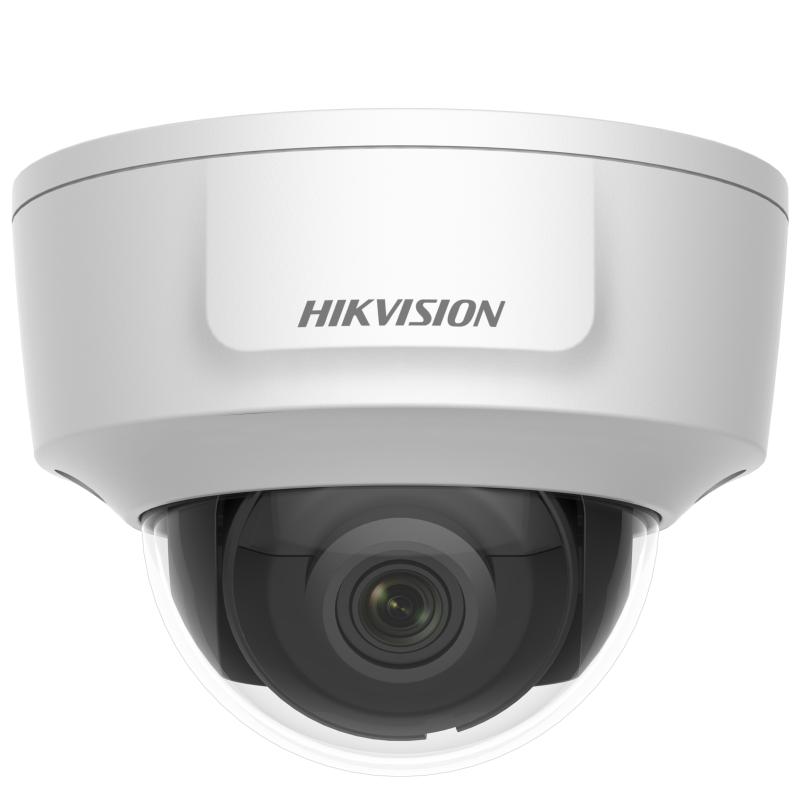

Hikvision 2 MP HDMI Fixed Dome Network Camera

Specifications

Image Sensor: 1/2.8″ Progressive Scan CMOS; Max. Resolution: 1920 × 1080; Min. Illumination: Color: 0.002 Lux @ (F1.4, AGC ON),B/W: 0 Lux with IR; Shutter Time: 1/3 s to 1/100,000 s; Day & Night: IR cut filter; Angle Adjustment: Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°; Focal Length & FOV: 2.8 mm, horizontal FOV: 106°, vertical FOV: 52°, diagonal FOV: 129°; Lens Type: Fixed focal lens, 2.8 mm; Aperture: F1.4; Iris Type: Fixed; Lens Mount: M12; DORI: 2.8 mm, D: 44 m, O: 17 m, R: 8 m, I: 4 m; Supplement Light Type: IR; Supplement Light Range: Up to 30 m; Smart Supplement Light: Yes; IR Wavelength: 850 nm; Main Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720); Sub-Stream: 50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360); Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360),
*Third stream is supported under certain settings.; Video Compression: Main stream: H.265/H.264/H.264+/H.265+,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264,
*Third stream is supported under certain settings.; Video Bit Rate: 32 Kbps to 8 Mbps; H.264 Type: Baseline Profile,Main Profile,High Profile; H.265 Type: Main Profile; Bit Rate Control: CBR,VBR; Scalable Video Coding (SVC): H.264 and H.265 encoding; Region of Interest (ROI): 1 fixed region for main stream and sub-stream; Audio Type: Mono sound; Environment Noise Filtering: Yes; Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz; Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC; Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC); Smooth Streaming: Yes; Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.3, host authentication (MAC address); Simultaneous Live View: Up to 6 channels; API: ISAPI,SDK,ISUP,ONVIF (Profile S, Profile G, Profile T); Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTCP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP; User/Host: Up to 32 users
3 user levels: administrator, operator, and user; Network Storage: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.; Client: iVMS-4200,Hik-Connect,Hik-Central; Web Browser: Plug-in required live view: IE 11,
Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+,
Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+; Image Parameters Switch: Yes; Wide Dynamic Range (WDR): 120 dB; SNR: ≥ 52 dB; Privacy Mask: 4 programmable polygon privacy masks; Day/Night Switch: Day,Night,Auto,Schedule; Image Enhancement: BLC,HLC,3D DNR; Image Settings: Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser; Audio: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium; Alarm: 1 input, 1 output (max. 12 VDC, 30 mA); Video Output: 1 type D HDMI interface (female plug) (720p@50 fps/60 fps, 1080p@25 fps/30 fps/50 fps/60 fps, HDMI version 1.4); On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB; Reset Key: Yes; Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port; Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception; Smart Event: scene change detection; Linkage: Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,trigger alarm output,audible warning; Face Capture: Yes; Perimeter Protection: Line crossing detection, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle); Power: 12 VDC ± 25%, 0.6 A, max. 7.2 W,reverse polarity protection,Ø5.5 mm coaxial power plug,or two-core terminal block,
PoE: IEEE 802.3af, Class 3, max. 8.5 W; Material: Metal; Dimension: Ø119 mm × 90 mm (Ø4.7″ × 3.5″); Package Dimension: 150 mm × 150 mm × 141 mm (5.9″ × 5.9″ × 5.6″); : Approx. 440 g (0.97 lb.); With Package Weight: Approx. 720 g (1.59 lb.); Storage Conditions: -10 °C to 40 °C (-14 °F to 104 °F). Humidity 95% or less (non-condensing); Startup and Operating Conditions: -10 °C to 40 °C (-14 °F to 104 °F). Humidity 95% or less (non-condensing); General Function: Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding; Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian; EMC: CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015; Safety: CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
LOA: IEC/EN 60950-1; Environment: CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006; Protection: IK10: IEC 62262:2002
