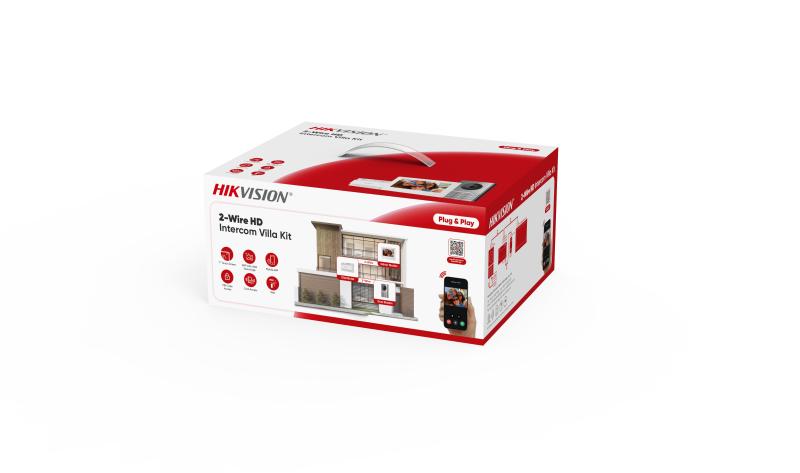

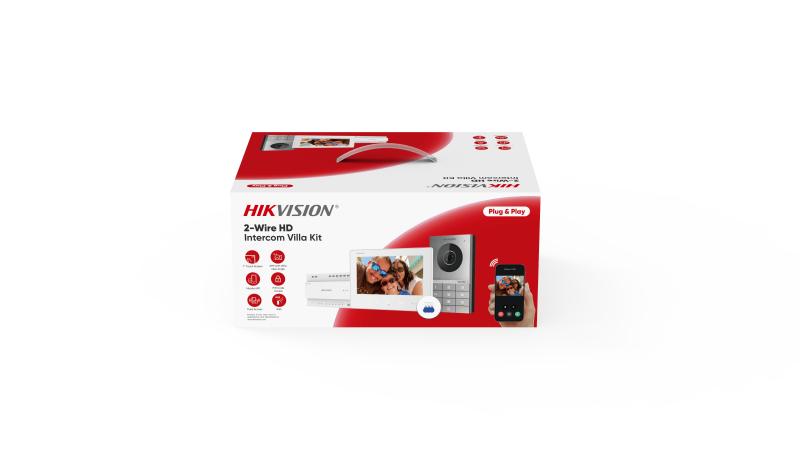

Hikvision 2-wire HD villa kit DS-KIS706EY

Specifications

Processor: Embedded Processor; ROM: 4 GB; RAM: 256 MB; Operation system: Embedded Linux operation system; Screen size: NA; Resolution: NA; Type: NA; Operation method: NA; Supplement light: Supplement light Low illumination, IR supplement lights; Resolution: 2MP; Lens: 1; Wide dynamic range (WDR): Support; FOV: Horizontal: 135°, Vertical: 85°; Video compression standard: H.264; Audio input: Built-in omnidirectional microphone; Audio output: Built-in loudspeaker; Volume adjustment: Adjustable; Audio compression standard: G.711 U, G.726; Audio compression bitrate: 64 Kps; Audio quality: Noise suppression and echo cancellation; Linked indoor station capacity: Max.400; Sub door station capacity: 16; Wireless network: 10/100 Mbps self-adaptive through 2-wire interface; Wi-Fi: Only AP mode for configuration; RS-485: 1; Lock control: 2 (1 relay, max to 30 VDC, 2 A；1 DC pulse，20V 4A impulsive，300 mA holding current，30 ohm max ); Exit button: 1; Door contact input: 1; Alarm input: 2（supports Exit button or Door contact input）; Power supply input: 12VDC input; TAMPER: 1; Debugging port: 1; Two-Wire: 1; DIP Switch: 6 decimal DIP switch; Button: 12; Indicator: 4 LED lights(Opening door、Calling、Intercom、In use）; Power supply: 48V，Powered by distributor DS-KAD7060EY or 12VDC; Power consumption: ≤ 6 W; Working temperature: -40° C to 60° C (-22° F to 140° F); Working humidity: 10% to 90%; Application environment: Outdoor; Dimension (W × H × D): 165mm × 95 mm × 25 mm(6.5″ × 3.7″ × 0.98″); Installation: Surface mounting; Protective level: IP65 IK08; Language: English, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch , Spanish, Romanian, Estonian, Croatian, Slovenian, Serbian, Ukrainian, Portuguese; Power interface: 48VDC; Two-wire interface: 6(“IN””OUT” for casacading, CH1-CH4 for Door station and Indoor station); Power supply: 48VDC; Power consumption: CH1＜30W，CH2＜30W，CH3＜30W，CH4＜30W；MAX Total 30W; Working temperature: -10 °C to 5 °C (14 °F to 131 °F); Working humidity: 10% to 90% (no-condensing); Dimension (W × H × D): 143.7 mm × 92.4 mm × 65.9 mm (5.66″ × 3.64″ × 2.59″); Installation: DIN rail installation; Indicators: 6 Signal indicators;
1 Power indicator
