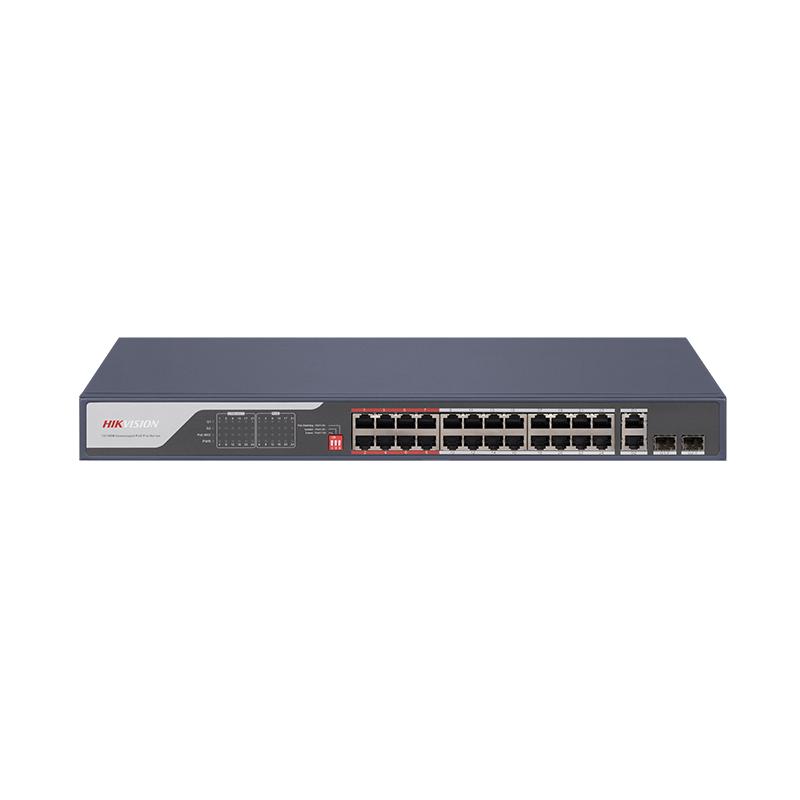

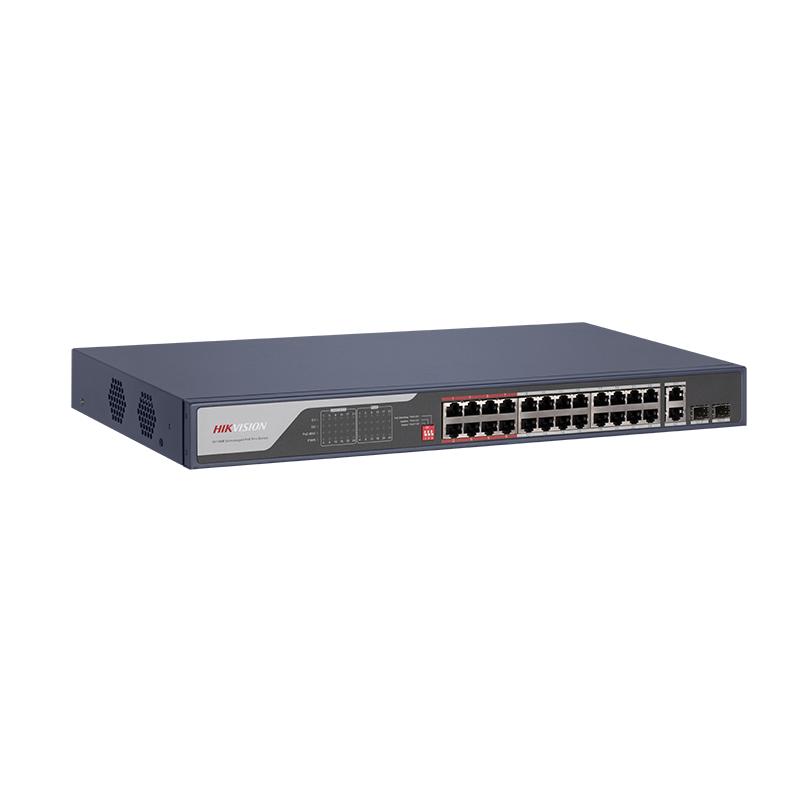

Hikvision 24 Port Fast Ethernet Unmanaged POE Switch DS-3E0326P-E(C)

Specifications

Shell: Metal material; Net Weight: 2.785 kg (6.14 lb); Gross Weight: 3.54 kg (7.80 lb); Dimensions (W × H × D): 440.0 mm × 44.0 mm × 220.8 mm (17.3” × 1.7” × 8.7”); Operating Temperature: 0 °C to 45 °C (32 °F to 113 °F); Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F); Operating Humidity: 5% to 95% (no condensation); Relative Humidity: 5% to 95% (no condensation); Power Supply: 100~240 VAC, 50/60 Hz, Max. 6.5 A; Max. Power Consumption: 400 W; Power Consumption in Idle: 30 W; Installation Mode: Rack (equipped with mounting ears); Surge Protection: 6 KV; Ports: 24 × 10/100 Mbps PoE port,2 × Gigabit combo; MAC Address Table: 16 K; Switching Capacity: 8.80 Gbps; Packet Forwarding Rate: 6.55 Mpps; Internal Cache: 4 Mbits; PoE Standard: IEEE 802.3af;IEEE 802.3at; PoE Power Pin: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-); PoE Port: PoE: Ports 1 to 24; Max. Port Power: 30 W; PoE Power Budget: 370 W; Long Range: Ports 17 to 24: up to 300 m
Long range performance may vary depend on camera model or cable condition.; Port Isolation: Ports 1 to 24: port isolation mode to improve network security.
Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.; PoE Watchdog: Ports 1  to 24: auto detect and restart the cameras that do not respond.; VIP Port: Ports 1 to 8: data on VIP ports is preferentially forwarded when bandwidth resources are insufficient.; EMC: FCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015); Safety: UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017); Chemistry: CE-RoHS (2011/65/EU)
