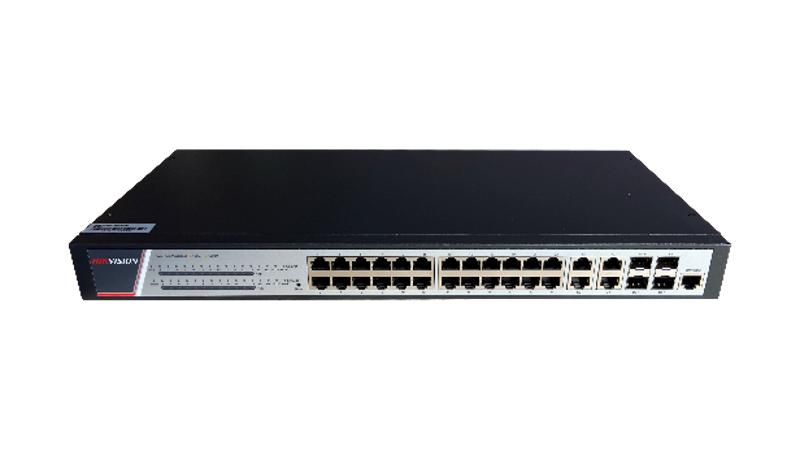

Hikvision 24 Port Gigabit Full Managed POE Switch DS-3E2528P

Specifications

Net Weight: 3.1 kg (6.83 lb); Dimensions (W × H × D): 440.00 mm × 44.00 mm × 210.00 mm (17.32” × 1.73” × 8.27”); Operating Temperature: -10 °C to 50 °C (14 °F to 122 °F); Operating Humidity: 10% to 90% (no condensation); Power Supply: 100-240 VAC, 50/60 Hz; Power Consumption: 17 W; MAC Address Table: 8 K; Ports: 24 × 1 Gigabit PoE port,4 × 1 Gigabit combo; Switching Capacity: Whole-Device Performance: 336 Gbps
Port Performance: 336 Gbps; Packet Forwarding Rate: Whole-Device Performance: 51 Mpps
Port Performance: 51 Mpps; PoE Standard: IEEE 802.3af,IEEE 802.3at; PoE Power Pin: 1/2 (+), 3/6 (-); PoE Power Budget: 370 W; VLAN: Support IEEE 802.1Q (VLAN), 4096 VLAN IDs
Support GVRP
Support QinQ
Support VLAN based on MAC/protocol/IP subnet/policy/port
Support Private VLAN
Support 1:1 and N:1 VLAN mapping functions; QoS: Support Diff-Serv QoS
Support 802.1p/DSCP priority mapping
Support queue scheduling including SP, WRR, WFQ, SP+WRR, SP+WFQ
Support priority marking and remarking
Support traffic shaping
Support congestion avoidance, Tail-Drop and WRED
Support 802.1p, TOS, DSCP, and EXP priority mapping
Support port/flow-based rate limiting; Management Method: Support Console, Telnet, SSH
Support web, http, https
Support FTP, TFTP, Xmodem, SFTP
Support SNMP V1/V2c/V3
Support RMON
Support NTP; Multicast: Support IGMP v1/v2/v3 Snooping
Support IGMP V1/V2/V3
Support MLD Snooping v1/v2
Support MLD v1/v2; Security: Support AAA,TACACS+ Radius authentication
Support 802.1X authentication, MAC authentication, MAC bypass authentication
Support to prevent DOS, ARP attack function, ICMP anti attack
Support binding of IP, MAC, port and VLAN
Support MAC authentication
Support MAC address filtering
Support broadcast/multicast/unknown-unicast storm control; EMC: FCC (ANSI C63.4, 47 CFR PART 15B); CE-EMC/RCM (EN 55032: 2015+A11:2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020); IC (ICES-003: Issue 24); Safety: UL (UL 62368-1); CB/RCM (IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2034); Chemistry: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2023)
