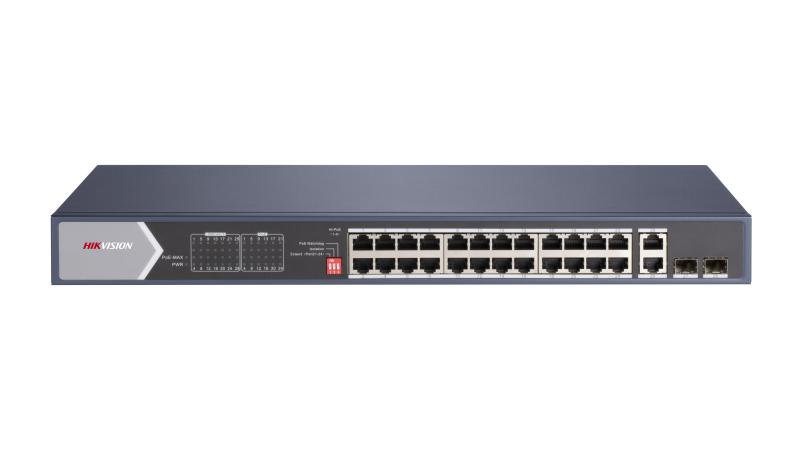

Hikvision 24 Port Gigabit Unmanaged POE Switch DS-3E0528HP-E

Specifications

Shell: Metal material; Net Weight: 2.98 kg (6.57 lb); Dimensions (W × H × D): 440.0 mm × 44.0 mm × 220.8 mm (17.32” × 1.73” × 8.69”); Operating Temperature: 0 °C to 45 °C (32 °F to 113 °F); Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F); Operating Humidity: 5% to 95% (no condensation); Relative Humidity: 5% to 95% (no condensation); Power Supply: 100~240 VAC, 50/60 Hz, Max. 6.5 A; Max. Power Consumption: 400 W; Power Consumption in Idle: 30 W; Installation Mode: Rack (equipped with mounting ears); Surge Protection: 6 KV; Ports: 24 × Gigabit PoE port,2 × Gigabit RJ45 port,2 × Gigabit fiber optical port; MAC Address Table: 8 K; Switching Capacity: 56 Gbps; Packet Forwarding Rate: 41.664 Mpps; Internal Cache: 4.1Mbits; PoE Standard: IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt; PoE Port: Hi-PoE: Ports 1 to 4
PoE: Ports 1 to24; PoE Power Pin: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-); Max. Port Power: Ports 1 to 4: 90 W Ports 5 to 24: 30 W; PoE Power Budget: 370 W; Long Range: Ports 21 to 24: up to 300 m.
Long range performance may vary depend on camera model or cable condition.; Port Isolation: Ports 1 to 24: port isolation mode to improve network security.
Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.; PoE Watchdog: Ports 1  to 24: auto detect and restart the cameras that do not respond.; EMC: FCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015); Safety: UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017); Chemistry: CE-RoHS (2011/65/EU)
