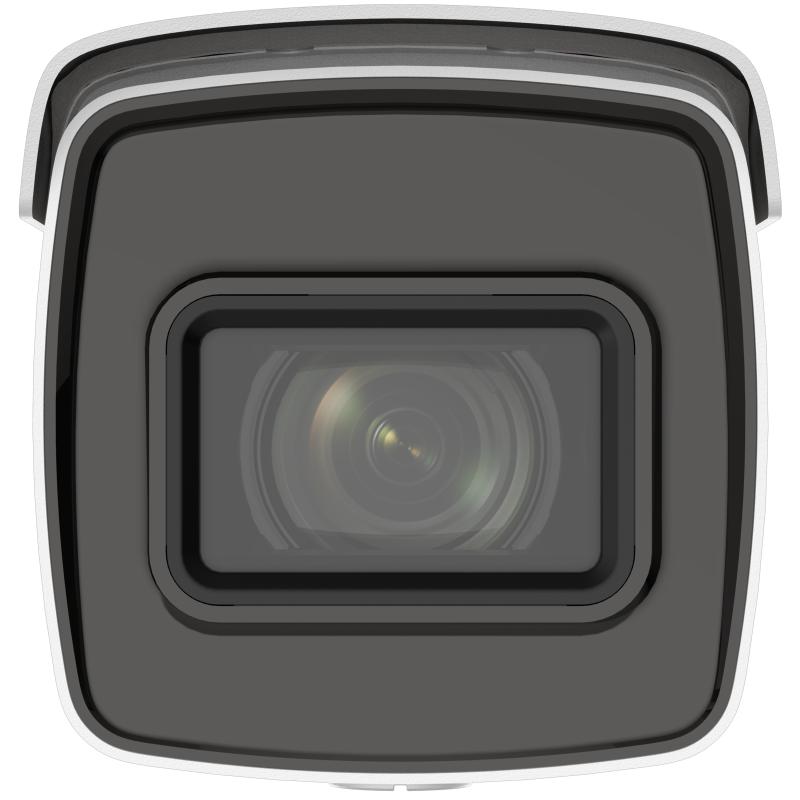

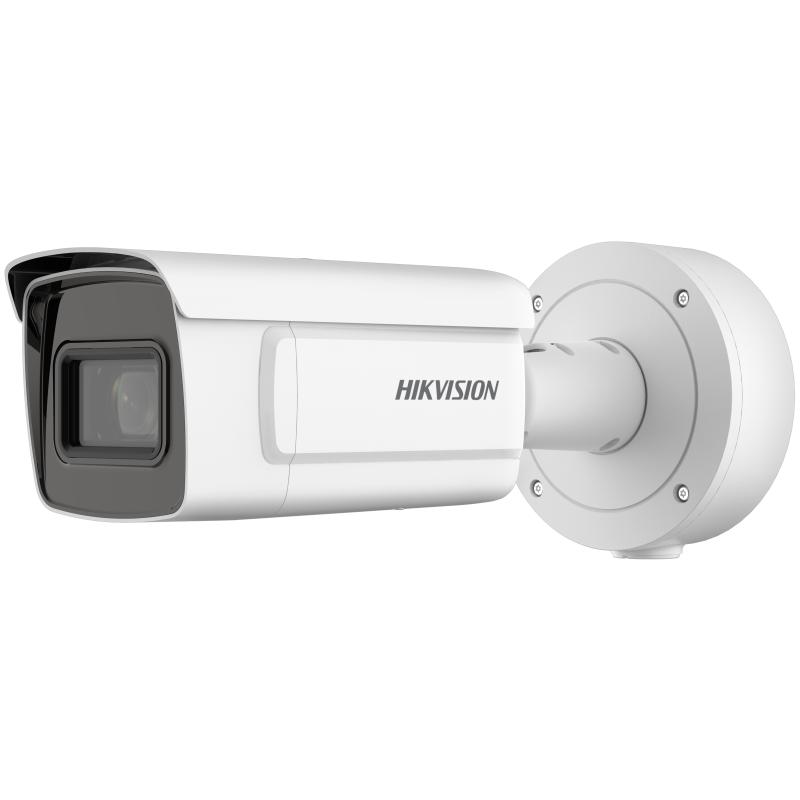

Hikvision 2MP AcuSense Moto Varifocal Bullet Camera

Specifications

Image Sensor: 1/2.8″ Progressive Scan CMOS; Max. Resolution: 1920 × 1080; Min. Illumination: Color: 0.002 Lux @ (F1.4, AGC ON),0 Lux with IR; Shutter Time: 1 s to 1/30,000 s; Day & Night: IR cut filter; Angle Adjustment: Pan: 0° to 355°,tilt: 0° to 90°,rotate: 0° to 360°; Lens Type: Varifocal lens, motorized lens, 4.7 to 71 mm; Focal Length & FOV: 4.7 to 71 mm, horizontal FOV: 57.7° to 3.66°, vertical FOV: 33.2° to 2.75°, diagonal FOV: 65.2° to 4.58°; Lens Mount: Integrated; Iris Type: DC iris; Aperture: F1.6; Min. Focus Distance: W: 0.7 m (2.3 ft)
T: 20 m (65.6 ft); Depth of Field: 2.6 m to ∞; DORI: Wide: D: 73.5 m (247 ft), O: 29.2 m (95.8 ft), R: 14.7 m (48.2 ft), I: 7.4 m (24.3 ft)
Tele: D: 1517.2 m (4977.7 ft), O: 602.1 m (1975 ft), R: 303.4 m (994.1 ft), I: 151.7 m (497.7 ft); Supplement Light Type: IR; Supplement Light Range: Up to 150 m; Smart Supplement Light: Yes; IR Wavelength: 850 nm; Main Stream: 50 Hz: up to 50 fps (1920 × 1080, 1280 × 720)
60 Hz: up to 60 fps (1920 × 1080, 1280 × 720)
*High frame rate is supported under certain settings.; Sub-Stream: 50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360); Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.; Fourth Stream: 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
*Fourth stream is supported under certain settings.; Video Bit Rate: 32 Kbps to 8 Mbps; Video Compression: Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Fourth stream: H.265/H.264/MJPEG
*Third stream and fourth stream are supported under certain settings.; H.264 Type: Baseline Profile/Main Profile/High Profile; H.265 Type: Main Profile; Bit Rate Control: CBR/VBR; Scalable Video Coding (SVC): H.264 and H.265 encoding; Region of Interest (ROI): 5 fixed regions for main stream and sub-stream; Target Cropping: Yes; Audio Type: Mono sound; Environment Noise Filtering: Yes; Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz; Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC; Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC); Simultaneous Live View: Up to 6 channels; API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP; Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, ARP, SNMP, SRTP, WebSocket, WebSockets; User/Host: Up to 32 users. 3 user levels: administrator, operator and user; Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2, host authentication (MAC address); Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.; Client: iVMS-4200, Hik-Connect, Hik-Central; Web Browser: Plug-in required live view: IE 10, IE 11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+; Wide Dynamic Range (WDR): 120 dB; SNR: ≥ 52 dB; Image Enhancement: BLC, HLC, 3D DNR; Privacy Mask: 8 programmable polygon privacy masks; Day/Night Switch: Day, Night, Auto, Schedule; Image Parameters Switch: Yes; Image Settings: Saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser; Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port; On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB; Audio: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium; Alarm: 2 inputs, 2 outputs (max. 24 VDC, 1 A); Reset Key: Yes; Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception; Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection,scene change detection,audio exception detection; Linkage: Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,audible warning; Face Capture: Yes; Power: 12 VDC ± 25%, 0.9 A, max. 10.8 W,
24 VAC ± 20%, 0.75 A, max. 10.8 W,
PoE: 802.3af, Class 3, 36 V to 57 V, 0.36 A to 0.23 A, max. 12.9 W,
two-core terminal block; Material: Front cover: metal, body: metal, bracket: metal; Dimension: 144 mm × 140 mm × 349.2 mm (5.7″ × 5.5″ × 13.7″); Package Dimension: 405 mm × 190 mm × 180 mm (15.9″ × 7.5″ × 7.1″); : Approx. 1835 g (4.1 lb.); With Package Weight: Approx. 2875 g (6.3 lb.); Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing); Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing); Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian; General Function: Heartbeat,anti-banding,mirror,flash log,password reset via email,pixel counter; EMC: FCC: 47 CFR Part 15, Subpart B,
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
KC: KN32: 2015, KN35: 2015; Safety: UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/ IEC 60950-1: 2005; Environment: CE-RoHS: 2011/65/EU; Protection: IP67: IEC 60529-2013,IK10: IEC 62262:2002
