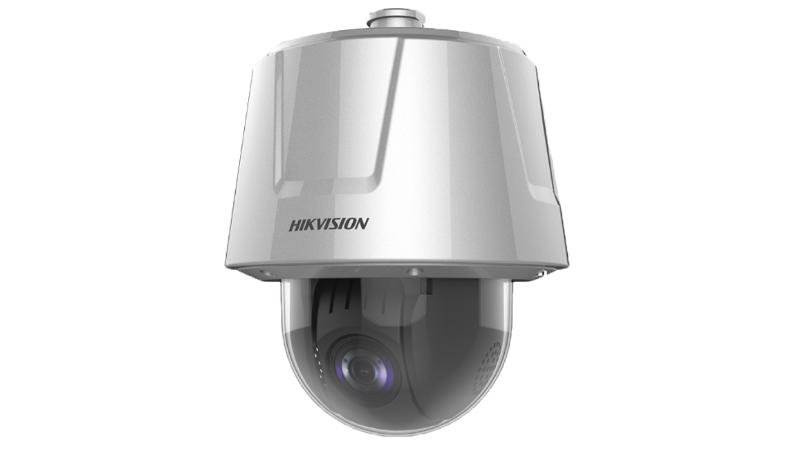

Hikvision 316L 2MP 32x Anti-corrosion Speed Dome

Specifications

Image Sensor: 1/1.8＂ progressive scan CMOS; Max. Resolution: 1920 × 1080; Min. Illumination: Color: 0.002 Lux @ (F1.5, AGC ON), B/W: 0.0002 Lux @ (F1.5, AGC ON); Shutter Speed: 1/1s ~ 1/30,000s; Day & Night: ICR; Zoom: 32 × optical, 16 × digital; Slow Shutter: yes; Focal Length: 5.9mm to 188.8mm, 32× Optical; FOV: Horizontal field of view: 59.8° to 3.3° (wide-tele),
Vertical field of view: 33.7° to 1.9° (wide-tele),
Diagonal field of view: 65° to 3.8° (wide-tele); Focus: semi-auto,manual,auto; Aperture: F1.5; Zoom Speed: approx. 4.5 s; Movement Range (Pan): 360°; Movement Range (Tilt): -15° to 90° (auto flip); Pan Speed: pan speed: configurable from 0.1° to 300°/s; preset speed: 540°/s; Tilt Speed: tilt speed: configurable from 0.1° to 240°/s, preset speed 400°/s; Proportional Pan: yes; Presets: 300; Preset Freezing: yes; Patrol Scan: 8 patrols, up to 32 presets for each patrol; Pattern Scan: 4 pattern scans, record time over 10 minutes for each scan; Park Action: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan; 3D Positioning: yes; PTZ Status Display: yes; Scheduled Task: Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output; Power-off Memory: yes; Main Stream: 50Hz:25fps(1920×1080,1280×960,1280×720)；
60Hz:30fps(1920×1080,1280×960,1280×720)；; Sub-Stream: 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288)
60Hz: 30fps (704 × 480, 640 × 480, 352 × 240); Third Stream: 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240); Video Compression: H.265, H.264, MJPEG; Video Bit Rate: 32 Kbps ~ 16384 Kbps; H.264 Type: Baseline profile,Main profile,High profile; H.265 Type: main profile; Scalable Video Coding (SVC): yes; Region of Interest (ROI): fixed region; Audio Compression: G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM; Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 192 Kbps(MP2L2); Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour; Simultaneous Live View: Up to 20 channels; API: Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK; Smooth Streaming: yes; User/Host: Up to 32 users. 3 levels: Administrator, Operator and User; Security: User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering; Network Storage: NAS (NFS, SMB/CIFS),auto network replenishment (ANR); Client: iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect; Web Browser: IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+; Day/Night Switch: day, night, auto, scheduled-switch; Wide Dynamic Range (WDR): 140 dB WDR; SNR: ≥52dB; Defog: yes; Image Enhancement: HLC/BLC/3D DNR/EIS/Regional Exposure/Regional Focus; Privacy Mask: up to 24 masks,polygon region, mosaic mask, mask color configurable; Ethernet Interface: RJ45, self-adaptive 10M/100M Ethernet port; On-board Storage: Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR; Audio: 1-ch audio input and 1-ch audio output; Alarm: 7-ch alarm input and 2-ch alarm output; RS-485: HIKVISION, Pelco-P, Pelco-D, self-adaptive; Basic Event: Motion detection,video tampering alarm,alarm input and output,exception (IP address conflict, HDD full, illegal login, HDD error, network disconnected, Abnormal Reboot); Smart Event: Motion detection,video tampering alarm,alarm input and output,exception (IP address conflict, HDD full, illegal login, HDD error, network disconnected, Abnormal Reboot); Linkage: Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.; Smart Linkage: manual tracking, event tracking, auto-tracking; Face Capture: Support detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face.; Road Traffic: Support vehicle detection (license plate number,vehicle model, and vehicle color recognition); Power: 24 VAC Hi-PoE; Operating Condition: Temperature: -40°C to 70°C (-40°F to 158°F)，Humidity: ≤ 95%; General Function: mirror, password protection, watermark, IP address filter; Language: 32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil); EMC: FCC SDoC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC VoC (ICES-003: Issue 6, 2019);
KC (KN 32: 2015, KN 35: 2015); Safety: UL (UL 62368-1)
CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
CE-LVD (EN 62368-1:2014+A11:2017),
BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);
LOA (SANS IEC60950-1); Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006); Protection: Lightning Protection, Surge Protection and Voltage Transient Protection,±6kV Line to Gnd, ±3kV Line to Line,IEC61000-4-5||IP67 Standard||IK10
