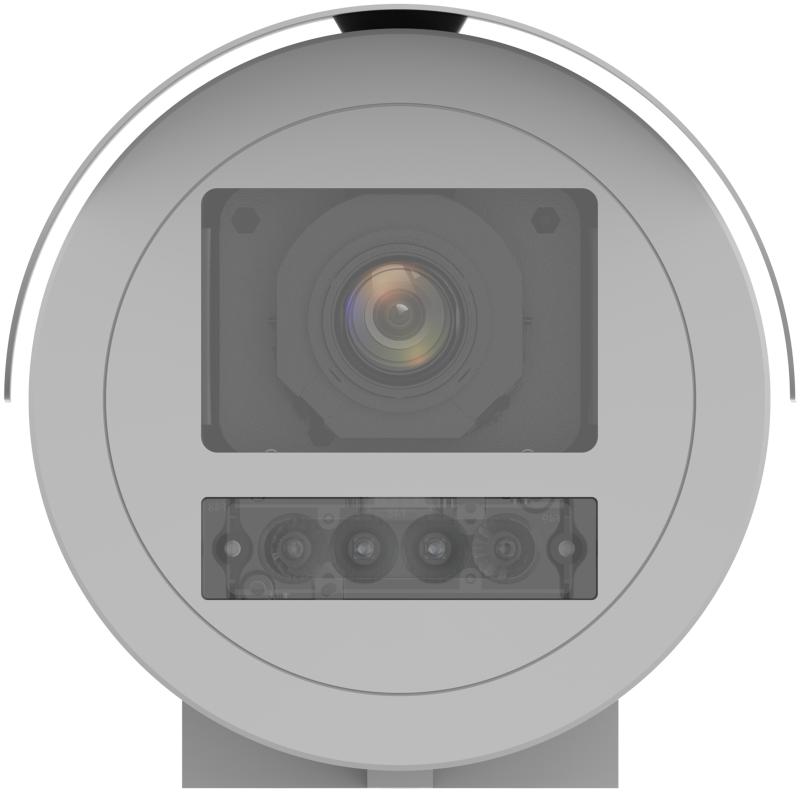

Hikvision 316L 2MP Anti-Corrosion Vari-focal Bullet

Specifications

Image Sensor: 1/1.8″ Progressive Scan CMOS; Max. Resolution: 1920 × 1080; Min. Illumination: Color: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR; Shutter Time: 1 s to 1/100,000 s; Day & Night: IR cut filter
Blue glass module to reduce ghost phenomenon; Focal Length & FOV: 2.8 to 12 mm, horizontal FOV 100.8° to 40.2°, vertical FOV 53.3° to 22.5°, diagnol FOV 122.3° to 46.2°
8 to 32 mm, horizontal FOV 40.7° to 14.6°, vertical FOV 22.3° to 8.3°, diagnol FOV 47.4° to 16.7°; Focus: Auto, semi-auto, manual; Aperture: 2.8 to 12 mm: F1.38 to F2.5
8 to 32 mm: F1.7; DORI: Wide:
2.8 to 12 mm: D: 60 m, O: 23.8 m, R: 12 m, I: 6 m
8 to 32 mm: 150.3 m, O: 59.7 m, R: 30.1 m, I: 15 m
Tele:
2.8 to 12 mm: D: 149 m, O: 59.1 m, R: 29.8 m, I: 14.9 m
8 to 32 mm: D: 400 m, O: 158.7 m, R: 80 m, I: 40 m; Supplement Light Type: IR; Supplement Light Range: 2.8 to 12 mm: 60 m
8 to 32 mm: 100 m; Smart Supplement Light: Yes; IR Wavelength: 850 nm; Main Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720); Sub-Stream: 50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480); Third Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480); Fourth Stream: 50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480); Fifth Stream: 50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480); Video Compression: Main stream: H.265+/H.265/H.264+/H.264
Sub-stream/Fourth stream/Fifth stream: H.265/H.264/MJPEG
Third stream: H.265/H.264; Video Bit Rate: 32 Kbps to 8 Mbps; H.264 Type: Baseline Profile/Main Profile/High Profile; H.265 Type: Main Profile; Bit Rate Control: CBR/VBR; Scalable Video Coding (SVC): H.265 and H.264 encoding; Region of Interest (ROI): 5 fixed regions for each stream; Target Cropping: Yes; Audio Type: Mono sound; Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3; Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)/8 to 320 Kbps (MP3); Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz; Environment Noise Filtering: Yes; Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets; Simultaneous Live View: Up to 20 channels; API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP; User/Host: Up to 32 users. 3 user levels: administrator, operator and user; Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2; Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.; Client: iVMS-4200, Hik-Connect, Hik-Central; Web Browser: Plug-in required live view: IE10, IE11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari12+
Local service: Chrome 57.0+, Firefox 52.0+; Image Parameters Switch: Yes; Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser; Day/Night Switch: Day, Night, Auto, Schedule, Alarm Trigger, Video Trigger; Wide Dynamic Range (WDR): 120 dB; SNR: ≥ 52 dB; Image Enhancement: BLC, HLC, Defog, 3D DNR; Picture Overlay: LOGO picture can be overlaid on video with 128 × 128 24bit bmp format; Image Stabilization: EIS; Ethernet Interface: 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port; On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB; Audio: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium; Alarm: 1 input, 1 output (max. 24 VDC, 1 A or max. 110 VAC, 500 mA); RS-485: Without -R: 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
-R: does not support; Reset Key: Yes; Wiegand: /P: 1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit, NEWG 72bit); Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, abnormal reboot, HDD full, HDD error), video quality diagnosis, vibration detection; Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle))
Scene change detection, audio exception detection, defocus detection; Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning; Road Traffic and Vehicle Detection: Blocklist and allowlist: up to 10,000 records
Captures vehicle that has no license plate
Support license plate recognition of motorcycles (only in checkpoint scenario)
Support vehicle attribute detection, including vehicle type, color, brand, etc. (City Street mode is recommended.); Metadata: Metadata of road traffic is supported.; Power: 12 VDC ± 20%, 1.8 A, max. 22 W, three-core terminal block

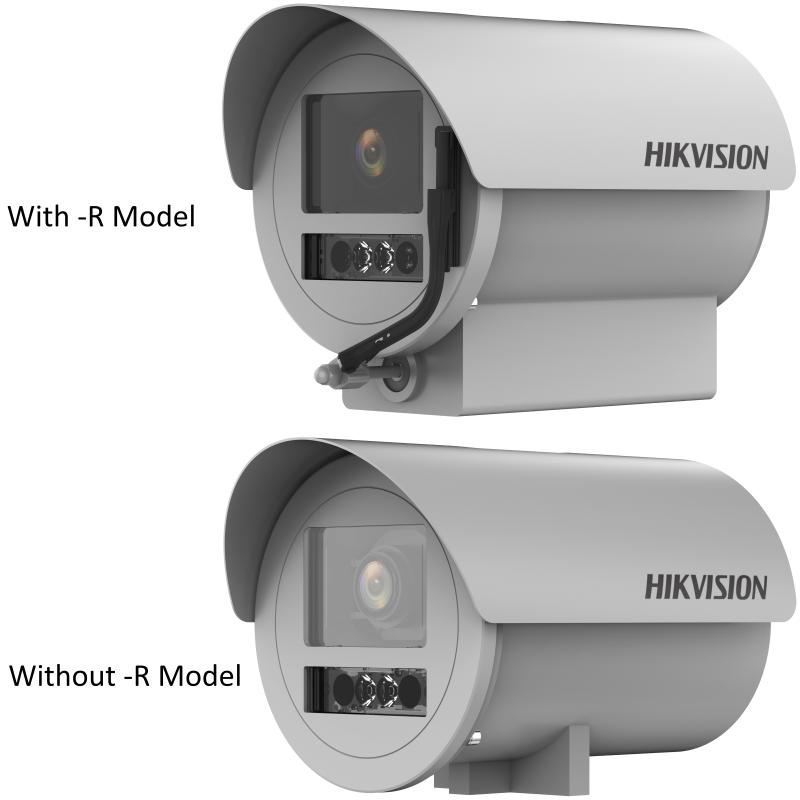

PoE: 802.3at, Type 2, Class 4, 42.5 V to 57 V), 0.5 A to 0. 4 A, max. 22 W; Material: 316L and anti-corrosion coating; Dimension: With -R: 240.9 mm × 145 mm × 166.6 mm (9.5″ × 5.7″ × 6.6″)Without -R: 224 mm × 145 mm × 143.5 mm (8.8″ × 5.7″ × 5.6″); Package Dimension: 477 mm × 235 mm × 302 mm (18.7″ × 9.3″ × 11.9″); : With -R: approx. 4915 g (10.8 lb.)
Without -R: approx. 3560 g (7.8 lb.); With Package Weight: With -R: approx. 5575 g (12.3 lb.)
Without -R: approx. 4560 g (10.1 lb.); Storage Conditions: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing); Startup and Operating Conditions: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing); Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian; General Function: Anti-banding, 5 streams, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter; Heater: Yes; Wiper: -R: Yes; EMC: FCC: 47 CFR Part 15, Subpart B
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EEN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014
RCM: AS/NZS CISPR 32: 2015
IC: ICES-003: Issue 7
KC: KN 32: 2015, KN 35: 2015; Safety: UL: UL 62368-1
CB: IEC 62368-1:2014+A11
CE-LVD: EN 62368-1:2014/A11:2017
BIS: IS 13252(Part 1):2010/ IEC 60950-1 : 2005
LOA: IEC/EN 60950-1; Environment: CE-RoHS: 2011/65/EU
WEEE: 2012/19/EU
Reach: Regulation (EC) No 1907/2006; Protection: IP67: IEC 60529-2013
IK10: IEC 62262: 2002 (without -R); Anti-Corrosion Protection: NEMA 4X: NEMA 250-2018
C5-M: 720H neutral salt spray, 480H water condensation;
Exterior environments: industrial areas with high humidity and aggressive atmosphere and coastal areas with high salinity;
Interior environments: buildings or areas with almost permanent condensation and with high pollution.
