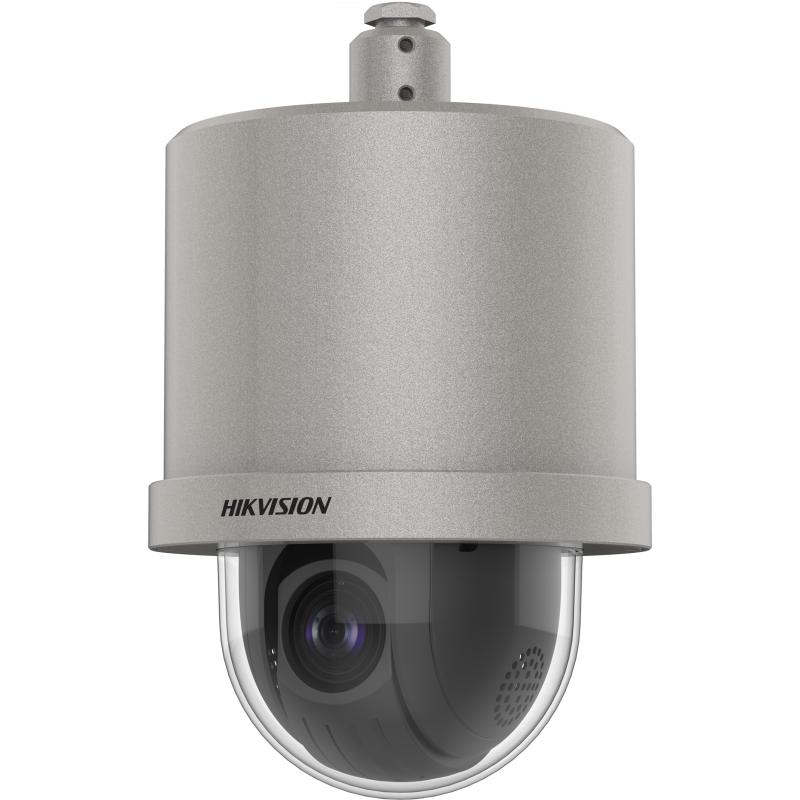

Hikvision 316L 4MP 31x Explosion-proof Network Speed Dome

Specifications

Image Sensor: 1/1.8″ progressive scan CMOS; Max. Resolution: 2560 × 1440; Min. Illumination: Color: 0.005 Lux @ (F1.5, AGC ON)
B/W: 0.001 Lux @ (F1.5, AGC ON); Shutter Speed: 1/1 s to 1/30,000 s; Day & Night: IR Cut Filter; Zoom: 31 × optical, 16 × digital; Slow Shutter: yes; Focal Length: 5.9 mm to 182.9 mm, 31 × optical zoom; FOV: Horizontal field of view: 60.2° to 2.5° (wide-tele)
Vertical field of view: 35.2° to 1.3° (wide-tele)
Diagonal field of view: 67.4° to 2.7° (wide-tele); Focus: semi-auto,manual,auto; Aperture: F1.5; Zoom Speed: Approx. 7 s (Optical Lens, Wide-Tele); Movement Range (Pan): 360° endless; Movement Range (Tilt): From 0° to 90° (Auto Flip); Pan Speed: Pan speed: configurable from 0.1° to 100°/s, preset speed: 100°/s; Tilt Speed: Tilt speed: configurable from 0.1° to 50°/s, preset speed 50°/s; Proportional Pan: yes; Presets: 300; Preset Freezing: yes; Patrol Scan: 8 patrols, up to 32 presets for each patrol; Pattern Scan: 4 pattern scans, record time over 10 minutes for each scan; Park Action: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan; 3D Positioning: yes; PTZ Status Display: yes; Scheduled Task: Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output; Power-off Memory: yes; Main Stream: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720); Sub-Stream: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240); Third Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240); Video Bit Rate: 32 kbps to 16384 kbps; H.264 Type: Baseline profile,Main profile,High profile; H.265 Type: main profile; Scalable Video Coding (SVC): yes; Region of Interest (ROI): yes; Target Cropping: no; Audio Compression: G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM; Audio Bit Rate: G.722.1: 16Kbps,G.711ulaw: 64 kbps, G.711alaw: 64 kbps, MP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps, 192 kbps; Audio Sampling Rate: MP2L2: 16kHz, 32kHz, 48kHz,PCM: 8kHz, 16kHz,32kHz, 48kHz; Environment Noise Filtering: yes; Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour; Simultaneous Live View: Up to 20 channels; API: Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK; User/Host: Up to 32 users. 3 levels: Administrator, Operator and User; Security: User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering; Network Storage: NAS (NFS, SMB/CIFS),auto network replenishment (ANR); Client: iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect; Web Browser: IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+; Image Parameters Switch: yes; Image Settings: saturation, brightness, sharpness, contrast; Day/Night Switch: auto; Wide Dynamic Range (WDR): 120 dB; SNR: ＞52dB; Defog: yes; Image Enhancement: HLC/BLC/3D DNR/EIS/Regional Exposure/Regional Focus; Privacy Mask: up to 24 masks; Ethernet Interface: RJ45, self-adaptive 10M/100M Ethernet port; On-board Storage: support microSD/microSDHC/microSDXC cards, up to 256 GB; Audio: 1-ch audio input and 1-ch audio output; Alarm: 7-ch alarm input and 2-ch alarm output; RS-485: HIKVISION, Pelco-P, Pelco-D, self-adaptive; Basic Event: Motion detection,video tampering alarm,alarm input and output,exception (IP address conflict, HDD full, illegal login, HDD error, network disconnected, Abnormal Reboot); Smart Event: intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection; Linkage: Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.; Smart Linkage: manual tracking,event tracking; Face Capture: 1. Detects up to 10 faces simultaneously
2. Uploads face with background and closed-up face pictures
3. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face; Power: 100 VAC to 240 VAC, Max.: 60 W; Dimension: Φ 255 mm × 405 mm（Φ 10″ × 15.9″); : 13.2 kg (29.11 lb.); Material: SUS316L with anti-corrosion surface spray treatment; Operating Condition: Temperature: -40°C to 60°C (-40°F to 140°F)，Humidity: ≤ 95%; Cable Length: 1.95 m (6.40 ft.); General Function: mirror,password protection,watermark,IP address filter; EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015); Safety: UL (UL 62368-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 62368-1:2014+A11:2017); BIS (IS 13252 (Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1); Protection: IP68, 4000V Lightning Protection, Surge Protection and Voltage Transient Protection; Explosion-Proof Protection: ATEX: Ex II 2GD Ex db IIC T6 Gb /Ex tb IIIC T80℃ Db,IECEx: Ex db IIC T6 Gb /Ex tb IIIC T80℃ Db,For explosive gas atmospheres, the maximum surface temperature is 85°C;
For flammable dust atmospheres, the maximum surface temperature is 80°C;
IIC: for explosive gas atmospheres other than mines susceptible to firedamp;
For explosive gas mixture atmospheres: Zone 1, Zone 2, Zone 21, Zone 22.; Anti-Corrosion Protection: NEMA 4X (NEMA 250-2018)
