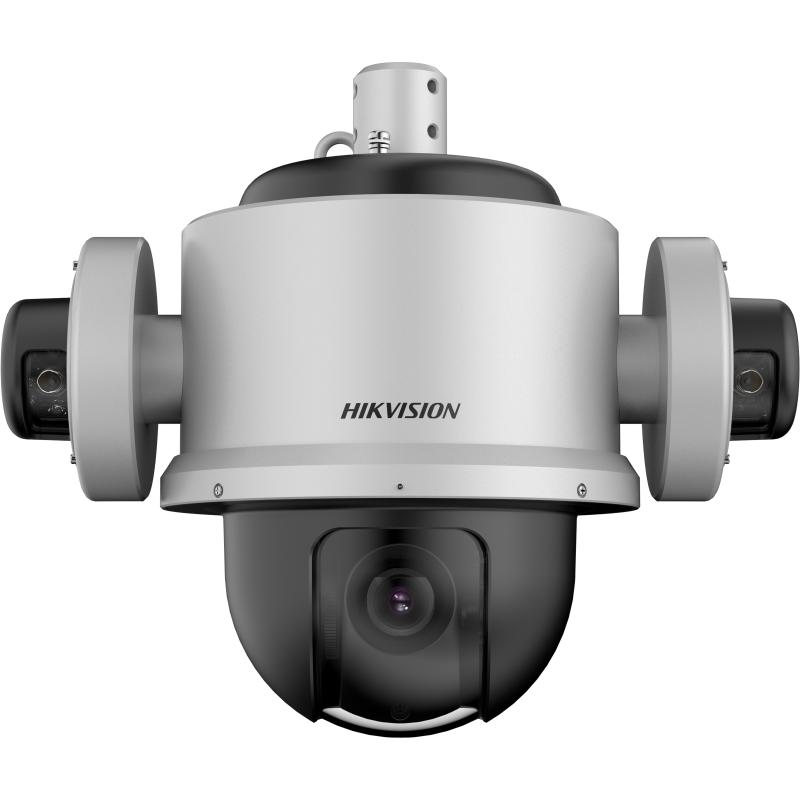

Hikvision 316L 4MP 32x Explosion-proof Network Speed Dome

Specifications

Image Sensor: 1/2.8″ progressive scan CMOS; Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON)
B/W: 0.001 Lux @ (F1.6, AGC ON); Shutter Speed: 1/1 s to 1/30,000 s; Slow Shutter: yes; Day & Night: IR Cut Filter; Zoom: 16 × digital,32 × optical; Max. Resolution: 2560 × 1440; Focus: semi-auto,manual,auto; Focal Length: 4.8 mm to 153.6 mm, 32 × optical zoom; Zoom Speed: Approx. 7 s (Optical Lens, Wide-Tele); FOV: Horizontal field of view: 53.3° to 2.6° (wide-tele)
Vertical field of view: 30.6° to 1.5° (wide-tele)
Diagonal field of view: 60.5° to 3° (wide-tele); Aperture: F1.6; Movement Range (Pan): 360° endless; Movement Range (Tilt): From 0° to 90° (Auto Flip); Pan Speed: Configurable, from 0.1°/s to 70°/s, preset speed: 70°/s; Tilt Speed: Configurable, from 0.1°/s to 50°/s, Preset Speed: 50°/s; Proportional Pan: yes; Presets: 300; Patrol Scan: 8 patrols, up to 32 presets for each patrol; Pattern Scan: 4 pattern scans, record time over 10 minutes for each scan; Power-off Memory: yes; Park Action: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan; 3D Positioning: yes; PTZ Status Display: yes; Preset Freezing: yes; Scheduled Task: dome reboot,preset,random scan,patrol scan,dome adjust,pattern scan,tilt scan,panorama scan,frame scan,aux output,auto scan; Main Stream: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720); Sub-Stream: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240); Third Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240); Video Bit Rate: 32 kbps to 16384 kbps; H.264 Type: main profile,baseline profile,high profile; H.265 Type: main profile; Scalable Video Coding (SVC): yes; Region of Interest (ROI): yes; Target Cropping: no; Audio Compression: G.711,G.722.1,G.726,MP2L2,PCM,MP3; Audio Bit Rate: 16 Kbps (G.722.1),64 Kbps (G.711),32 to 192 Kbps (MP2L2),16 Kbps (G.726),8 to 48 Kbps (PCM),8 to 320 Kbps (MP3); Audio Sampling Rate: 8 kHz,16 kHz,32 kHz,44.1 kHz,48 kHz; Environment Noise Filtering: yes; Web Browser: IE10 to 11, Chrome 57+, Firefox 52+, Safari 12+; Network Storage: NAS (NFS, SMB/ CIFS),ANR; Protocols: IPv4/IPv6,PPPoE,UPnP,DHCP,RTP,RTSP,IGMP,ICMP,TCP/IP,FTP,Bonjour,SSL/TLS,HTTP,DDNS,NTP,HTTPS,DNS,WebSocket,WebSockets,UDP,SNMP,QoS,802.1X; API: ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP; Simultaneous Live View: Up to 20 channels; User/Host: Up to 32 users. 3 levels: Administrator, Operator and User; Security: User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering; Client: iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect; Day/Night Switch: auto; Image Enhancement: BLC,HLC,3D DNR; Wide Dynamic Range (WDR): 120 dB; Defog: yes; Image Stabilization: EIS; Regional Exposure: yes; Regional Focus: yes; Image Settings: sharpness,saturation,brightness,contrast; Image Parameters Switch: yes; Privacy Mask: up to 24 masks; SNR: ＞52dB; On-board Storage: support microSD/microSDHC/microSDXC cards, up to 256 GB; RS-485: HIKVISION, Pelco-P, Pelco-D, self-adaptive; Fiber Optical: FC interface, built-in fiber module (100 M, TX1310/RX1550nm wavelength, single module fiber, up to 20 km transmission distance); Ethernet Interface: RJ45, self-adaptive 10M/100M Ethernet port; Alarm: 2 input(s), 1 output(s); Audio: 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%,
1 output (line out), line level, output impedance: 600 Ω; Basic Event: alarm input,video tampering alarm,exception,motion detection,alarm output; Smart Event: intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection; Linkage: Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.; Smart Tracking: manual tracking,event tracking; Face Capture: Supports detecting, tracking, capturing, grading, selecting of face in motion, and outputs the best face picture; Dimension: 427.5 mm × 261 mm × 367.1 mm (16.83″ × 10.28″ × 14.45″); Material: SUS316L stainless steel with anti-corrosion surface spray treatment; Cable Length: 2.4 m (7.87 ft.); General Function: mirror,password protection,watermark,IP address filter; Power: 100 VAC to 240 VAC, Max.: 60 W; Operating Condition: Temperature: -40°C to 60°C (-40°F to 140°F)，Humidity: ≤ 95%; Wiper: no; : Approx. 16.5 kg (36.38 lb.); EMC: CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014),RCM (AS/NZS CISPR 32: 2015),IC (ICES-003: Issue 7),KC (KN 32: 2015, KN 35: 2015); Safety: CB (IEC 62368-1: 2014 + A11),CE-LVD (EN 62368-1: 2014/A11: 2017); Protection: IP68(2m/2h) (IEC 60529-2013),TVS 6000 V lightning protection, surge protection and voltage transient protection,IK10 (IEC 62262:2002)
