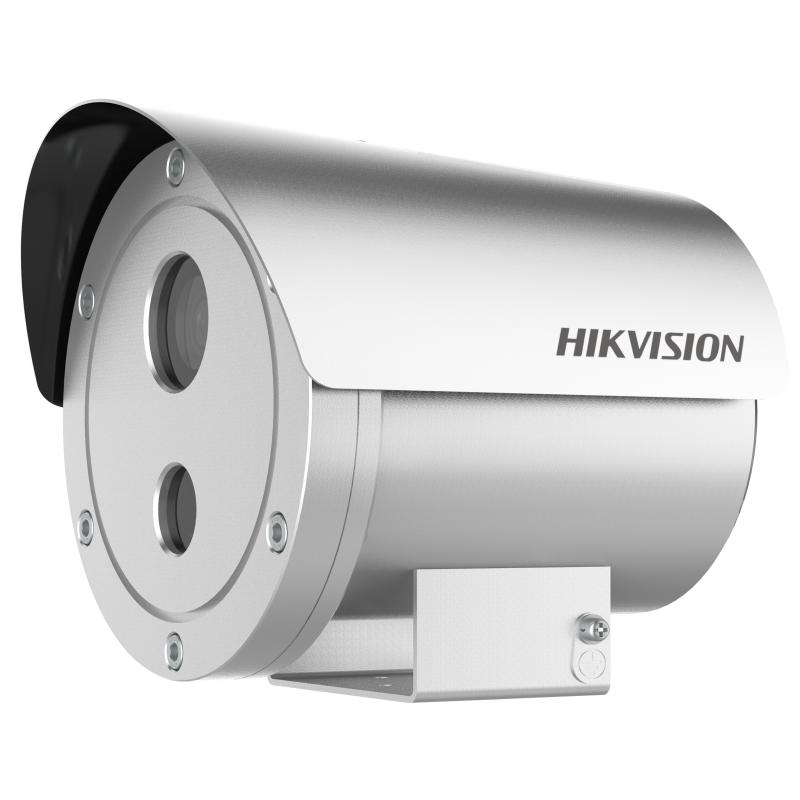

Hikvision 316L 4MP Explosion-Proof Fixed Bullet

Specifications

Image Sensor: 1/3″ Progressive Scan CMOS; Max. Resolution: 2560 × 1440; Min. Illumination: Color: 0.01 lux @ (F1.2, AGC ON), B/W: 0.001 lux @ (F1.2, AGC ON), 0 Lux with IR; Shutter Time: 1 s to 1/100,000 s; Day & Night: IR cut filter; Lens Type: Fixed focal lens, 4, 6, 8, and 12 mm optional; Focal Length & FOV: 4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 99°
6 mm, horizontal FOV 52°, vertical FOV 28°, diagonal FOV 60°
8 mm, horizontal FOV 39°, vertical FOV 22°, diagonal FOV 46°
12 mm, horizontal FOV 25°, vertical FOV 14°, diagonal FOV 28°; Lens Mount: M12; Aperture: F1.6; DORI: 4 mm:
D: 80 m, O: 31.7 m, R: 16 m, I: 8 m
6 mm:
D: 128 m, O: 50.8 m, R: 25.6 m, I: 12.8 m
8 mm:
D: 160 m, O: 63.5 m, R: 32 m, I: 16 m
12 mm:
D: 248 m, O: 98.4 m, R: 49.6 m, I: 24.8 m; Supplement Light Type: IR; Supplement Light Range: Up to 30 m; IR Wavelength: Up to 850 nm; Main Stream: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 24 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720); Sub-Stream: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288, 320 × 240)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240, 320 × 240); Third Stream: 50 Hz: 1 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240)
60 Hz: 1 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240, 320 × 240); Video Compression: Main stream: H.265/H.264/H.265+/H.264+
Sub stream: H.265/H.264/MJPEG
Third stream: H.265/H.264/MJPEG; Video Bit Rate: 32 Kbps to 16 Mbps; H.264 Type: Baseline profile/main profile/high profile; H.265 Type: Main profile; Region of Interest (ROI): 5 customized regions for each stream, and face dynamic tracking; Target Cropping: Yes; Audio Type: Mono sound; Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3; Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3); Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz; Environment Noise Filtering: Yes; Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP; Simultaneous Live View: Up to 6 channels; API: Open Network Video Interface (Profile S, Profile G), PSIA, CGI, ISAPI; User/Host: Up to 32 users. 3 user levels: administrator, operator and user; Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR); Client: iVMS-4200, Hik-Connect, Hik-Central; Web Browser: Plug-in required live view: IE 8+, Chrome 41.0 to 44, Firefox 30.0 to 51, Safari 8.0 to 11
Plug-in free live view: Chrome 45.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
Not recommended: Safari 11+, Edge; Image Settings: Rotate mode, saturation, brightness, contrast adjustable by client software or web browser; Day/Night Switch: Auto/Schedule/Alarm Trigger; Wide Dynamic Range (WDR): 120 dB; Image Enhancement: BLC/3D DNR; Privacy Mask: 8 programmable polygon privacy mask; Picture Overlay: LOGO picture can be overlaid on video with 128 × 128 24bit bmp format; Audio: 1 line in, 1 line out; Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port; On-Board Storage: Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
*You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing.; Alarm: 1 alarm input, 1 alarm output; Basic Event: Motion detection (support alarm triggered by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error); Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle))
Scene change detection, audio exception detection; Linkage: Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture; Power: 100 VAC to 240 VAC, 0.15 A, 50/60 Hz, max. 7 W, terminal block
PoE: 802.3af, Class 3, 36 to 57 V, 0.3 to 0.2 A; Material: Stainless steel 316L; Dimension: 202 mm × 174 mm × 172 mm (8.0″× 6.9″ × 6.8″); Package Dimension: 435 mm × 255 mm × 285 mm (17.1″ × 10″ × 11.2″); : Approx. 6.18 kg (13.62 lb.); With Package Weight: Approx. 7.21 kg (15.90 lb.); Storage Conditions: -40 °C to +60 °C (-40 °F to +140 °F). Humidity 95% or less (non-condensing); Startup and Operating Conditions: -30 °C to +60 °C (-22 °F to +140 °F). Humidity 95% or less (non-condensing); Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian; General Function: Mirror, anti-flicker, heartbeat, watermark, password protection, privacy mask; Cable Length: 1.41 m (4.63 ft.); EMC: FCC: FCC-SDoC (ANSI C63.4, FCC Part15 sub B)
CE: CE-EMC (EN 50130-4: 2011+A1: 2014, EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013)
IC: IC-VoC (ICES-003 Issue 7: 2020)
KC: KN 301489-1, KN 301489-17, RRA NOTICE 2017-14 (2017.12.05), RRA NOTICE 2017-19 (2017.12.28); Safety: CB (IEC 60950-1)
CE: CE-LVD (EN 60950-1: 2006+A11: 2009+A1: 2010+A12: 2011+A2: 2013); Protection: IK08 (IEC 62262:2002), IP68 (IEC 60529-2013); Explosion-Proof Protection: ATEX: II 2G Ex db IIC T6 Gb/ II 2D Ex tb IIIC T80°C Db IP68
IECEx: Ex db IIC T6 Gb /Ex tb IIIC T80°C Db IP68
For explosive gas atmospheres, the maximum surface temperature is 85°C;
For flammable dust atmospheres, the maximum surface temperature is 80°C;
IIC: for explosive gas atmospheres other than mines susceptible to firedamp;
For explosive gas mixture atmospheres: Zone 1, Zone 2, Zone 21, Zone 22.; Anti-Corrosion Protection: NEMA 4X (NEMA 250-2018)
