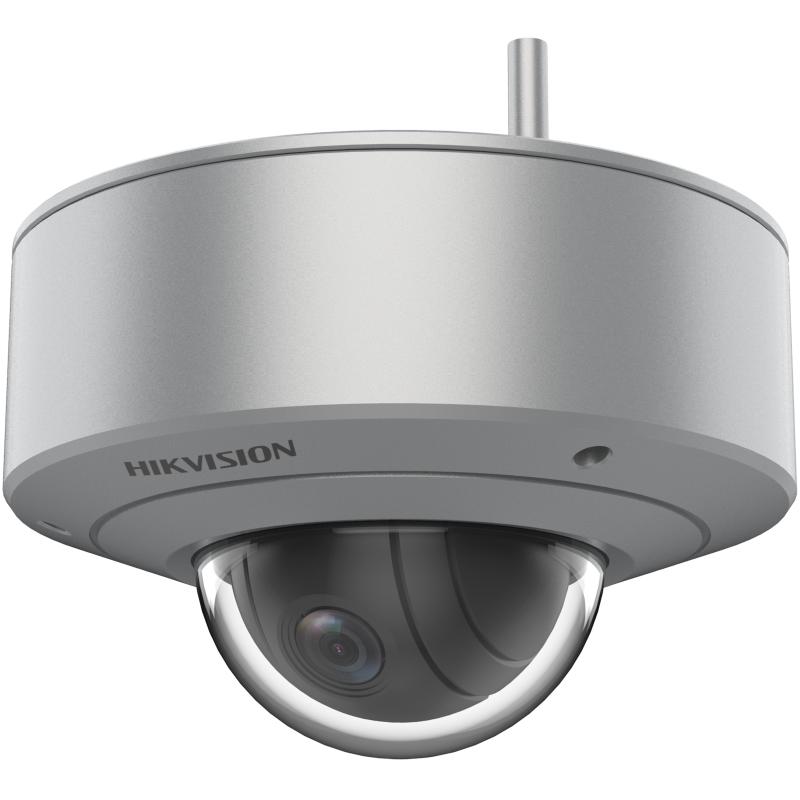

Hikvision 316L 4MP Explosion-Proof Fixed Dome

Specifications

Image Sensor: 1/3″ Progressive Scan CMOS; Max. Resolution: 2688 × 1520; Min. Illumination: Color: 0.003 Lux @ (F1.0, AGC ON); Shutter Time: 1/3 s to 1/100,000 s; Angle Adjustment: Pan: 0° to 340°, tilt: 0° to 75°; Lens Type: Fixed focal length, 2.8 mm, 4 mm, and 6 mm optional; Focal Length & FOV: 2.8 mm, horizontal FOV 102.5°, vertical FOV 53.4°, diagonal FOV 118.9°
4 mm, horizontal FOV 80.2°, vertical FOV 40.8°, diagonal FOV 93.4°
6 mm, horizontal FOV 52.5°, vertical FOV 27.4°, diagonal FOV 60.2°; Lens Mount: M12; Aperture: F1.0; DORI: 2.8 mm, D: 54.6 m, O: 21.7 m, R: 10.9 m, I: 5.5 m
4 mm, D: 85.4 m, O: 33.9 m, R: 17.1 m, I: 8.5 m
6 mm, D: 128.0 m, O: 50.8 m, R: 25.6 m, I: 12.8 m; Main Stream: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720); Sub-Stream: 50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360); Third Stream: 50 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360); Video Compression: Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264; Video Bit Rate: 32 Kbps to 8 Mbps; H.264 Type: Baseline Profile/Main Profile/High Profile; H.265 Type: Main Profile; Scalable Video Coding (SVC): H.264 and H.265 encoding; Region of Interest (ROI): 5 fixed regions for each stream; Target Cropping: Yes; Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC/MP3; Audio Bit Rate: 64 Kbps (G.711 ulaw/G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC)/8 to 320 Kbps (MP3); Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz; Environment Noise Filtering: Yes; Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour; Simultaneous Live View: Up to 6 channels; API: Open Network Video Interface, ISAPI, ISUP 5.0; User/Host: Up to 32 users
3 levels: Administrator, Operator and User; Network Storage: NAS (NFS, SMB/CIFS), ANR; Client: iVMS-4200, Hik-Connect; Web Browser: Plug-in required live view: IE10, IE11
Local service: Chrome 57.0+, Firefox 52.0+; Image Parameters Switch: Yes; Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance adjustable by client software or web browser; Day/Night Switch: Day, Night, Auto, Schedule; Wide Dynamic Range (WDR): 120 dB; Image Enhancement: BLC, HLC, 3D DNR, defog; Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port; On-Board Storage: Built-in memory card slot, support microSD/SDHC/SDXC card, up to 128 GB
*You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing.; Audio: 1 input (line in), 1 output (line out); Alarm: 1 alarm input, 1 alarm output (supports max. 24 VDC, 1 A or 110 VAC, 500 mA); RS-485: 1 RS-485 interface; Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error); Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection
Scene change detection, unattended baggage detection, object removal detection; Power: 12 VDC ± 20%, 0.8 A, max. 10 W, two-core terminal block
PoE (802.3af, Class 3, 36 V to 57 V), 0.3 A to 0.2 A, max. 12.5 W; Dimension: Ø138 mm × 123.4 mm (Ø5.43″ × 4.86″); Package Dimension: 251 mm × 215 mm × 189 mm (9.88″ × 8.46″ × 7.44″); : Approx. 2810 g (6.2 lb.); With Package Weight: Approx. 4040 g (8.9 lb.); Startup and Operating Conditions: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing); Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian; General Function: Anti-flicker, heartbeat, mirror, privacy mask, password protection, watermark, IP address filter; Heater: Yes; Cable Length: 1.3 m (4.27 ft.); EMC: FCC: FCC-SDoC (ANSI C63.4, FCC Part15 sub B)
CE: CE-EMC (EN 50130-4:2011+A1:2014, EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013)
RCM: AS/NZS 60950.1:2003 + Am1, Am2 and Am3, AS/NZS CISPR 32:2015
IC: IC-VoC (ICES-003 Issue 7:2020)
KC: KN 301489-1, KN 301489-17, RRA NOTICE 2017-14 (2017.12.05), RRA NOTICE 2017-19 (2017.12.28); Safety: UL: UL 62368-1: 2014, CAN/CSA C22.2 No. 62368:2014
CB: IEC 62368-1:2014
BIS: IS 13252 (Part 1) 2010+A1:2013+A2:2015
LOA: SANS IEC60950-1; Environment: CE: CE-RoHS (RoHS Directive 2011/65/EU+2015/863); Protection: IP68 (IEC 60529-2013); Explosion-Proof Protection: ATEX: II 2G Ex db IIC T6 Gb/ II 2D Ex tb IIIC T80°C Db IP68
IECEx: Ex db IIC T6 Gb /Ex tb IIIC T80°C Db IP68
For explosive gas atmospheres, the maximum surface temperature is 85°C;
For flammable dust atmospheres, the maximum surface temperature is 80°C;
IIC: for explosive gas atmospheres other than mines susceptible to firedamp;
For explosive gas mixture atmospheres: Zone 1, Zone 2, Zone 21, Zone 22.; Anti-Corrosion Protection: NEMA 4X (NEMA 250-2018)
