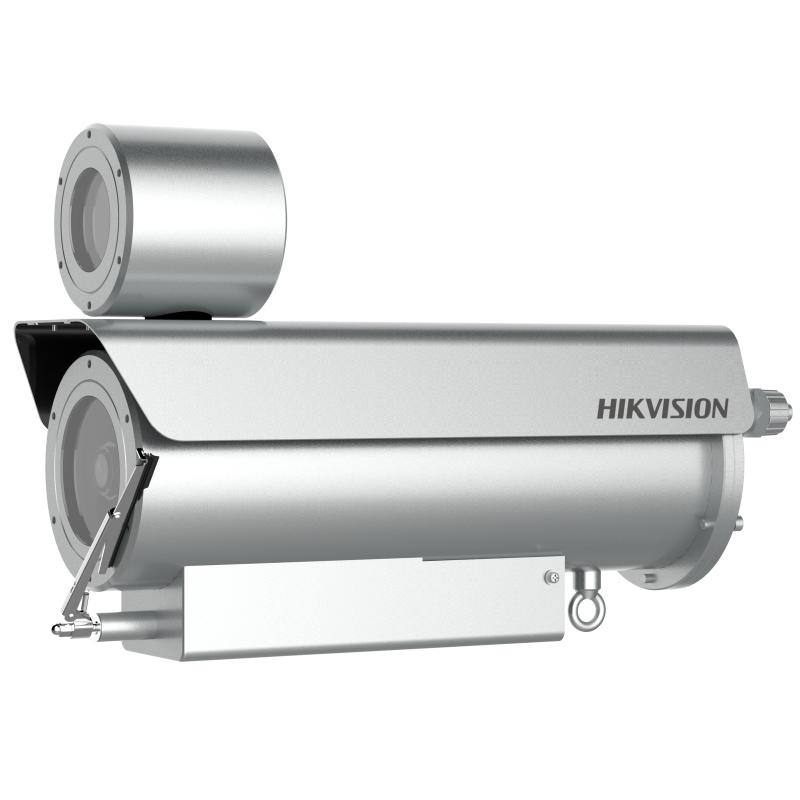

Hikvision 316L 4MP Explosion-Proof Vari-focal Bullet

Specifications

Image Sensor: 1/1.8″ Progressive Scan CMOS; Max. Resolution: 2688 × 1520; Min. Illumination: Color: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR; Shutter Time: 1/3 s to 1/100,000 s; Day & Night: IR cut filter; Focus: Auto,Semi-auto,Manual; Lens Type: Varifocal lens, motorized lens, 2.8 to 12 mm and 8 to 32 mm optional; Focal Length & FOV: 2.8 to 12 mm, horizontal FOV 94° to 38°, vertical FOV 49.9° to 21.3°, diagonal FOV 112.3° to 43.7°
8 to 32 mm, horizontal FOV 42.2° to 15.1°, vertical FOV 23.4° to 8.6°, diagonal FOV 49.6° to 17.3°; Iris Type: Auto-iris; Aperture: 2.8 to 12 mm: F1.4
8 to 32 mm: F1.7; DORI: 2.8 to 12 mm:
D: 44.1 to 151.7 m, O: 17.5 to 60.2 m, R: 8.8 to 30.3 m, I: 4.4 to 15.2 m
8 to 32 mm:
D: 150.3 to 400 m, O: 59.7 to 158.7 m, R: 30.1 to 80 m, I: 15 to 40 m; Supplement Light Type: IR; Supplement Light Range: 2.8 to 12 mm: up to 80 m
8 to 32 mm: up to 150 m; Smart Supplement Light: Yes; IR Wavelength: Up to 850 nm; Main Stream: 50 Hz: 25 fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720); Sub-Stream: 50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)
60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240); Third Stream: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240); Video Compression: Main stream: H.265/H.264/H.265+/H.264+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264; Video Bit Rate: 32 Kbps to 8 Mbps; H.264 Type: BaseLine Profile,Main Profile,High Profile; H.265 Type: Main Profile; Bit Rate Control: CBR,VBR; Scalable Video Coding (SVC): H.264 and H.265 encoding; Region of Interest (ROI): 1 fixed region for main stream and sub-stream; Target Cropping: Yes; Environment Noise Filtering: Yes; Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz; Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC; Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3); Audio Type: Mono sound; Simultaneous Live View: Up to 6 channels; API: Open Network Video Interface, ISAPI, SDK, ISUP; Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, SSL/TLS; User/Host: Up to 32 users. 3 levels: administrator, operator and user; Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.; Client: iVMS-4200, Hik-Connect, Hik-Central; Web Browser: Plug-in required live view: IE 8+, Chrome 41.0 to 44, Firefox 30.0 to 51, Safari 8.0 to 11
Plug-in free live view: Chrome 45.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
Not recommended: Safari 11+, Edge; Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, white balance, and AGC adjustable by client software or web browser; Wide Dynamic Range (WDR): 120 dB; Picture Overlay: LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format; Day/Night Switch: Day,Night,Auto,Schedule; Image Enhancement: BLC,HLC,3D DNR,Defog; Image Parameters Switch: Yes; SNR: ≥ 50 dB; Privacy Mask: 8 programmable polygon privacy masks; Video Output: 1 Vp-p Composite Output (75 Ω/BNC); Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port; On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
*You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing.; Audio: 1 input (line in), 1 output (line out); Alarm: 2 inputs, 2 outputs (max. 24 VDC, 1 A or 110 VAC, 500 mA); Basic Event: Motion detection (support alarm triggered by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error); Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle))
Scene change detection, audio exception detection; Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture; Power: 100 VAC to 240 VAC, 0.38 A to 0.18 A, max. 22.6 W, three-core terminal block
PoE: IEEE 802.3at, 42.5 V to 57 V, 0.56 A to 0.42 A, max. 23.6 W; Material: 316L + Anti-corrosion coating; Dimension: 513.2 mm × 169 mm × 308 mm (20.2″ × 6.65″ × 12.13″); Package Dimension: 753 mm × 313 mm × 424 mm (29.65″ × 12.32″ × 16.69″); : Appox. 17.42 kg (38.40 lb.); With Package Weight: Appox. 19.80 kg (43.65 lb.); Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing); Startup and Operating Conditions: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing); Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian; Heater: Yes; Wiper: Yes; Cable Length: 1.1 m (3.61 ft.); General Function: Anti-banding, heartbeat, mirror, flash log, password reset via email, pixel counter; EMC: FCC: FCC-SDoC (ANSI C63.4, FCC Part15 sub B)
CE: CE-EMC (EN 50130-4: 2011+A1: 2014, EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013)
IC: IC-VoC (ICES-003 Issue 7: 2020)
KC: KN 301489-1, KN 301489-17, RRA NOTICE 2017-14 (2017.12.05), RRA NOTICE 2017-19 (2017.12.28); Safety: CB: IEC 60950-1
CE: CE-LVD (EN 60950-1: 2006+A11: 2009+A1: 2010+A12: 2011+A2: 2013)
LOA: SANS IEC60950-1; Environment: CE: CE-RoHS (RoHS Directive 2011/65/EU+2015/863); Protection: IP68: IEC 60529-2013; Explosion-Proof Protection: ATEX: II 2 G Ex db op is IIC T6 Gb/ II 2D Ex tb op is IIIC T80°C Db
IECEx: Ex db IIC T6 Gb /Ex tb IIIC T80°C Db
For explosive gas atmospheres, the maximum surface temperature is 85°C;
For flammable dust atmospheres, the maximum surface temperature is 80°C;
IIC: for explosive gas atmospheres other than mines susceptible to firedamp;
For explosive gas mixture atmospheres: Zone 1, Zone 2, Zone 21, Zone 22.; Anti-Corrosion Protection: NEMA 4X (NEMA 250-2018)
