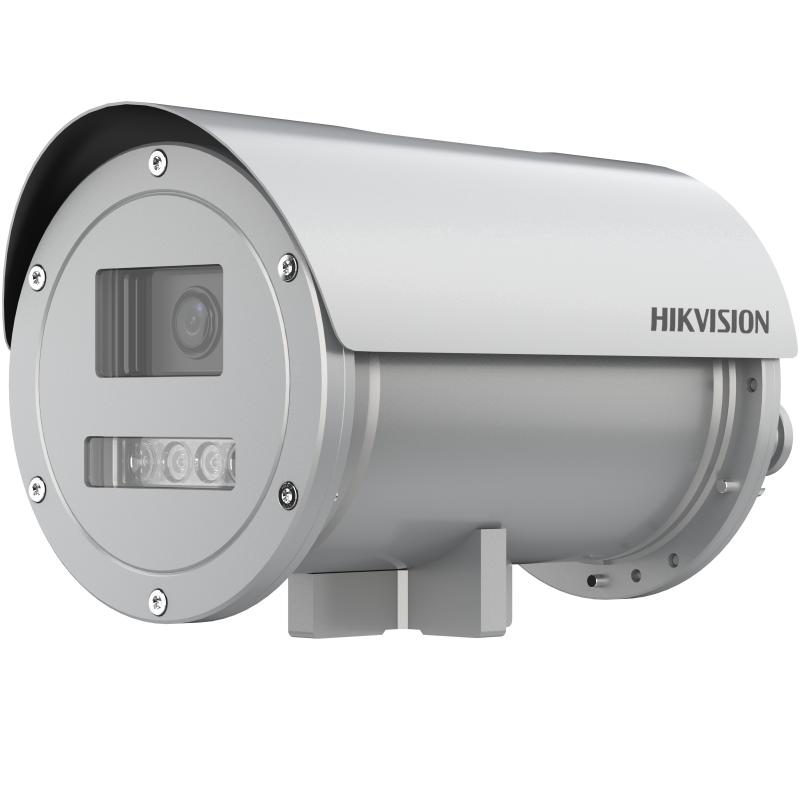

Hikvision 316L 4MP Explosion-Proof Vari-focal Bullet with Built-in Junction

Specifications

Image Sensor: 1/1.8″ Progressive Scan CMOS; Max. Resolution: 2688 × 1520; Min. Illumination: Color: 0.009 Lux @ (F1.2, AGC ON), B/W: 0.0009 Lux @ (F1.2, AGC ON), 0 Lux with IR; Shutter Time: 1 s to 1/100,000 s; Day & Night: IR cut filter; Lens Type: Varifocal lens, 2.8 to 12 mm and 8 to 32 mm optional; Focal Length & FOV: 2.8 to 12 mm, horizontal FOV 115° to 42°, vertical FOV 59° to 24°, diagonal FOV 141° to 48°
8 to 32 mm, horizontal FOV 43° to 15°, vertical FOV 23° to 9°, diagonal FOV 50° to 17°; Lens Mount: Integrated; Focus: Auto, semi-auto, manual; Iris Type: Auto-iris, DC drive; Aperture: 2.8 to 12 mm: F1.4
8 to 32 mm: F1.7, constant F1.7 throughout the zoom range; DORI: 2.8 to 12 mm: D: 150.3 m, O: 59.7 m, R: 30.1 m, I: 15 m
8 to 32 mm: D: 400 m, O: 158.7 m, R: 80 m, I: 40 m; Supplement Light Type: IR; Supplement Light Range: 2.8 to 12 mm: up to 60 m
8 to 32 mm: up to 100 m; IR Wavelength: 850 nm; Main Stream: 50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720); Sub-Stream: 50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480); Third Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480); Fourth Stream: 50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480); Fifth Stream: 50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480); Video Compression: Main stream: H.265+/H.265/H.264+/H.264
Sub-stream/Fourth stream/Fifth stream: H.265/H.264/MJPEG
Third stream: H.265/H.264; Video Bit Rate: 32 Kbps to 8 Mbps; H.264 Type: Baseline Profile/Main Profile/High Profile; H.265 Type: Main Profile; Bit Rate Control: CBR,VBR; Scalable Video Coding (SVC): H.265 and H.264 encoding; Region of Interest (ROI): 5 fixed regions for each stream; Target Cropping: Yes; Audio Type: Mono sound; Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3; Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)/8 to 320 Kbps (MP3); Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz; Environment Noise Filtering: Yes; Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets; Simultaneous Live View: Up to 20 channels; API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP; User/Host: Up to 32 users. 3 user levels: administrator, operator and user; Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, TLS1.2; Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.; Client: iVMS-4200, Hik-Connect, Hik-Central; Web Browser: Plug-in required live view: IE10, IE11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari12+
Local service: Chrome 57.0+, Firefox 52.0+; Image Parameters Switch: Yes; Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser; Day/Night Switch: Day, Night, Auto, Schedule, Alarm Trigger (-S), Video Trigger; Wide Dynamic Range (WDR): 120 dB; SNR: ≥ 52 dB; Image Stabilization: EIS; Image Enhancement: BLC, HLC, Defog, 3D DNR; Picture Overlay: LOGO picture can be overlaid on video with 128 × 128 24bit bmp format; Video Output: 1 Vp-p Composite Output (75 Ω/BNC); Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive); On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC/TF card, up to 256 GB
*You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing.; Audio: 1 input (line in), terminal block, max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;
1 output (line out), terminal block, max. output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium; Alarm: 1 input, 1 output (max. 24 VDC, 1 A or 110 VAC, 500 mA); Fiber Optical: 1 fiber optical interface, single module, single mode, 20 km transmission distance, 1310 nm (TX) and 1550 nm (RX), 155 Mbps transmission rate; Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, abnormal reboot, HDD full, HDD error), video quality diagnosis, vibration detection; Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle))
Scene change detection, audio exception detection, defocus detection; Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning; Hard Hat Detection: Detects up to 30 human targets simultaneously
Supports up to 4 shield regions; Metadata: Metadata of road traffic is supported; Road Traffic and Vehicle Detection: Blocklist and allowlist: up to 10,000 records; Captures vehicle that has no license plate; Support license plate recognition of motorcycles (only in checkpoint scenario); Support vehicle attribute detection, including vehicle type, color, brand, etc. (City Street mode is recommended.); Power: 100 to 240 VAC, 0.4 A to 0.17A, max. 18 W, terminal block
PoE: 802.3at, 42.5 to 57 V, 0.55 to 0.45 A, max. 18 W; Material: Stainless steel 316L & anti-corrosion coating; Dimension: 352 mm × 200 mm × 214 mm (13.9″ × 7.9″ × 8.4″); Package Dimension: 438 mm × 283 mm × 303 mm (17.2″ × 11.1″ × 11.9″); : Approx. 14 kg (30.9 lb.); With Package Weight: Approx. 15 kg (33.1 lb.); Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing); Startup and Operating Conditions: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing); Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian; General Function: Anti-flicker, 5 streams and 5 custom streams, heartbeat, mirror, privacy mask, pixel counter; Heater: Yes; Cable Length: 0.09 m (0.30 ft.); EMC: FCC: FCC-SDoC (ANSI C63.4, FCC Part15 sub B)
CE: CE-EMC (EN 55024: 2010 + A1: 2015, EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019)
RCM: AS/NZS 60950.1: 2003 + Am1, Am2 and Am3, AS/NZS CISPR 32: 2015
IC: IC-VoC (ICES-003 Issue 7: 2020); Safety: UL: UL 62368-1, CAN/CSA C22.2 No. 60950-1-07: 2014
UL: Class I, Zone 1, AEx db IIC T6 Zone 21, AEx tb IIIC T80 °C Ex db IIC T6 Gb X Ex tb IIIC T80 °C Db X
CB: IEC IEC 60079-0
CE: CE-LVD (EN 62368-1: 2014/A11: 2017)
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005; Protection: IP68: IEC 60529-2013; Explosion-Proof Protection: ATEX: Ex II 2 G D Ex db IIC T6 Gb/Ex tb IIIC T80 °C Db IP68
IECEx: Ex db IIC T6 Gb/Ex tb IIIC T80 °C Db IP68
For explosive gas atmospheres, the maximum surface temperature is 85 °C;
For flammable dust atmospheres, the maximum surface temperature is 80 °C;
IIC: for explosive gas atmospheres other than mines susceptible to firedamp;
For explosive gas mixture atmospheres: Zone 1, Zone 2, Zone 21, Zone 22.; Anti-Corrosion Protection: NEMA 4X (NEMA 250-2018)
