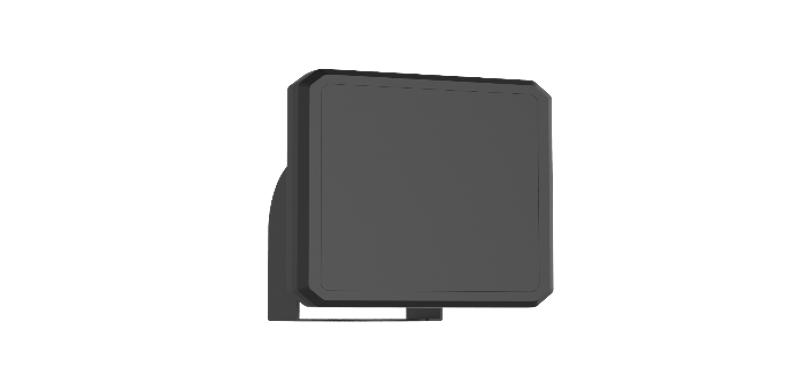

Hikvision 350 m Traffic Parameter Collection Radar DS-TDSB00-EML/350m

Specifications

Working Frequency: 60 to 61 GHz; Modulation Waveform: FMCW; Horizontal Detection Angle: ± 14.5°@Narrow Beam, ± 60°@Wide Beam; Vertical Detection Angle: ± 4.5°@Narrow Beam, ± 12.6°@Wide Beam; Coverage Lanes: Up to 8 lane(s); Detection Distance: 350 m@Narrow Beam,100 m@Wide Beam; Distance Resolution: 0.88 m@Narrow Beam,0.3 m@Wide Beam; Speed Resolution: 0.13 m/s; Angle Resolution: 1.86°@Narrow Beam,6.23°@Wide Beam; Speed Measuring Range: -300 to 300 km/h; Max. Detectable Targets: Up to 256 target(s); Speed Measuring Accuracy: ±2 km/h; Trigger Mode: Approaching direction,Leaving direction,Bidrection; Sweep Bandwidth: 169M Hz@Narrow Beam,500M Hz@Wide Beam; Network Interface: 1 RJ 45 10 M/100 M self-adaptive Ethernet port; RS-485: 1 RS-485; Power: DC 12 V to 24 V, 1.5 A, max. 18 W, two-core terminal block; Material: Cover: PC, main body: ADC12; Dimensions: 173 mm × 175.6 mm × 202.5 mm (6.81″ × 6.91″ × 7.97″) (L × W × H); Package Dimensions: 270 mm × 250 mm × 223 mm (10.62″ × 9.84″ × 8.78″) (L × W × H); Weight: Approx. 1.80 kg (9.97 lb.); With Package Weight: Approx. 2.33 kg (5.14 lb.); Operating Condition: -30 °C to 70 °C (-22 °F to 158°F). Humidity: 5% to 95% (non-condensing); Storage Condition: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (Non-condensing); Installation Height: 6 to 10 m (Recommend height: 6 m); EMC: EN 301 489-1 V2.2.3:2019,EN 301 489-3 V2.1.1:2019; RF: CE-RED：EN IEC 61326-1:2021,DRAFT EN 305 550 V2.1.0:2017,EN 62479:2010,EN 50663:2017
KC: KS X 3124,KS X 3123; Safety: CB:IEC 61010-1:2010,IEC 61010-1:2010/AMD1:2016
CE-LVD: EN 61010-1:2010+A1:2019; Environment: CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006; Protection: IP67: IEC 60529-2013
