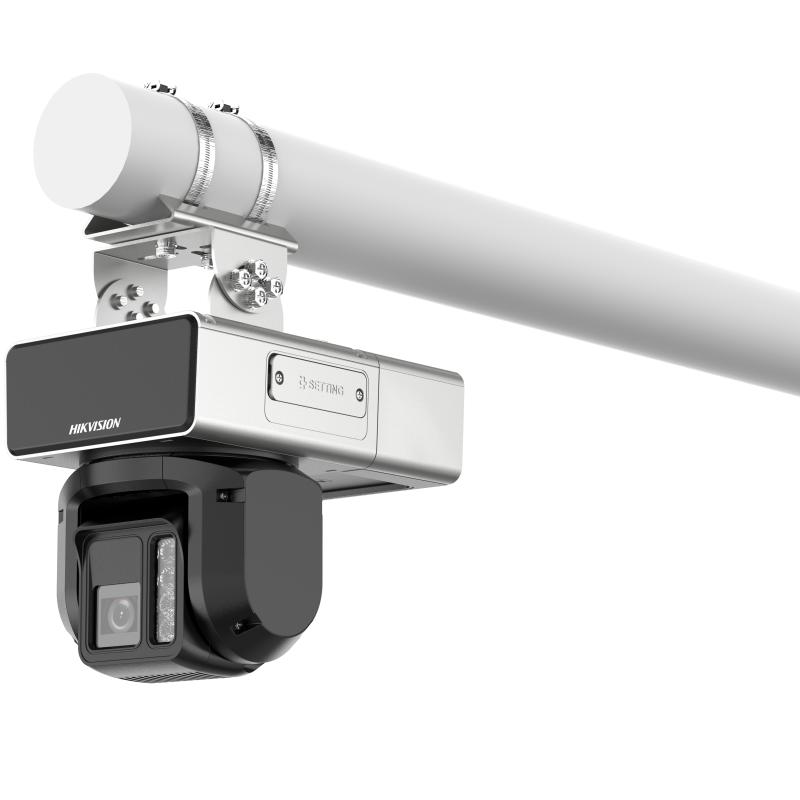

Hikvision 3C Series 4MP Water-Level Detection Network Speed Dome

Specifications

Detection Distance: Water Level: 40 m; Distance Measurement Accuracy: ± 1 mm; Image Sensor: 1/1.8″ Progressive Scan CMOS; Max. Resolution: 2560 × 1440; Min. Illumination: Color: 0.0005 Lux @ (F1.0, AGC ON),B/W: 0.0001 Lux @ (F1.0, AGC ON),0 Lux with light; Shutter Speed: 1/1 s to 1/30000 s; Slow Shutter: Yes; Focal Length: 4 mm; FOV: Horizontal field of view: 67°, vertical field of view: 41°, diagonal field of view: 75°; Aperture: F1.0; Supplement Light Type: White Light; Supplement Light Range: White light distance: up to 30 m; Smart Supplement Light: Yes; Movement Range (Pan): 0° to 340°; Movement Range (Tilt): -20° to 90°; Pan Speed: Pan speed: configurable from 0.1° to 40°/s, preset speed: 40°/s; Tilt Speed: Tilt speed: configurable from 0.1° to 40°/s, preset speed 40°/s; Presets: 300; Patrol Scan: 8 patrols, up to 32 presets for each patrol; Park Action: Preset,pattern scan; 3D Positioning: Yes; PTZ Status Display: Yes; Scheduled Task: patrol scan,Preset,dome reboot,dome adjust,aux output; Power-off Memory: Yes; Main Stream: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720),
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720); Sub-Stream: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240); Third Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240); Video Compression: Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264/MJPEG; Video Bit Rate: 32 Kbps to 16 Mbps; H.264 Type: Baseline profile,Main profile,High profile; H.265 Type: Main profile; Scalable Video Coding (SVC): H.264 and H.265 encoding; Region of Interest (ROI): 8 fixed regions for each stream; Audio Compression: G.711,G.722.1,G.726,MP2L2,PCM,MP3,AAC-LC; Audio Bit Rate: 8 to 320 Kbps (MP3),64 Kbps (G.711),16 Kbps (G.722.1),16 Kbps (G.726),32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC); Audio Sampling Rate: MP2L2: 16kHz，32kHz，48kHz,PCM：8kHz，16kHz，32kHz，48kHz,AAC-LC: 16kHz，32kHz，48kHz,MP3：8 kHz，16 kHz，32 kHz，48 kHz; Protocols: IPv4/IPv6,HTTP,HTTPS,QoS,FTP,TCP/IP,ICMP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,UPnP,SMTP,SNMP,IGMP,UDP,Bonjour,NTP,ISUP; Simultaneous Live View: Up to 20 channels; API: ISAPI,SDK,ISUP; User/Host: Up to 32 users. 3 user levels: administrator, operator, and user; Security: Password protection,complicated password,IP address filter,HTTPS encryption,host authentication (MAC address),watermark; Network Storage: NAS (NFS, SMB/CIFS); Client: iVMS-4200; Web Browser: IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+; Wireless Range: Up to 50 m
(The performance varies based on actual environment); Mobile Communication Type: no; Frequency: no; Standard: no; SIM: no sim; Image Parameters Switch: Yes; Image Settings: Saturation, brightness, contrast, sharpness, gain; Day/Night Switch: Day,night,auto,schedule; Wide Dynamic Range (WDR): 120 dB; SNR: ≥ 52 dB; Defog: Digital defog; Privacy Mask: 24 programmable polygon privacy masks, mask color or mosaic configurable; Regional Exposure: Yes; Ethernet Interface: 1 RJ45 10M/100M self-adaptive Ethernet port; On-board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB; Audio: 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%,
1 output (line out), line level, output impedance: 600 Ω; Alarm: 2 input(s), 1 output(s); RS-485: 1 RS-485 (,HIKVISION, Pelco-P, Pelco-D); Reset: Yes; Basic Event: exception; Alarm Linkage: Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,and PTZ actions (such as preset),and PTZ actions (such as preset, patrol scan, pattern scan); Power: 12 VDC ± 25%, max. 21 W; Dimension: 145 mm × 182 mm × 232 mm (5.7″ × 7.16″ × 9.13″); : Approx. 1.8 kg (3.97 lb.); Material: ADC12; Operating Condition: -30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing); Heater: Yes; Wiper: No; Demist: Yes; Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian; EMC: CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014),RCM (AS/NZS CISPR 32: 2015),IC (ICES-003: Issue 7),KC (KN 32: 2015, KN 35: 2015); Safety: CE-LVD (EN 62368-1: 2014/A11: 2017),CB (IEC 62368-1: 2014 + A11),UL (UL 62368-1),BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005); Environment: CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No 1907/2006); Protection: IP67 (IEC 60529-2013),IK10 (IEC 62262:2002),TVS 6K V lightning protection, surge protection and voltage transient protection
