The Hikvision DS-3D501R-3 is a passive video transceiver (receiver) for transmitting video signals over twisted-pair cables. It provides high-quality video transmission over long distances and is ideal for surveillance systems and other video applications. This model is designed for receiving video signals from a compatible transmitter.
Accessories, Sécurité/Surveillance

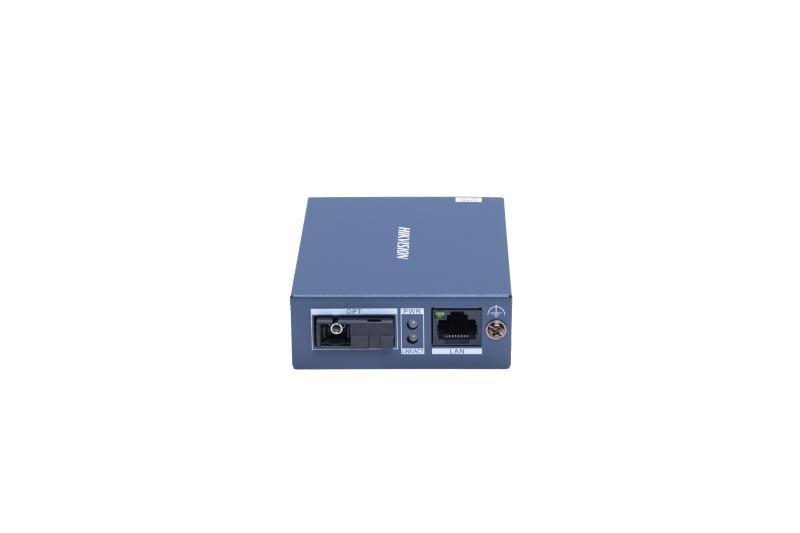

Hikvision 3KM Gigabit Fiber Receiver DS-3D501R-3
Hikvision DS-3D501R-3 passive video receiver for surveillance systems. Transmit high-quality video signals over twisted-pair cables.
Specifications
Shell: Metal; Net Weight: 0.13 kg (0.28 lb); Gross Weight: 0.23 kg (0.51 lb); Dimensions (W × H × D): 71.6 mm × 26.1 mm × 94.1 mm (2.81” × 1.03” × 3.70”); Operating Temperature: -20 °C to 60 °C (-4 °F to 140 °F); Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F); Operating Humidity: 5% to 95% (no condensation); Relative Humidity: 5% to 95% (no condensation); Power Supply: 5VDC, 0.6A; Max. Power Consumption: 3 W; Power Consumption in Idle: 2 W; Installation Mode: Desk-Mounted; Surge Protection: 4 kV; Ports: 1 x 10/100/1000 Mbps RJ45 port and 1 x 1000 Mbps SC fiber optical port; Switching Capacity: 4 Gbps; Packet Forwarding Rate: 2.98 Mpps; Optical Interface: SC; Fiber Type: Single-mode bidirectional fiber; Transmission Distance: 3 km; Wavelength: Tx1550 nm/Rx1310 nm; Transmit Power: -12 ~ -4 dBm; Receiver Sensitivity: ≤ -22 dB; EMC: CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020); Safety: CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)); Chemistry: Reach (Regulation (EC) No.1907/2006)
