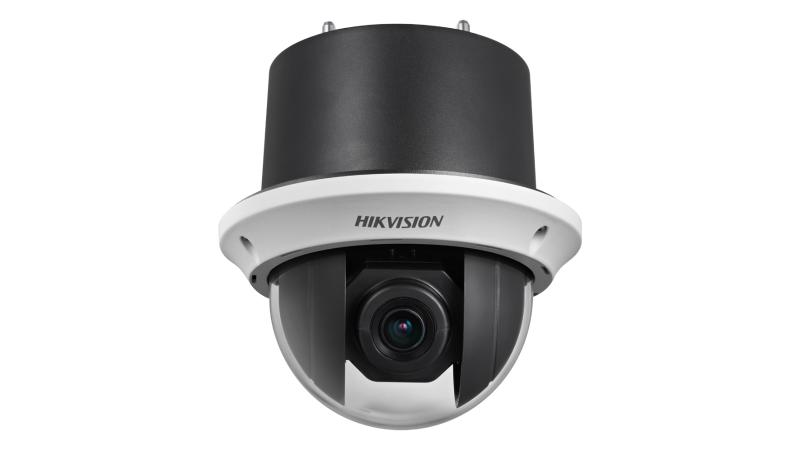

Hikvision 4-inch 2 MP 15X Powered by DarkFighter Analog Speed Dome

Specifications

Image Sensor: 1/2.8″ Progressive Scan CMOS; Max. Resolution: 1920 × 1080; Min. Illumination: Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001 Lux @(F1.6, AGC ON); Shutter Speed: PAL: 1/1 s to 1/10,000 s
NTSC: 1/1 s to 1/10,000 s; Day & Night: IR cut filter; Zoom: 15 × optical, 16 × digital; Focal Length: 5 mm to 75 mm, 15 × optical; FOV: Horizontal FOV: 53.8° to 4.0° (wide to tele)
Vertical FOV: 31.9° to 2.3° (wide to tele)
Diagonal FOV: 60.4° to 4.6° (wide to tele); Focus: Auto, semi-auto, manual; Aperture: F1.6 to F3.5; Zoom Speed: Approx. 2.4 s (optical, wide to tele); Movement Range (Pan): 360° endless; Movement Range (Tilt): -5° to 90° (auto flip); Pan Speed: Pan manual speed: 0.1° to 100°/s
Pan preset speed: 100°/s; Tilt Speed: Tilt manual speed: 0.1° to 80°/s
Tilt preset speed: 80°/s; Proportional Pan: Rotation speed can be adjusted automatically according to zoom multiples; Presets: 256; Preset Freezing: Yes; Patrol Scan: 10 patrols, up to 32 presets for each patrol; Pattern Scan: 5 patterns, record time over 10 minutes for each scan; Park Action: Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None; PTZ Status Display: Yes; Scheduled Task: Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None; Power-off Memory: Yes; Frame Rate: 50 Hz: 25 fps @(1920 × 1080)
60 Hz: 30 fps @(1920 × 1080); Protocols: UTC protocol (or HIKVISION-C protocol in previous DVR); Image Settings: AGC, white balance; Wide Dynamic Range (WDR): ≥ 120 dB; Image Stabilization: EIS; Image Enhancement: BLC, HLC, 3D DNR; Privacy Mask: 8 programmable privacy masks; Regional Focus: Yes; Video Output: Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC); Alarm: 2 alarm inputs, 1 alarm output; RS-485: Half-duplex mode
Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol; Power: 12 VDC, max. 12 W; Dimension: DS-2AE4215T-D3(D) (Indoor): Ø 165 mm × 179.5 mm (Ø 6.5″ × 7.1″)
DS-2AE4215T-D3(D) (In-ceiling): Ø 165 × 168 mm (Ø 6.5″ × 6.6″); : Approx. 2 kg (4.41 lb.); Operating Condition: -10° C to 50° C (14° F to 122° F). Humidity 90% or less; Language: English; Protection: TVS 4,000 V lightning protection, surge protection and voltage transient protection
