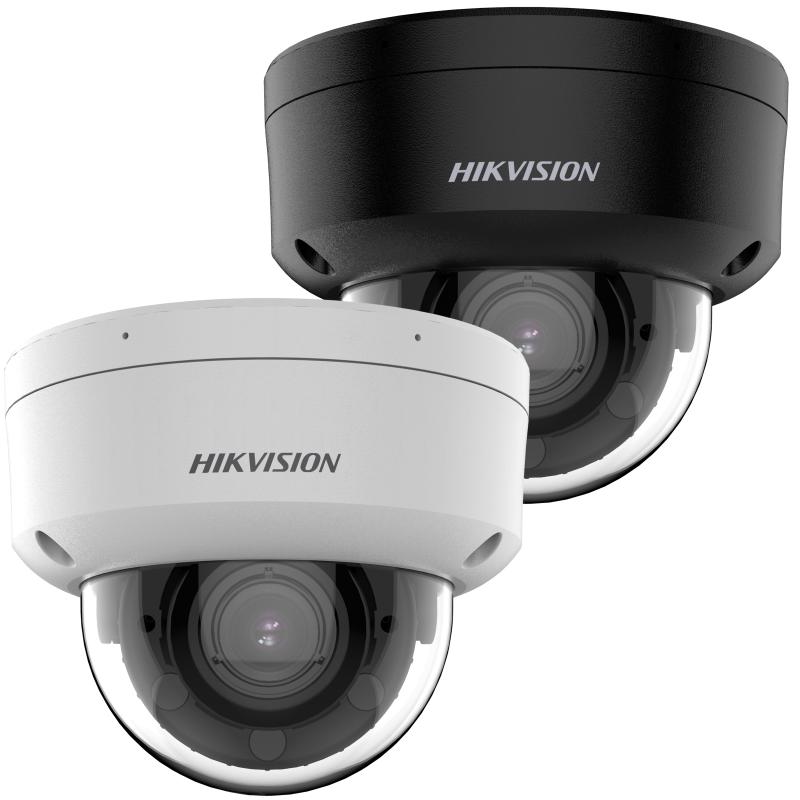

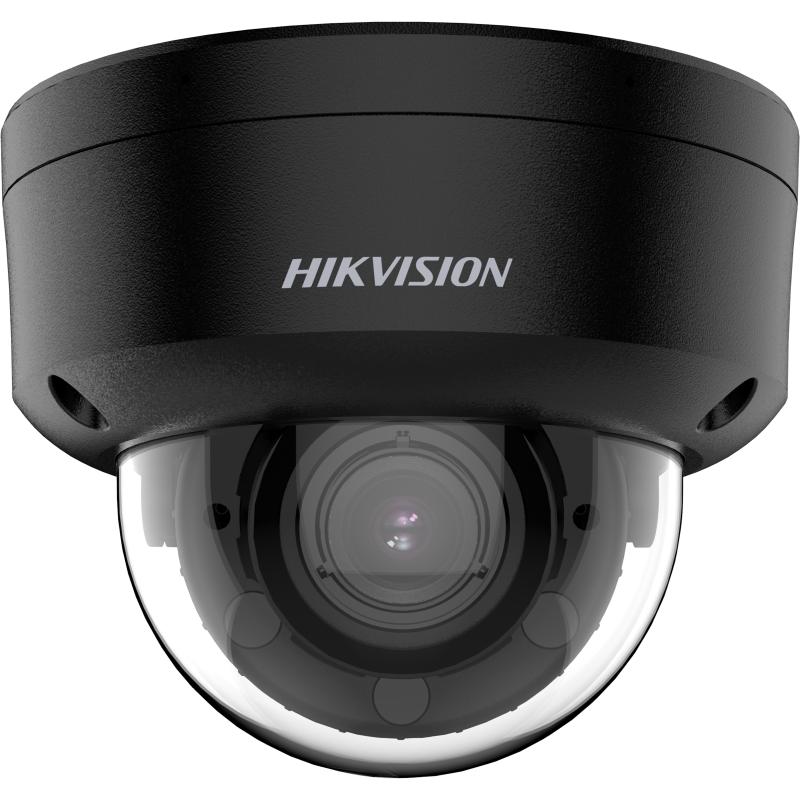

Hikvision 4 MP AcuSense Motorized Varifocal Dome Network Camera

Specifications

Image Sensor: 1/2.9″ Progressive Scan CMOS; Max. Resolution: 2688 × 1520; Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR; Shutter Time: 1/3 s to 1/100,000 s; Day & Night: IR cut filter; Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°; Lens Type: Varifocal lens, motorized lens, 2.7 to 13.5 mm; Focal Length & FOV: 2.7 to 13.5 mm, horizontal FOV 102.4° to 31.2°, vertical FOV 54.7° to 17.6°, diagonal FOV 122.1° to 35.8°; Lens Mount: Ø14; Iris Type: Auto-iris; Aperture: F1.6; DORI: 2.8 to 12 mm: D: 64 m to 198 m, O: 25.4 m to 78.6 m, R: 12.8 m to 39.6 m, I: 6.4 m to 19.8 m; Supplement Light Range: Up to 40 m; Supplement Light Type: IR; Smart Supplement Light: Yes; IR Wavelength: 850 nm; Main Stream: 50 Hz:
25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
30 fps (2688 × 1520, 1920 × 1080, 1280 × 720); Sub-Stream: 50 Hz:
25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz:
30 fps (1280 × 720, 640 × 480, 640 × 360); Third Stream: 50 Hz:
10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz:
10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.; Fourth Stream: 50 Hz:
10 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz:
10 fps (1280 × 720, 640 × 480, 640 × 360)
*Fourth stream is supported under certain settings.; Video Compression: Main stream: H.265/H.264/H.264+/H.265+,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264,
Fourth stream: H.265/H.264/MJPEG
*Third stream and fourth stream are supported under certain settings.; Video Bit Rate: 32 Kbps to 8 Mbps; H.264 Type: Baseline Profile/Main Profile/High Profile; H.265 Type: Main Profile; Scalable Video Coding (SVC): H.264 and H.265 encoding; Bit Rate Control: CBR,VBR; Region of Interest (ROI): 5 fixed regions for main stream and sub-stream; Target Cropping: Yes; Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC; Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC); Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/48 kHz; Environment Noise Filtering: Yes; Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets; Simultaneous Live View: Up to 6 channels; API: ONVIF (Profile S, Profile G), ISAPI, SDK, ISUP; Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface; User/Host: Up to 32 users
3 user levels: administrator, operator, and user; Client: iVMS-4200, Hik-Connect, Hik-Central; Network Storage: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.; Web Browser: Plug-in required live view: IE11,
Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+,
Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+; Image Parameters Switch: Yes; Day/Night Switch: Day, Night, Auto, Schedule; Image Settings: Rotate mode; Wide Dynamic Range (WDR): 120 dB; SNR: ≥ 52 dB; Image Enhancement: BLC, HLC, 3D DNR; Privacy Mask: 8 programmable polygon privacy masks; Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port; Audio: Built-in Microphone: Arrayed dual-microphone
1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium; On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB; Alarm: 1 input, 1 output (max. 24 VDC/24 VAC, 1 A); Reset Key: Yes; Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception; Smart Event: Unattended baggage detection, object removal detection, loitering detection, people gathering detection, people running detection, parking detection, video quality diagnosis; Linkage: Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture; Perimeter Protection: Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle); Power: 12 VDC ± 25%, 0.88A, max.10.56 W, Ø5.5 mm coaxial power plug, reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 12.5 W; Material: Metal; Dimension: Ø121.5 mm × 97.6 mm (Ø4.8″ × 3.8″); Package Dimension: 150 mm × 150 mm × 141 mm (5.9″ × 5.9″ × 5.6″); : Approx. 600 g (2.0 lb.); With Package Weight: Approx. 840 g (3.3 lb.); Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing); Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing); Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian; General Function: Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding; EMC: CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7; Safety: UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,
LOA: IEC/EN 60950-1; Environment: CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006; Protection: IP67: IEC 60529-2013,IK10: IEC 62262:2002
