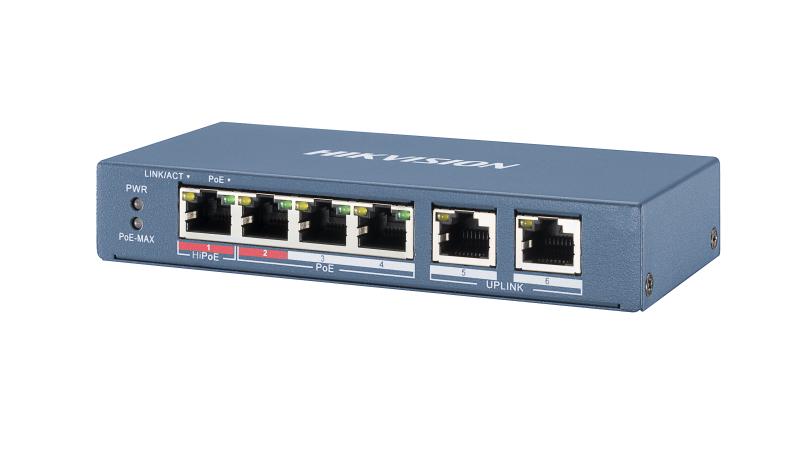

Hikvision 4 Port Fast Ethernet Unmanaged POE Switch DS-3E0106HP-E（O-STD）

Specifications

Shell: Metal material, fan-free design; Net Weight: 0.24 kg (0.53 lb); Gross Weight: 0.77 kg (1.70 lb); Dimensions (W × H × D): 145 mm × 25.6 mm × 68.45 mm (5.7” × 1.0” × 2.7”); Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F); Operating Humidity: 5% to 95% (no condensation); Relative Humidity: 5% to 95% (no condensation); Power Supply: 48 VDC, 1.35 A; Max. Power Consumption: 65 W; Power Consumption in Idle: 5 W; Installation Mode: Desk-Mounted,Wall-Mounted; Surge Protection: 6 KV; Ports: 4 × 10/100 Mbps PoE port,2 × 10/100 Mbps RJ45 port; MAC Address Table: 2 K; Switching Capacity: 1.20 Gbps; Packet Forwarding Rate: 0.89 Mpps; Internal Cache: 768 Kbits; PoE Standard: IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt; PoE Power Pin: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-); PoE Port: Hi-PoE: Port 1
PoE: Ports 2 to 4; Max. Port Power: Port 1: 60 W
Ports 2 to 4: 30 W; PoE Power Budget: 60 W; Long Range: Ports 1 to 4: up to 300 m
Long range performance may vary depend on camera model or cable condition.; VIP Port: Ports 1 to 2: data on VIP ports is preferentially forwarded when bandwidth resources are insufficient.; EMC: FCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015); Safety: UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017); Chemistry: CE-RoHS (2011/65/EU)
