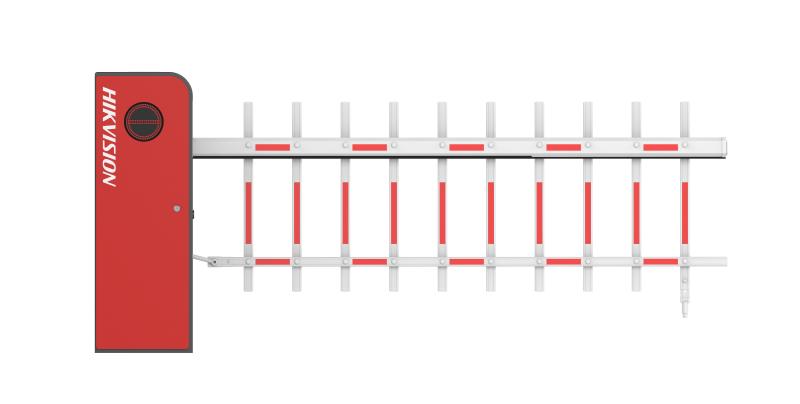

Hikvision 42 Series Fence Pole Barrier Gate DS-TMG423/B

Specifications

Barrier Housing Dimensions
(L × W × H): 1060 × 370 × 262 mm (41.73 × 14.57 × 10.31 inch); Body Weight: 43 ± 3 kg (94.8 ± 6.61 lb.); Body Dimensions (with Package, Without Boom Pole)
(L × W × H): 1266 × 504 × 626 mm (49.84 × 19.84 × 24.65 inch); Body Weight (with Package, Without Boom Pole): 47 ± 3 kg (103.61 ± 6.61 lb.); Barrier Housing Material: SGCC; Barrier Housing Thickness: 1.5 mm; Barrier Housing Door Thickness: 1.2 mm; Barrier Housing Color: Iron gray; Barrier Housing Door Color: Orange red; Boom Pole Installation Height: 885 mm; Body Indicators: With body indicator. Green: arrow indicator. Red: passing prohibition indicator.; Rising Speed: 4m: 3s; Falling Speed: 4m: 3s; Boom Pole Direction: DS-TMG423-L/B: Left
DS-TMG423-R/B: Right; Motor Type: DC brushless motor; Matched Boom Pole Type: Fence boom pole; Boom Pole Falling Delay: 10 s by default (configurable), min. 2 s (every 2 s followed a gap); Number of Cycles: 5,000,000; Working Voltage: 220 VAC; Consumption: Max. 176 W; Temperature and Humidity: Temperature: -30 °C to 60 °C (-22 °F to 140 °F),Humidity: ≤ 90%; Rising Boom Pole for Poweroff: Optional, not supported by default; Duty Cycle: 100%; RS-485: 1 group; Rising to Limit: 1 group; Falling to Limit: 1 group; Open: 1 group; Close: 1 group; Stop: 1 group; IR/Vehicle Detector/Radar: 1 group; Traffic Signal Light: 1 group, external power supply required, max. 220 VAC supported; Boom Pole Color: White background with red bar; Boom Pole Weight: 9.65 ± 0.3 kg (21.27 ± 0.66 lb.); Boom Pole Dimensions (with Package): 4 m: 230 × 90 × 4300 mm (9.06 × 3.54 × 169.29 inch); Boom Pole Weight (with Package): 4 m: 11.34 ± 0.3 kg (25 ± 0.66 lb.); Boom Pole Dimensions: 4 m: 1261.5 × 92.5 × 4000 mm (49.67 × 3.64 × 157.48 inch); Boom Pole Material: AL6061; RF: CE-RED
EN 300220-1 V3.1.1
EN 300220-2 V3.1.1
EN 301489-1 V2.2.3
EN 301489-3 V2.1.1
EN IEC 62311: 2020; EMC: CE-EMC：
EN 55032: 2015/A11: 2020 + A1: 2020,
EN IEC 61000-3-2: 2019/A1: 2021,
EN 61000-3-3: 2013 + A1: 2019/A2: 2021,
EN 50130-4: 2011+A1: 2014; Security: CE-LVD:
EN 62368-1: 2014/A11: 2017
CB:
IEC 62368-1: 2014
IEC 62368-1: 2018; Environment: ROHS; Protection: IP54, IK09
