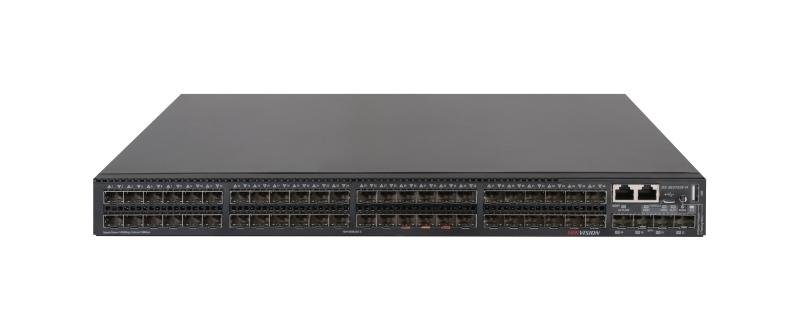

Hikvision 48 Port Fiber Core Switch DS-3E3752F-H

Specifications

Shell: Metal; Net Weight: 6.70 kg (14.77 lb); Gross Weight: 7.70 kg (16.97 lb); Dimensions (W × H × D): 440.00 mm × 360.00 mm × 43.60 mm (17.32” × 14.17” × 1.71”); Operating Temperature: -5 °C to 45 °C (23 °F to 113 °F); Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F); Operating Humidity: 10% to 95% (no condensation); Relative Humidity: 5% to 95% (no condensation); Power Supply: AC：100 V～240 V AC，50/60 Hz; Installation Mode: Rack (equipped with mounting ears); Max. Power Consumption: Single AC input: 130 W Dual AC inputs: 134 W Single DC input: 132 W Dual DC inputs: 140 W; Ports: 48 × Gigabit fiber optical port,4 × 10G fiber optical port; MAC Address Table: 64 K; Internal Cache: 4 Mbits; Switching Capacity: Whole-Device Performance: 336 Gbps
Port Performance: 216 Gbps; Packet Forwarding Rate: Whole-Device Performance: 252 Mpps
Port Performance: 160.7 Mpps; VLAN: Port-based VLAN
MAC-based VLAN
Protocol-based VLAN
QinQ and selective QinQ; IP Routing: Static routing
RIPv1/v2 and RIPng
OSPFv1/v2/v3
BGP and BGP4+ for IPv6; Multicast: IGMP Snooping /MLD Snooping、Multicast VLAN; QoS: 802.1p DSCP remarking
Flexible queue scheduling algorithms based on ports and queues, including SP, WRR, WFQ and SP+WRR
Committed access rate (CAR)
Packet redirection
Port rate limit (receiving and transmitting); ACL: Packet filtering at L2～L4 Traffic classification based on source MAC addresses, destination MAC addresses, source IPv4/IPv6 addresses
Time range-based ACL
VLAN-based ACL
Bidirectional ACL; Security: Hierarchical user management and password protection
Guest VLAN
802.1X authentication, centralized MAC authentication
RADIUS authentication
MAC address learning limit
Port isolation
IP Source guard
Dynamic ARP inspection, preventing man-in-the-middle attacks and ARP DoS attacks
IP/Port/MAC binding; System Management: Configuration through CLI, Telnet, and console port
Ping, Tracert
Loading and upgrading through XModem/FTP/TFTP
SNMPv1/v2/v3 and Web-based NMS
Remote monitoring (RMON ) alarm, event, and history recording
NTP; EMC: CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020); Safety: CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition); Chemistry: CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
