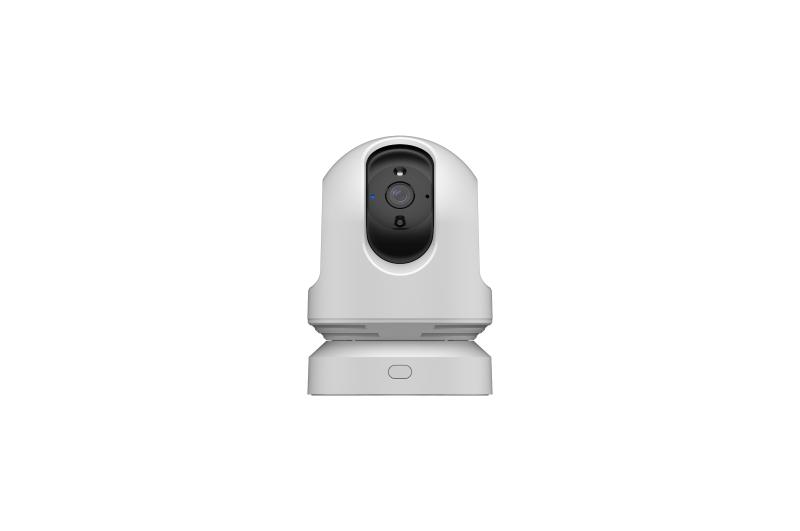

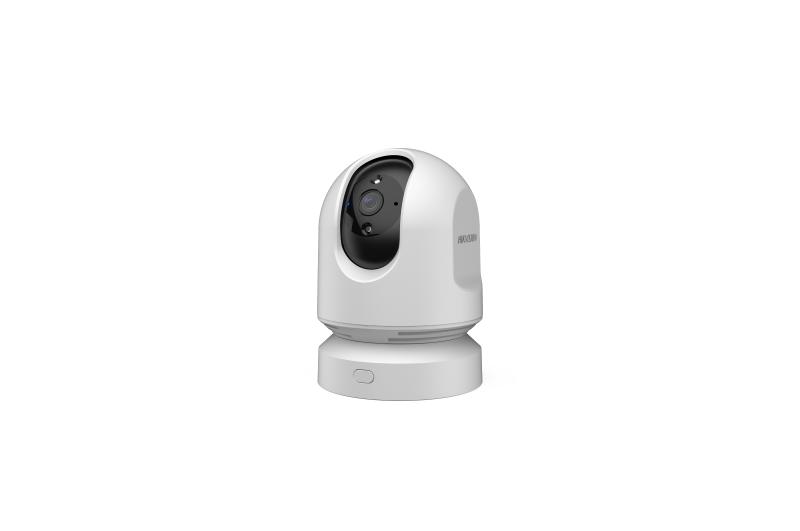

Hikvision 4G Mini Portable Speed Dome iDS-MCD20M/32G/GLE

Specifications

Image Sensor: 1/2.9″ progressive scan CMOS; Zoom: 4x Digital; Max. Resolution: 1920 × 1080; Min. Illumination: Color: 0.015 Lux@ (F1.0, AGC ON); Day & Night: Switch IR Cut Filter Automatically; Focal Length: 3.8 mm fixed lens; Aperture: F2.0; FOV: Horizontal FOV: 80°
Vertical FOV: 44°
Diagonal FOV: 98°; Video Compression: H.264, H.265; Video Format: PS; Main Stream: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 704 × 288, 352 × 288); Sub-Stream: 25 fps (1280 × 720, 704 × 576, 704 × 288, 352 × 288); Audio Compression: G.711ulaw, G.711alaw, G.722.1; Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw), 16 Kbps (G.722.1); Image Format: JPEG; RAM: 128MB; ROM: Default 32 GB, 64 GB/128 GB/256 /512GB optional; IR Range: Up to 10 m; IR Wavelength: 850 nm; Positioning Mode: GPS; Wi-Fi Frequency Band: 2.412 to 2.472 GHz; Cellular Network: Available for models with ‘/GLE’, ‘/GLE/PIR’:
GSM: 850/900/1800/1900
WCDMA: B1/B8
FDD -LTE: B1/B3/B5/B7/B8/B20
TDD -LTE: B38/B40/B41; Wi-Fi Protocol: 802.11 a/b/g/n; Protocol: HTTPS, RTSP, NTP, FTP; API: ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP; Indicator: 1 Indicator for Charging/Working/Recording/Exception; Button: Power; SIM Card: Available for models with ‘/GLE’ : 1 (Nano-SIM card slot); Ethernet: 1 RJ45 10M/100M/1000M self-adaptive ethernet port(s); Charging Interface: Type-C; Extended Storage: 1 Built-in memory card slot, up to 512 GB, supporting TF card; USB: USB 2.0; Audio: 1 built-in mic(s),1 speaker(s); General: RJ45 port, USB port; Pan: 0°~355°; Tilt: -2.5° to 52° (Auto-flip); Operating Condition: -20 °C to 60 °C (-4 °F to 140 °F), Humidity 95% or less (non-condensing); Operating System: Linux; Storage Condition: -30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing); MIC: Supported; Speaker: 1 Built-in speaker, Max. power consumption: 1.2 W, Max. sound pressure level: 95 dB (10 cm); Client: Hik-Connect, HikCentral Pro, HikCentral Master; Web Browser: Plug-in required live view: IE 10+Plug-in free live view: Chrome 57.0+, Firefox 52.0+Local service: Chrome 57.0+, Firefox 52.0+; Dimension: 94.5 mm × 94.5 mm × 132 mm (3.72″ × 3.72″ × 5.2″); Power: 5 VDC, 2.0 A, max. 10 W; : 380 g (without mounting) (1.54 lb.); Installation Method: Desk-Mounted, Wall-Mounted, Tripod-Mounted, Movable Bracket; Packing List: 1 × USB cable, 1 × wall mounted bracket; Battery Type: Lithium-ion battery, integral; Capacity: 3220 mAh; Charging Time: ≤ 4 h; Battery Life: Up to 12 h in 720p resolution¹; RF: EN 300 328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G); EN 55032:2015; EN 61000-3-2:2014; EN 61000-3-3:2013; EN 50130-4:2011 +A1:2014);; EMC: CE-EMC: EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; Safety: CB: IEC 62368-1: 2014+A11, IEC 62368-1: 2018
CE-LVD: EN 62368-1: 2014/A11: 2017, EN IEC 62368-1:2020+A11:2020
CE-LVD: EN 62368-1: 2014/A11: 2017; Environment: CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006; Warranty: 2 years for the device, 1 year for the battery
