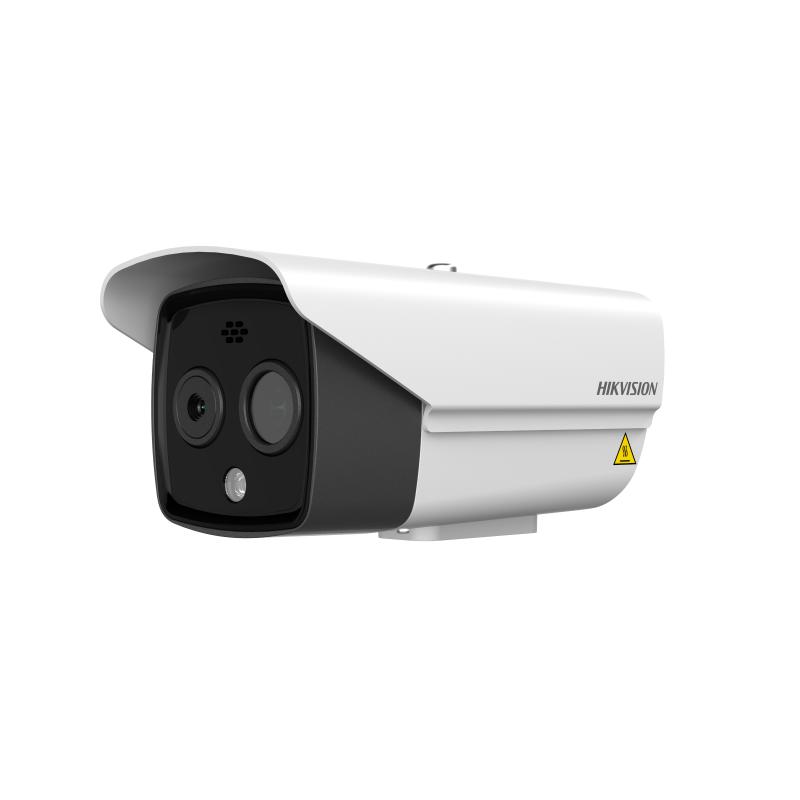

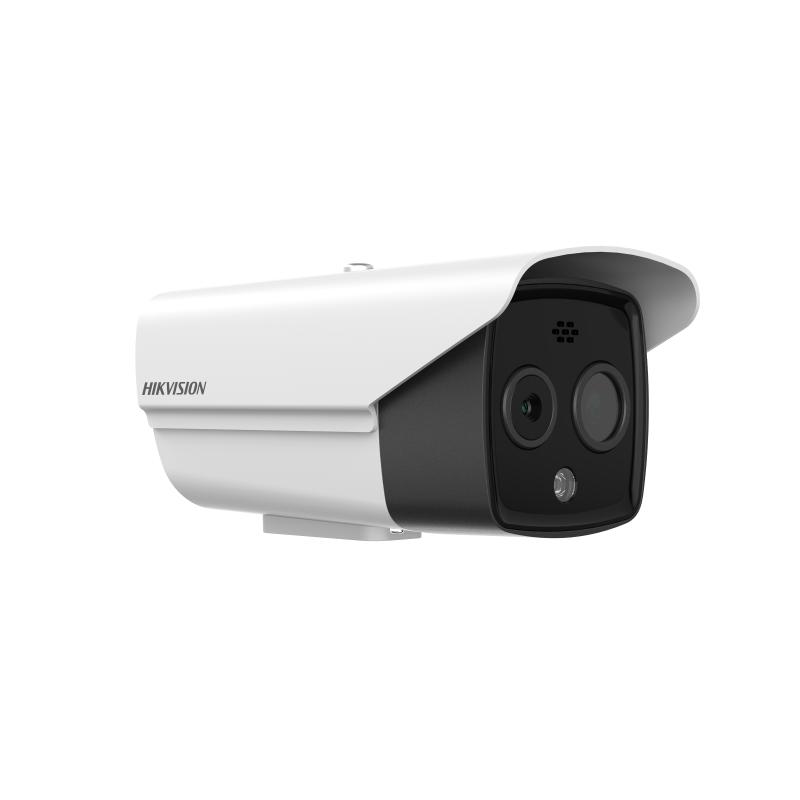

Hikvision 4G Thermal & Optical Bi-spectrum Network Bullet Camera DS-2TD2628-10/QA/GLT(LA)

Specifications

Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays; Resolution: 256 x 192; Pixel Pitch: 12 μm; Spectral Range: 8 μm to 14 μm; NETD: ≤ 40 mK (@25° C,F# = 1.0); Focal Length: 9.7 mm; Focus Mode: Athermalized; IFOV: 1.24 mrad; Aperture: F1.0; Field of View: 18.0° × 13.5° (H × V); Min. Focusing Distance: 1.5 m; Digital Zoom: ×2, ×4; Image Sensor: 1/2.7″ Progressive Scan CMOS; Resolution: 2688 × 1520; Min. Illumination: 0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR; Field of View: 39.4°(H) x22.1°(V); Focal Length: 8 mm; Aperture: F 1.6; Shutter Speed: 1 s to 1/100,000 s; White Balance: MWB/AWB1/Locked WB/Fluorescent Lamp/Incandescent Lamp/Warm Light Lamp/Natural Light; Day & Night Mode: IR Cut Filter with Auto Switch; WDR: 120 dB; Bi-spectrum Image Fusion: Display the details of optical channel on thermal channel; Target Coloration: Yes. Supported in white hot and black hot mode; IR Distance: Up to 30 m; IR Intensity and Angle: Automatically adjusted; White Light Range: Up to 30 m; Visual Alarm: Yes. White light alarm with adjustable flashing frequencies; Audio alarm: Yes, for three types of audible alarm (VCA and Temperature Exception)
3 preset voice alerts (one for each)
6 importable user-defined voice alerts (6 options shared in the two types); VCA: 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.; Temperature Measurement: 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line); Temperature Range: -20°C to 150°C (-4°F to 302°F); Temperature Accuracy: ± 8°C (± 14.4°F); Main Stream: Thermal:
25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240)
Optical:
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720); Sub-stream: Thermal:
25 fps (704 × 576, 640 × 512, 320 × 240)
Optical:
50 Hz: 25 fps (704 × 576, 352 × 288)
60 Hz: 30 fps (704 × 480, 352 × 240); Video Compression: Main Stream: H.265/H.264
Sub-Stream: H.265/H.264/MJPEG; Audio Compression: G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM; Protocols: IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,SFTP,SRTP; Network Storage: MicroSD/SDHC/SDXC card (32G inside) (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR); API: ISAPI, HIKVISION SDK, and third-party management platform, Open Network Video Interface (Profile S, Profile G); Simultaneous Live View: Up to 20 channels; User/Host level: Up to 32 users, 3 levels: Administrator, Operator, User; Security: User authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering; Client: iVMS-4200, Hik-Connect; SIM Card Type: MicroSIM; Frequency: LTE FDD: B1/2/3/4/5/7/8/12/17/28/66
LTE TDD: B38/40
WCDMA: B1/2/3/4/5/8
GSM/GPRS/EDGE: 850/900/1800MHz; Standard: LTE FDD/LTE TDD/WCDMA/GSM/GPRS/EDGE; Alarm Input: 2, alarm input (0-5 VDC); Alarm Output: 2, alarm output (alarm response actions configurable); Alarm Action: Linkage Method Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output, Email; Audio Input: 1, 3.5 mm Mic in/Line in interface
Line input: 2 to 2.4 V [p-p], output impedance: 1 KΩ ± 10%; Audio Output: Linear level, impedance: 600 Ω; Communication Interface: 1, RJ45 10 M/100 M Self-adaptive Ethernet interface.
1, RS-485 interface (half duplex); Menu Language: 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil); Power Supply: 12 VDC ± 25%, φ 5.5 mm coaxial power plug
PoE (802.3af, class 3); Power Consumption: 12 VDC ± 25%: 0.83 A, Max. 10 W
PoE (802.3af, class 3): 36 V to 57 V, 0.28 A to 0.18 A, Max. 10 W; Working Temperature/Humidity: Temperature: -40°C to 65°C (-40°F to 149°F)
Humidity: 95% or less; Protection Level: IP67 Standard ,IK10-rated housing
TVS 4000V lightning protection, surge protection, voltage transient protection; Dimensions: 208.9 mm × 106 mm × 105.2 mm (8.22″ × 4.17″ × 4.14″); : 1332 g (2.94 lb); VCA Range for Humans: 80 m; VCA Range for Vehicles: 240 m
