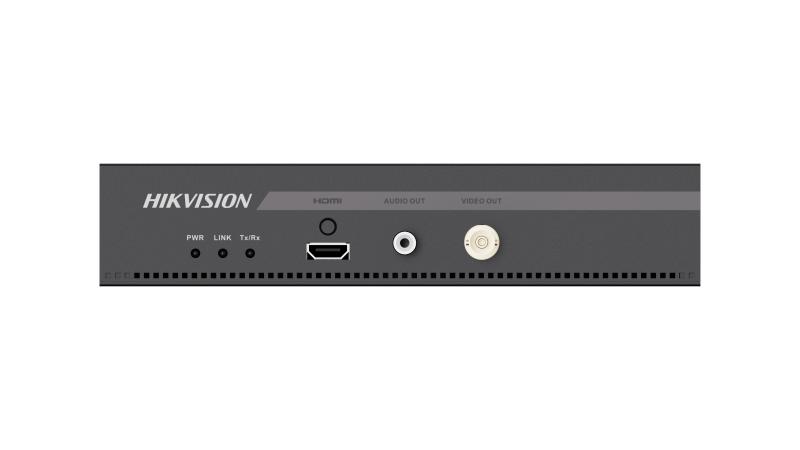

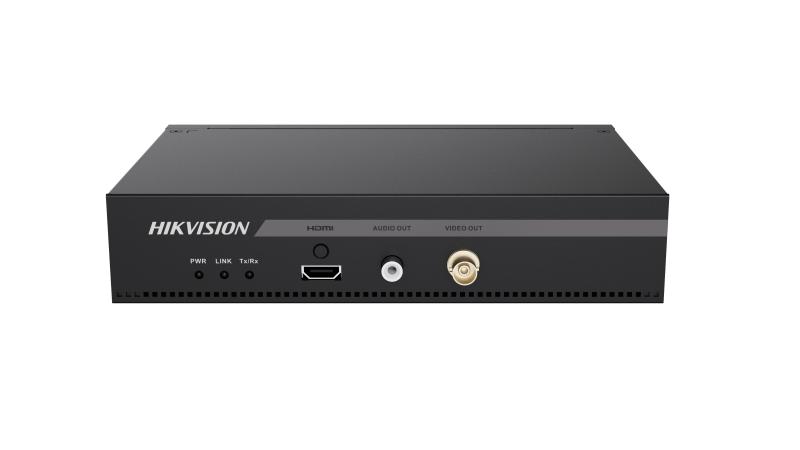

Hikvision 4K Decoder DS-6901UDI(C)

Specifications

Product Model: DS-6901UDI(C); Serial Interface: 1 × RS-232 serial port (RJ-45) + 1 × RS-485 serial port; Network Interface: 1 × 10/100/1000 Mbps self-adaptive Ethernet interface (RJ-45); Alarm In Interface No.: 8 channels of alarm input; Alarm Out Interface No.: 8 channels of alarm output; Power Interface: External 12 VDC; Device Consumption: < 15 W; Video Walls: 1; Video Wall Scale: ≤ 1; Split Window: Supported; Window Division per Output Port: 1, 2, 4, 6, 8, 9, 12, 16; Layers Per Screen: 4 × 1080p or 2 × 4K; Layers per Device: Layers Per Screen × Output Interface(s); Scenes: 64; Plans: 100 view groups on the HCP client; Working Temperature: -10 °C to 55 °C (14 °F to 131 °F); Working Humidity: 0% RH to 90% RH; Net Weight: ≤ 1.12 kg (2.47 lb); Gross Weight: ≤ 1.17 kg (2.58 lb); Dimensions (W × H × D): 220 mm × 45 mm × 148 mm (8.66 inch × 1.77 inch × 5.83 inch); Packing List: 1 × decoder, 1 × regulatory compliance and safety information manual, 1 × power adapter, 1 × grounding cable; Video Output Interface Type: HDMI 1.4; Video Output Interfaces: 1; Max. Video Output Resolution: 4K; Video Output Resolution: 3840 × 2160@30 Hz, 2560 × 1440@30 Hz, 1920 × 1200@60 Hz, 1920 × 1080@60 Hz, 1920 × 1080@50 Hz, 1680 × 1050@60 Hz, 1600 × 1200@60 Hz, 1280 × 1024@60 Hz, 1280 × 720@60 Hz, 1280 × 720@50 Hz, 1024 × 768@60 Hz; Loading Capacity for Video Output to LED: Single port load: 2600000, Width: 144 - 3840, Height: 144 - 2160; Video Output Interface (BNC): 1 channels of CVBS output (BNC port); Video Output Resolution (BNC): PAL: 704 × 576@25 Hz NTSC: 704 × 480@30 Hz; Video Decoding Format: H.264, H.265, Smart264, Smart265, MJPEG; Video Decoding Channels: 16; Video Decoding Capability: 1) H.264/H.265 format: Supports decoding 1-channel 32 MP/24 MP, 2-channel 12 MP, 4-channel 8 MP, 5-channel 6 MP, 9-channel 4 MP, 16-channel 1080p and lower resolution in real time. 2) MJPEG format: 4-channel of 1080p and lower resolution 3) HIK264 format: 2-channel of 720p and lower resolution; Video Decoding Resolution: Up to 32 MP; Audio Output Interface Type: Embedded HDMI audio output port or RCA; Audio Output Interfaces: 1; Audio Decoding Format: G711A, G711U, G722.1, G726-16/U/A, MPEG, AAC-LC, PCM
