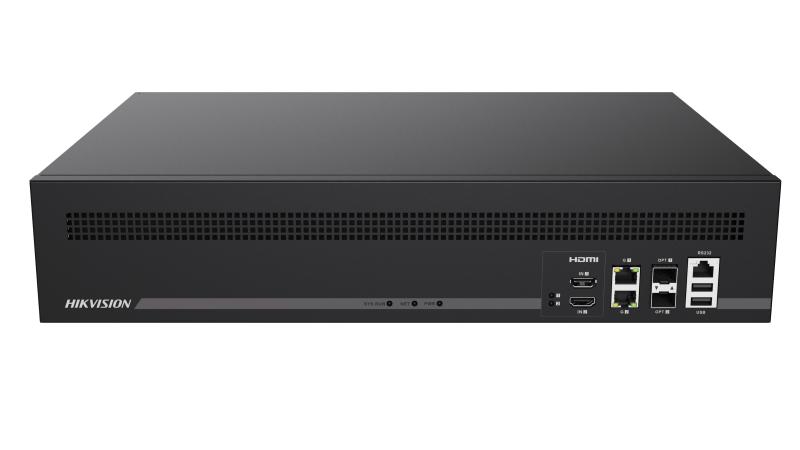

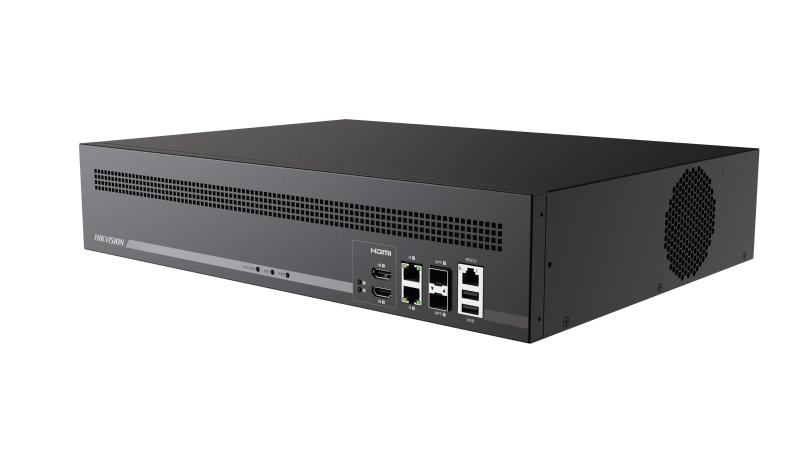

Hikvision 4K Decoder DS-6916UDI(C)

Specifications

Product Model: DS-6916UDI(C); Network Interface: 2 × 10/100/1000 Mbps self-adaptive Ethernet interface (RJ-45)
2 × 100 BASE-FX/1000 BASE-X port
Supports the self-adaption between the optical port and electrical port.; Alarm In Interface No.: 8 channels of alarm input; Alarm Out Interface No.: 8 channels of alarm output; Serial Interface: 1 × RS-232 serial port (RJ-45) + 1 × RS-485 serial port; USB Interface: 2 × USB 2.0 port; Power Interface: Embedded 220 VAC; Device Consumption: < 150 W; Video Walls: 1; Video Wall Scale: ≤16; Split Window: Supported; Window Division per Output Port: 1, 2, 4, 6, 8, 9, 12, 16, 25, 36; Input Source Copy Capability: Not supported; Layers Per Screen: 4 × 1080p or 2 × 4K; Layers per Device: Layers Per Screen × Output Interface(s); Scenes: 64; Plans: 100 view groups on the HCP client; Working Temperature: -10 °C to 55 °C (14 °F to 131 °F); Working Humidity: 0％ RH to 90％ RH; Net Weight: ≤ 6.4 kg (14.11 lb); Gross Weight: ≤ 7.8 kg (17.20 lb); Dimensions (W × H × D): 440 mm × 88 mm × 321 mm (17.32 inch × 3.46 inch × 12.64 inch); Packing List: 1 × decoder, 1 × regulatory compliance and safety information manual, 1 × mounting bracket, 1 × power cord, 4 × pads, 1 × grounding cable; Audio Input Interfaces: 2; Audio Input Interface Type: Embedded HDMI; Video Input Interfaces: 2; Video Input Interface Type: HDMI 1.4; Max. Input Resolution: 4K (only in odd-numbered port); Video Input Resolution: 3840 × 2160@30 Hz, 1920 × 1200@60 Hz, 1920 × 1080@60 Hz, 1920 × 1080@50 Hz, 1280 × 720@60 Hz, 1280 × 720@50 Hz, 1600 × 1200@60 Hz, 1280 × 960@60 Hz, 1680 × 1050@60 Hz, 1440 × 900@60 Hz, 1366 × 768@60 Hz, 1280 × 1024@60 Hz, 1024 × 768@60 Hz Supports custom resolution. For 60 Hz input, width ranges from 800 to 1920, and height ranges from 600 to 1200. For 30 Hz input, width ranges from 800 to 3840, and height ranges from 600 to 2160. Width: 4 alignment, height: 2 alignment.; Video Encoding Format: H.264 (default), H.265; Video Encoding Channels: 2; Video Encoding Capability: 1 channel of 4K@30 Hz or 2 channels of 1080p@60 Hz; Audio Encoding Format: G722.1, G711_U, G711_A, AAC; Video Output Interface Type: HDMI 1.4; Video Output Interface(s): 16; Max. Output Resolution: 4K; Video Output Resolution: 3840 × 2160@30 Hz, 2560 × 1440@30 Hz, 1920 × 1200@60 Hz, 1920 × 1080@60 Hz, 1920 × 1080@50 Hz, 1680 × 1050@60 Hz, 1600 × 1200@60 Hz, 1280 × 1024@60 Hz, 1280 × 720@60 Hz, 1280 × 720@50 Hz, 1024 × 768@60 Hz; Video Output Interface (BNC): 4 channels of CVBS output (BNC port); Video Output Resolution (BNC): PAL: 704 × 576@25 Hz NTSC: 704 × 480@30 Hz; Loading Capacity for Video Output to LED: Single port load: 2600000, Width: 144 - 4096, Height: 144 - 2160, Width must be a multiple of 2 and height must be a multiple of 2; Video Decoding Format: H.264, H.265, SmartH.264, SmartH.265, MJPEG; Video Decoding Resolution: Up to 32 MP; Video Decoding Channel(s): 256; Video Decoding Capability: 1) H.264/H.265 format: Support decoding 8-channel 32 MP/24 MP, 16-channel 12 MP, 32-channel 8 MP, 40-channel 6 MP, 64-channel 4 MP, 128-channel 1080p, 256-channel 720p and lower resolution in real time. Every four output ports (HDMI output ports 1 to 4, 5 to 8, 9 to 12, and 13 to 16) form a group and 4 groups share the decoding capabilities. Each group supports up to 4-channel smart decoding or 4-channel encrypted stream decoding. The smart decoding allows the device to decode the smart alarm events from the network cameras. 2) MJPEG format: 16-channel of 1080p and lower resolution 3) HIK264 format: 8-channel of 720p and lower resolution; Audio Output Interface(s): 16; Audio Output Interface Type: Embedded HDMI audio output port or independent DB15-to-BNC audio output port; Audio Decoding Format: G711A, G711U, G722.1, G726-16/U/A, MPEG, AAC-LC, PCM
