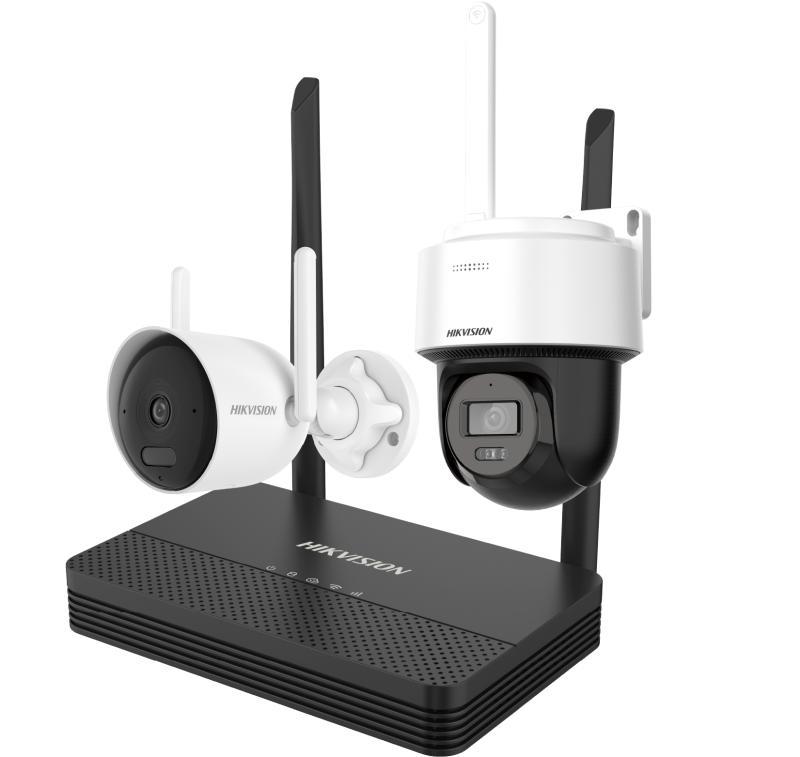

Hikvision 4MP Bullet + 4MP PT Dome WiFi NVS Kit NKS424WBPH

Specifications

Camera Case Type: Bullet; Image Sensor: 1/2.7″ Progressive Scan CMOS; Min. Illumination: Bullet：Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux @ (F1.6, AGC ON)
Dome：Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0.001 Lux @ (F1.6, AGC ON),0 Lux with IR; Day &Night: IR cut filter; WDR: Digital WDR; Angle Adjustment: Bullet：Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
Dome：Pan: 0° to 345°,tilt: 0° to 80°; Protection Level: IP66; Wi-Fi Support: Yes; Focal Length: 2.8 mm; Aperture: F1.6; Focus: Fixed; FOV: Bullet：horizontal FOV 124°, vertical FOV 70°, diagonal FOV 142°
Dome：horizontal FOV 94°, vertical FOV 49°, diagonal FOV 114°; IR Range: Bullet：IR: up to 30 m;White Light: up to 30 m
Dome：IR : up to 25 m;White light: up to 25 m; Video Compression: Bullet：H264，H265
Dome：H.265, H.264, MJPEG; H.264 Type: Baseline Profile,Main Profile,High Profile; H.265 Type: Main Profile; Video Bit Rate: Bullet：32 Kbps to 4 Mbps
Dome：32 Kbps to 8 Mbps; Audio Compression: G.711(ulaw)/ (AAC-LC); Audio Bit Rate: 64 Kbps (G.711ulaw)/16 to 64 Kbps (AAC-LC); Audio Sampling Rate: 8 kHz/16 kHz; Environment Noise Filtering: Yes; Max. Resolution: 2560 × 1440; Main Stream: 50 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720); Sub-stream: 50 Hz: 20 fps (768 × 432)
60 Hz: 20 fps (768 × 432); Image Setting: Saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser; Day/Night Switch: Day,Night,Auto,Schedule; Alarm Trigger: Motion detection (support alarm triggering by specified target types (human and vehicle)); Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv4, IPv6, UDP, QoS, UPnP; General Function: Heartbeat,mirror,password protection,anti-banding; Communication Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port; Reset Button: Yes; Power Supply: Bullet：12 VDC ± 25%, 0.6 A, max. 7.2 W,Ø5.5 mm coaxial power plug,reverse polarity protection,*A switching adapter is included in the package.
Dome：12 VDC ± 25%, reverse polarity protection, 0.75 A, max. 9 W, Ø5.5 mm coaxial power plug; Consumption: Bullet：Max. 7.2 W
Dome：Max. 9 W; Working Temperature: Bullet：-30 °C to 50 °C (-22 °F to 122 °F)
Dome：-10 °C to 40 °C (-14 °F to 104 °F); Working Humidity: Humidity 95% or less (non-condensing); Dimension (W × D × H): Bullet：94.1 mm × 75 mm × 174.5 mm (3.7″ × 3.0″ × 6.9″)
Dome：131.9 mm × 163.9 mm × 312.6 mm (5.19″ × 6.45″ × 12.31″); : Bullet：Approx. 270 g (0.6 lb.)
Dome：Approx. 600 g (1.32 lb.); IP Video Input: 4-ch; Incoming/Outgoing Bandwidth: 20 Mbps/20 Mbps; Video Resolution: 6 MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF; Synchronous Playback: 2-ch; Network Interface: 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface; Frequency Band: 2.4 GHz; Antenna Structure: Dual high gain antenna; Transmission Speed: 573Mbps; SD Card: 2 slots,up to 512GB for each card; Power Supply: Yes; Consumption (without HDD and PoE off): ≤ 6 W; Working Temperature: 0 °C to 40 °C (32 °F to 104 °F); Working Humidity: 10 to 90 %; Dimension (W × D × H): 163 x 125 x 26 mm (6.4″ × 4.9″ × 1.0″); Weight (without hard disk): ≤ 500 g (1.1 lb); Accessories: Power cable: 2 × IPC power cables, 1 × NVS power cable
Ethernet cable: RJ45, Cat5e UTP, 1 m; Certification: CE,CB; Weight (with package): ≤ 3 kg (6.6lb)
