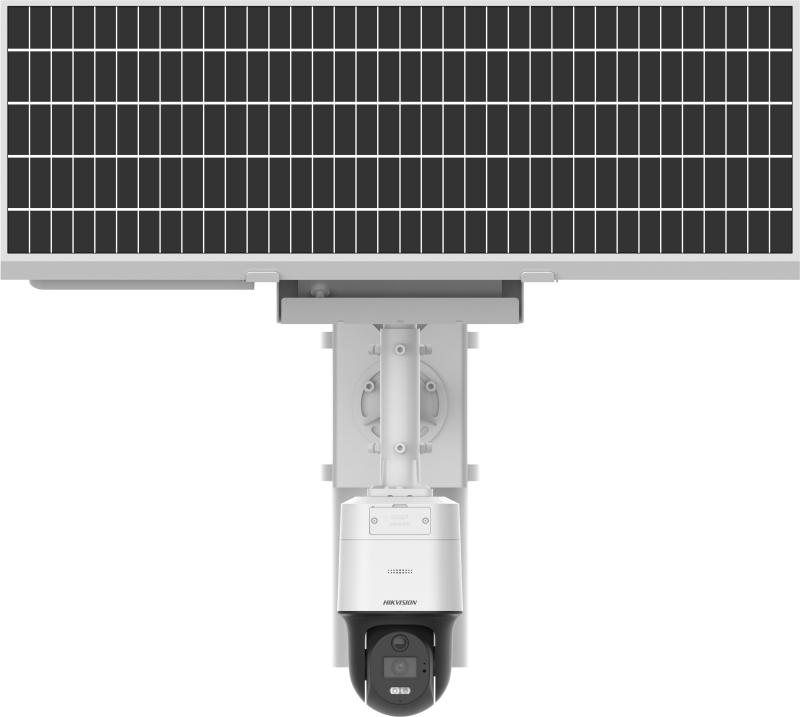

Hikvision 4MP ColorVu Solar-powered Security PT Camera Setup

Specifications

Image Sensor: 1/3″ Progressive Scan CMOS; Max. Resolution: 2688 × 1520; Min. Illumination: Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light; Shutter Time: 1/3 s to 1/100,000 s; Day & Night: 24/7 color imaging; Angle Adjustment: Solar panel: pan: 0° to 358°, tilt: -40° to 0°; camera: pan: 0° to 340°, tilt: -5° to 105°; Lens Type: Fixed focal lens, 4 and 6 mm optional; Iris Type: Fixed; Aperture: F1.0; Depth of Field: 4 mm: 2.7 m to ∞
6 mm: 5.9 m to ∞; Focal Length & FOV: 4 mm, Horizontal FOV: 75°, Vertical FOV: 40°, Diagonal FOV: 89°
6 mm, Horizontal FOV: 49°, Vertical FOV: 27°, Diagonal FOV: 57°; Lens Mount: M12; DORI: 4 mm, D: 82 m, O: 32 m, R: 16 m, I: 8 m
6 mm, D: 120 m, O: 47 m, R: 24 m, I: 12 m; Supplement Light Type: White Light; Supplement Light Range: Performance mode: up to 30 m, proactive mode: up to 10 m; Smart Supplement Light: Yes; Main Stream: 50 Hz: 12.5 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 15 fps (2688 × 1520, 1920 × 1080, 1280 × 720); Sub-Stream: 50 Hz: 12.5 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360); Video Compression: Main stream: H.265/ H.264
Sub-stream: H.265/H.264/MJPEG
H.264+ and H.265+: main stream supports under performance mode; Video Bit Rate: 32 Kbps to 8 Mbps; H.264 Type: Baseline Profile,Main Profile,High Profile; H.265 Type: Main Profile; Bit Rate Control: CBR,VBR; Region of Interest (ROI): 1 fixed region for main stream; Scalable Video Coding (SVC): H.264 and H.265 encoding; Audio Sampling Rate: 8 kHz/16 kHz; Environment Noise Filtering: Yes; Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3; Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC); Security: Password protection, complicated password, basic and digest authentication for HTTP, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface; Simultaneous Live View: Up to 6 channels; API: Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK; Protocols: TCP/IP, ICMP, HTTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP; User/Host: Up to 32 users
3 user levels: administrator, operator, and user; Network Storage: Auto Network Replenishment (ANR); Client: iVMS-4200,Hik-Connect,Hik-Central; Web Browser: Plug-in required live view: IE 10, IE11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+; SIM Card Type: Micro SIM; Uplink and Downlink Data Rate: Cat 4, uplink: 50 Mbps, downlink: 150 Mbps; Frequency: EU:
LTE-TDD: B38/B40/B41
LTE-FDD: B1/B3/B5/B7/B8/B20/B28
WCDMA: B1/B5/B8
GSM: B3/B5/B8
LA:
LTE-TDD: B38/B40
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B17/B28/B66
WCDMA:B1/B2/B3/B4/B5/B8
GSM: B2/B3/B5/B8
US:
LTE-FDD: B2/B4/B5/B12/B13/B17/B66/B71
WCDMA: B2/B4/B5; Standard: LTE-TDD,LTE-FDD,WCDMA,GSM; SNR: ≥ 52 dB; Wide Dynamic Range (WDR): 120 dB; Privacy Mask: 4 programmable polygon privacy masks; Day/Night Switch: Day,Night,Auto,Schedule; Image Enhancement: BLC,HLC,3D DNR; Image Settings: Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser; Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port; On-Board Storage: Built-in eMMC storage, up to 64 GB,
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB,For eMMC storage, 50 GB is available for recording.; Built-in Microphone: Yes; Built-in Speaker: Yes; Reset Key: Yes; Basic Event: Motion detection,video tampering alarm,network disconnected,IP address conflict,illegal login,HDD full,HDD error; Linkage: Upload to NAS/memory card,notify surveillance center,trigger recording,trigger capture,audible warning; Power: Power Consumption and Current:
Typical power scenarios: 1.85 W (4G working)
Standby scenarios: 40 mW
Max. power consumption: 6 W
Power Supply:
12 VDC ± 25%
*For debugging only
40 W (deviation: ± 2 W) Solar panels
Power Interface:
Power supply interface: Ø5.5 mm coaxial power plug
Extened solar panel: four-core aviation connector; Material: Camera: Plastic; Solar panel: Metal; Storage Conditions: -20 °C to 50 °C (-4 °F to 122 °F). Humidity 95% or less (non-condensing); Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian; General Function: Heartbeat,mirror,flash log; Startup and Operating Conditions: -20 °C to 50 °C (-4 °F to 122 °F). Humidity 95% or less (non-condensing); Dimension: 686.6 mm × 442.6 mm × 760 mm (27.03″ × 17.42″ × 29.9″); Package Dimension: 902 mm × 342 mm × 440 mm (35.5″ × 13.5″ × 17.3″); : Approx. 11.70 kg (25.8 lb.); With Package Weight: Approx. 15.01 kg (33.1 lb.); Battery Type: Ternary Lithium; Capacity: 8.4 Ah × 2 packs; Max. Charging Voltage: 12.6 V; Operating Temperature: Charging: -20 °C to 45 °C (-4 °F to 113 °F)
Discharging: -20 °C to 60 °C (-4 °F to 140 °F); Battery Voltage: 9 V to 12.6 V; Battery Life: More than 500 cycles; Cycle Lifetime: Performance mode: 3.6 days,
Proactive mode: 6 days,
Standby mode: 30 days; Battery Weight: Approx. 1400 g (3.1 lb.); EMC: CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
*IC certification is only for the device sold in the North American region. CE and RCM certifications are only for the device sold in the European region.; RF: IC ID (RSS-247(BT or 2.4G)),
CE-RED: EN 301489-1 V2.1.1 (BT or 2.4G), EN 301489-17 V3.1.1 (BT or 2.4G), EN 300328 V2.1.1 (BT or 2.4G), EN 62311: 2008 (BT or 2.4G)
*IC certification is only for the device sold in the North American region. CE certification is only for the device sold in the European region.; Safety: CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
LOA: IEC/EN 60950-1,
*CE and LOA certifications are only for the device sold in the European region.; Environment: CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006,
*CE certification is only for the device sold in the European region.; Protection: IP65: IEC60529-2013
