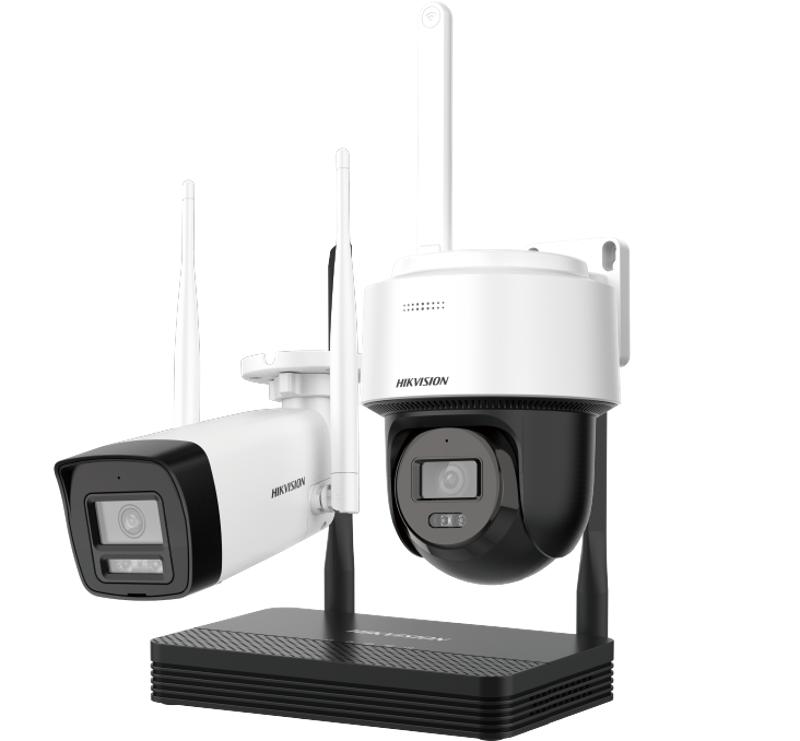

Hikvision 4MP H.265 One bullet + One PTDome WiFi NVS Kit NKS424W03H

Specifications

Camera Case Type: Bullet;Dome; Image Sensor: 1/2.7″ Progressive Scan CMOS; Min. Illumination: Bullet： Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Dome：Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0.001 Lux @ (F1.6, AGC ON),0 Lux with IR; Day &Night: IR cut filter; WDR: DWDR; Angle Adjustment: Bullet: Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
Dome: Pan: 0° to 345°,tilt: 0° to 80°; Protection Level: IP66; Wi-Fi Support: Yes; Focal Length: 2.8 mm; Aperture: F1.6; Focus: Fixed; FOV: horizontal FOV 94°, vertical FOV 49°, diagonal FOV 114°; IR Range: Bullet：Up to 30 m
Dome：IR distance: up to 25 m,White light distance: up to 25 m; Video Compression: H.265;H.264;MJPEG; H.264 Type: Baseline Profile/Main Profile/High Profile; H.265 Type: Main Profile; Video Bit Rate: 32 Kbps to 8 Mbps; Audio Compression: G.711ulaw/AAC-LC; Audio Bit Rate: 64 Kbps (G.711ulaw)/16 to 64 Kbps (AAC-LC); Audio Sampling Rate: 8 kHz/16 kHz; Environment Noise Filtering: Yes; Max. Resolution: 4MP; Main Stream: 50 Hz：25 fps（2560 × 1440，1920 × 1080，1280 × 720）
60 Hz：20 fps（2560 × 1440），24 fps（1920 × 1080，1280 × 720）; Sub-stream: 50 Hz: 25 fps (768 × 432)
60 Hz: 30 fps (768 × 432); Image Setting: Saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser; Day/Night Switch: Auto/Scheduled/Day/Night; Alarm Trigger: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception; Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv6, UDP, QoS, UPnP; General Function: One-key reset, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter; Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port; Reset Button: Yes; Power Supply: Bullet: 12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection,A switching adapter is included in the package.
Dome: 12 VDC ± 25%, reverse polarity protection, 0.75 A, max. 9 W, Ø5.5 mm coaxial power plug; Consumption: Bullet: ≤ 6 W
Dome: ≤ 9 W; Working Temperature: Bullet: -30 °C to 60 °C (-22 °F to 140 °F)
Dome: -10 °C to 40 °C (-14 °F to 104 °F); Working Humidity: 95% or less (non-condensing); Dimension (W × D × H): Bullet: 260.9 mm × 113.9 mm × 67.4 mm (10.3″ × 4.5″ × 2.7″)
Dome: Ø124 mm × 119 mm (Ø4.89″ × 4.68″); : Bullet: 305 g (0.67 lb.)
Dome: 600 g (1.32 lb.); IP Video Input: 4-ch; Incoming/Outgoing Bandwidth: 20 Mbps/20 Mbps; Video Resolution: 6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF; Synchronous Playback: 1-ch; Network Interface: 1, RJ45 10/100M Ethernet interface; Frequency Band: 2.4 GHz; Antenna Structure: High gain antenna; Transmission Speed: 150 Mbps; Transmission Standard: IEEE 802.11b/g/n/ax; SD Card: 32G/64G/128G/256G/512G; Power Supply: 12 VDC; Consumption (without HDD and PoE off): ≤ 6 W; Working Temperature: -10 °C to 55 °C (14 °F to 131 °F); Working Humidity: 10% to 90%; Dimension (W × D × H): 163 x 125 x 26 mm (6.4″ × 4.9″ × 1.0″); Weight (without hard disk): ≤ 500g; Accessories: Power adaptor: 2 × IPC power adaptor, 1 × NVS power adaptor
Ethernet cable: RJ45, Cat5e UTP, 1 m; Certification: CB, CE; Weight (with package): ≤ 2.5 kg (5.5 lb)
