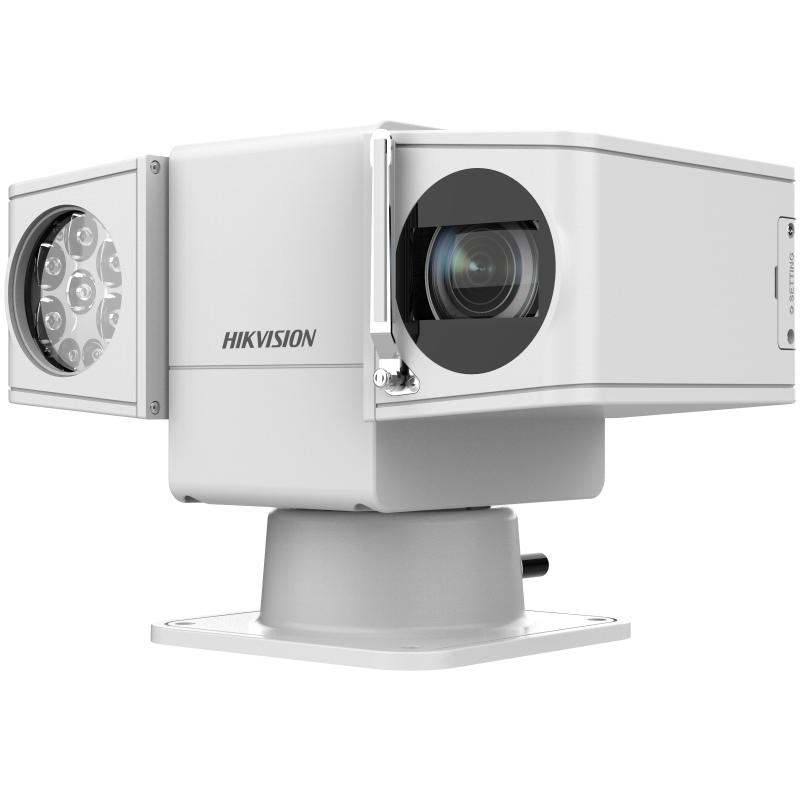

Hikvision 5-inch 2 MP 25X DarkFighter IR Network Positioning System

Specifications

Image Sensor: 1/1.8＂ progressive scan CMOS; Max. Resolution: 1920 × 1080; Min. Illumination: color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON), 0 Lux with IR; Shutter Speed: 1/1s~1/30000 s; Day & Night: ICR; Zoom: 25 × optical, 16 × digital; Slow Shutter: Yes; Focal Length: 5.9~147.5 mm，25 × optical; FOV: Horizontal FOV: 55.4° to 2.1° (wide-tele),
Vertical FOV: 32.4° to1.2° (wide-tele),
Diagonal FOV: 62° to 3.3° (wide-tele); Focus: Auto/Semi-automatic/Manual; Aperture: F1.5; Zoom Speed: approx. 4.8 s; Supplement Light Type: IR; Supplement Light Range: 250 m; Smart Supplement Light: Yes; Movement Range (Pan): 360° endless; Movement Range (Tilt): From +90° to -90° (auto flip); Pan Speed: Configurable, from 0.1°/s to 150°/s,
Preset speed: 150°/s; Tilt Speed: Configurable, from 0.1°/s to 80°/s
Preset Speed: 80°/s; Proportional Pan: Yes; Presets: 300; Preset Freezing: Yes; Patrol Scan: 8 patrols, up to 32 presets for each patrol; Pattern Scan: 4 pattern scans, record time over 10 minutes for each scan; Park Action: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan; 3D Positioning: Yes; PTZ Status Display: Yes; Scheduled Task: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output; Power-off Memory: Yes; Main Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720); Sub-Stream: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240); Third Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240); Video Compression: Main Stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third Stream: H.265/H.264/MJPEG; Video Bit Rate: 32 Kbps to 16384 Kbps; H.264 Type: Baseline Profile/Main Profile/High Profile; H.265 Type: Main Profile; Scalable Video Coding (SVC): Support; Region of Interest (ROI): 8 fixed regions for each stream; Audio Compression: G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM; Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2); Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/48 kHz; Environment Noise Filtering: Yes; Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour; Simultaneous Live View: Up to 20 channels; API: Open Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP; User/Host: Up to 32 users, 3 user levels: administrator, operator, and user; Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address); Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR); Client: iVMS-4200, HikCentral Pro, Hik-Connect; Web Browser: IE11, Chrome 57+, Firefox 52+, Safari 11+; Image Parameters Switch: Yes; Image Settings: Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser; Day/Night Switch: Day, Night, Auto, Schedule; Wide Dynamic Range (WDR): 120 dB WDR; SNR: ≥52dB; Defog: Digital defog; Image Stabilization: EIS; Image Enhancement: BLC, HLC, 3D DNR; Privacy Mask: 24 programmable polygon privacy masks, mask color or mosaic configurable; Regional Focus: Yes; Regional Exposure: Yes; Ethernet Interface: 1 RJ45 10 M/100 M Ethernet; On-board Storage: support microSD/microSDHC/microSDXC cards, up to 256 GB; Audio: 1-ch audio input and 1-ch audio output; Alarm: 7-ch alarm input and 2-ch alarm output; RS-485: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive); Reset: Yes; Basic Event: Motion detection, video tampering alarm, exception, alarm input and output; Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection; Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan); Smart Tracking: Manual tracking, Event tracking; Face Capture: Support detecting up to 10 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face.; Power: 24 VAC, 3 A, max. 45 W, including max. 1.6 W for heater and 10 W for IR
36 VDC
Hi-POE, 42.5~57 V| 1.41 A; Dimension: Ø332 mm × 182 mm × 222 mm (Ø 13.07″ × 7.17″ × 8.74″); : Approx. 7.7 kg (16.98 lb.); Material: ADC12; Operating Condition: Temperature: Outdoor: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 90%; Wiper: Yes; Protection: IP66, TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
