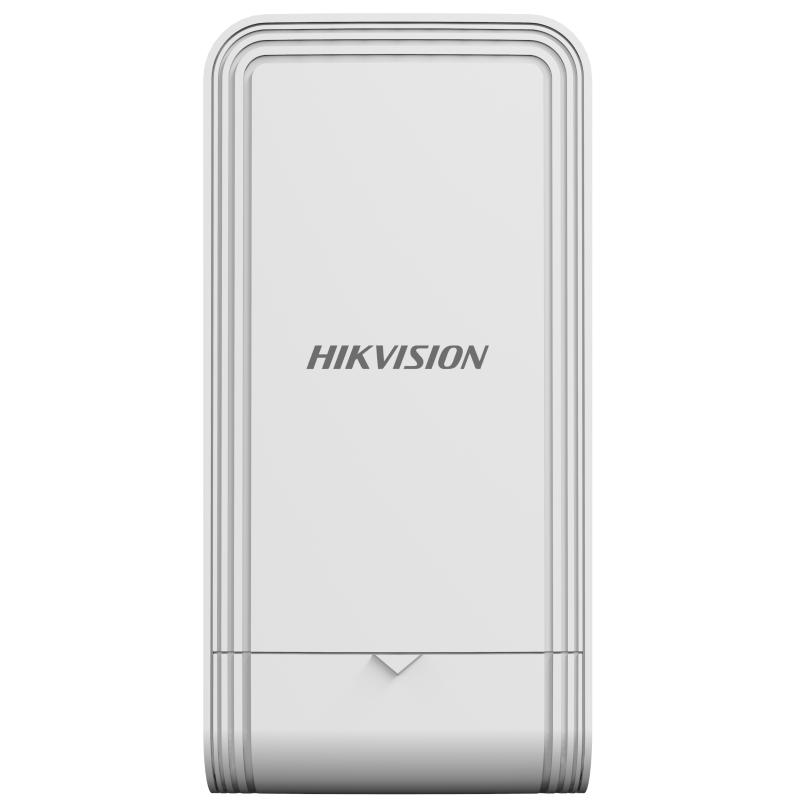

Hikvision 5Ghz 867Mbps 15km Outdoor Wireless CPE DS-3WF03C-5AC/O

Specifications

Product Dimensions (W × H × D): 92 mm × 187 mm × 58 mm (3.62” × 7.36” × 2.28”); Package Dimensions (W × H × D): 132 mm × 228 mm × 91 mm (5.19″ × 8.97″ × 3.58″); Net Weight: 0.307 kg (0.677 lb); Gross Weight: 0.807 kg (1.779 lb); Packing List: Wireless Bridge × 1,Power Adapter (12 VDC, 1 A) × 1,Binding Tape × 2,10/100/1000 Mbps PoE Injector × 1,Quick Start Guide ×1,Regulatory Compliance and Safety Information × 1; Packing Method: Single unit packing; Working Temperature: -30 °C to 70 °C (-22 °F to 158 °F); Working Humidity: 5% to 95% (no condensation); Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F); Storage Humidity: 5% to 95% (no condensation); Installation Mode: Pole Mounting; Ingress Protection: IP55; Power Consumption: 3 W for typical (1-ch 2MP IPC), Max. 7.5 W; Max. Transmission Rate of Air Interface: ≤ 867 Mbps; Wireless Standard: IEEE 802.11/a/n/ac; Working Frequency Band: 5150 MHz ~ 5250 MHz,5250 MHz~ 5350 MHz,5470 MHz~ 5725 MHz,5725 MHz~ 5850 MHz; Antenna Gain: 12 dBi; Antenna Angle: (H) Beamwidth [3 dB] 35° (V) Beamwidth [3 dB] 35°; Transmitting Power: 30 dBm @11ac MCS0 (Note: Transmitting power may vary with local regulations.); Receiving Sensitivity: -86±2dBm@AC80-MCS0; Throughput Rate: PTP: ,230 Mbps/1 KM(AC80),200 Mbps/5 KM(AC80),20 Mbps/15 KM(AC80),PTMP(1 to 8): ,80 Mbps/5 KM(AC80); Network Interface: 2 × 1000 Mbps RJ45 ports; LED Indicator: Power indicator,LAN indicator,Signal intensity indicator; Reset: Hardware resetting button; Power Supply: 12-24 VDC/1 A Passive PoE; Application Function: TDMA,DFS,TPC,IFM,IPM; Channel Width: 20/40/80 MHz; Channel Selection: Auto/manual selection; Security Mode: WPA2-PSK; Security Mechanism: Wireless network name hidden; Network Protocol: NTP (network time synchronization),SADP (auto search for IP address), HTTPS/HTTP (web management),SSH (debugging); Management Method: HCP,Web,iVMS-4200,HPP; System Log: Syslog,Control center information; Upgrade: Web,iVMS-4200,HCP,HPP; HPP: Support one-click activation and remote management via Hik-Partner Pro. Functions supported:
1. Reboot device
2. Restore device
3. Display the topology information
4. Display the connection status between AP and CPEs, including signal intensity, backgroud noise, sending & receiving rate
5. Configure wireless settings, including working mode, SSID, password, channel, channel bandwidth, transmitting power
6. Bridge alignment
7. Spectrum scanning; EMC: CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015); Safety: UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017); Chemistry: CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006); Radio: EN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17,FCC Part 15.247
