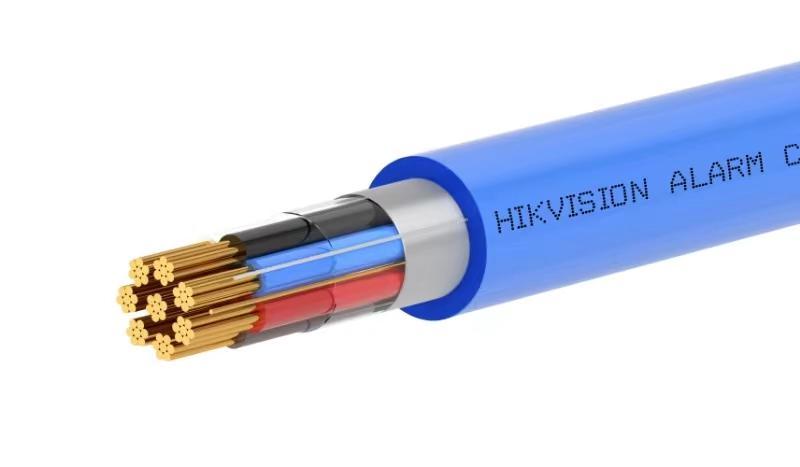

Hikvision 6-Core Shielded Alarm Cable (DS-1AC6APL1)

Specifications

Product Category: Alarm Cable 6×0.22 mm2; Fire resistance: CPR Eca; Conductor Material: Bare Stranded Copper (99.95%); Conductor spec: 7/(0.185± 0.007) mm 25AWG; Insulation Material: LSZH; Insulation Thickness: 0.2 mm; Insulation Diameter: 1.15± 0.10 mm; Shield: Drain wire + Aluminum foil; Drain Material: Bare Stranded Copper (99.95%); Conductor Spec: 7/(0.185± 0.007) mm 25 AWG; Rip-cord: Yes, Nylon; Jacket Material: LSZH; Jacket thickness: 0.50 mm; Jacket Diameter: 4.60 ± 0.50 mm; Color: Blue; Tensile strength: ≥ 10 Mpa; Elongation: ≥ 150%; Cold bend: -20 ± 2°C × 4h, 8 × cable O.D, no visible cracks; DC resistance: ≤ 95 Ω/Km(0.22mm²); DC conductor resistance unbalance: ≤ 4.0%; Operating voltage: 300 V; Usage scenarios: Indoor; Operating Temperature: -20°C to 70°C; Packaging Type: Reel in box; Package dimension: 328mm×258mm×330mm; Packaging quantity: 1; Length: (305 ± 1.5) m; : 12.20±2.0 kg
