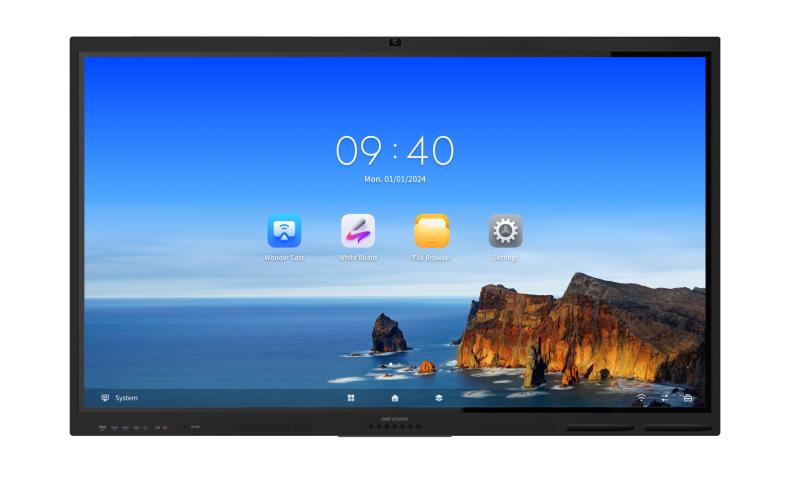

Hikvision 75-inch 4K Interactive Display DS-D5B75RB/FL

Specifications

Product Model: DS-D5B75RB/FL; Screen Size: 75 inch; Backlight: DLED; Pixel Pitch: 0.143 (H) mm × 0.430 (V) mm; Resolution: 3840 × 2160 @60 Hz; Brightness: 400 cd/m² (Typ.); Color Depth: 8 bit + RFC; Display Color: 1.07 G; Response Time: 5 ms; Panel Type: IPS; Contrast Ratio: 1200:1 (Static)
15,000:1 (Dynamic); Color Gamut: 72% NTSC (CIE1931) (Typ.); Refresh Rate: 60 Hz; Viewing Angle: 178°(H)/178°(V); Aspect Ratio: 16:9; Surface Haze: 25% Haze; Display Area: 1649.66 mm × 927.94 mm; Working Duration: 7 × 16 H; Surface Hardness: 9H (Pencil)
7 (Mohs); Surface Glass: 3.2 mm Anti-Glare Glass; Transmittance: ≥88%; Lifespan: 50,000 hours; Type: Infrared Touch Screen; Touch Point: 40-point multi-touch; Touch Response Time: ＜ 5 ms; Minimum Touch Object: ≥ 2 mm (≥ 90% touching area); Touch Precision: ± 1 mm (≥ 90% touching area); Touch Resolution: 32767 × 32767; Operation System: Android 13.0; Memory: 8 GB; Built-in Storage: 128 GB; CPU: Cortex-A55 × 4 (1.92 GHz); HDCP Version: Support 1.4/2.2/2.3; GPU: Mali-G52 MP2 (2EE); Pixel: Up to 48 MP for Photos (Android)
Up to 8 MP for Video (Windows)
Up to 2 MP for Video (Android); Camera Function: Supports intelligent switching between Android system, OPS, and PC.; Field Angle: 93.4° (diagonal), 84.5° (horizontal), 54.1° (vertical); Distortion: ≤ 2.5%; Camera Resolution Ratio: Up to 4K; Specification: Omni-directional 8-array layout; Mic Function: Echo reduction and smart noise-cancellation; Voice Distance: 12 m; Sampling Rate: 32 K; Mic Depth: 16 bit; Loudspeaker: Built-in 2 × 20 W; Speaker Frequency: 200-20Khz; Bluetooth: Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.2; NFC: Support card reader; Light Sensor: Yes; Video & Audio Input: HDMI In (HDMI 2.0) × 2, Audio In × 1; Video & Audio Output: Audio Out × 1; Control Interface: TOUCH-USB 2.0 × 1, RS232 × 1; Network Interface: LAN (100 Mbps) × 2
Wi-Fi AP&Station, 2.4G/5G
Wi-Fi AP: IEEE 802.11 a/b/g/n/ac 2 × 2 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP
Wi-Fi Station: IEEE 802.11 a/b/g/n/ac/ax 1 × 1 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP; Data Transmission Interface: USB 3.0 × 3, USB 2.0 × 2, Type-C × 1 (Type-C supports USB 2.0); Power Supply: 100 to 240 VAC, 50/60 Hz; Standby Consumption: ≤ 0.5 W; Max. Consumption: 217 W; Average Consumption: 175 W; Working Temperature: 0 °C to 40 °C (32 °F to 104°F); Working Humidity: 10%~90% RH; Package Dimensions (W × H × D): 1907 mm × 1160 mm × 223 mm; VESA: 800 mm × 400 mm (4 × M8-25 mm); Net Weight: 46.26 kg; Gross Weight: 62.99 kg; Accessary: Wall mount bracket, hook, user manual, stylus × 2, packing list, 1.5 m power cable (European standard), remote controller; Product Dimensions （With Wall Attachment）: 1713.23 mm × 1038.54 mm × 111.9 mm; Product Dimensions （Without Wall Attachment）: 1713.23 mm × 1038.54 mm × 82.5 mm
