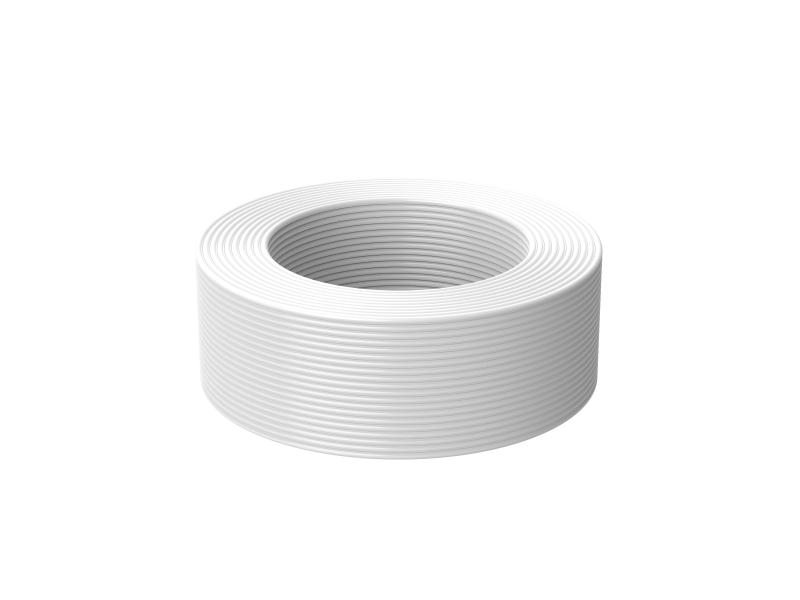

Hikvision 8-core CCA alarm cable DS-1AC8AUC0M

Hikvision 8-core CCA alarm cable (DS-1AC8AUC0M)

Hikvision DS-1AC8AUC0M fire alarm cable. Reliable, high-performance cable for fire detection systems. Durable and meets safety standards.

SKU: DS-1AC8AUC0M Category: Brand:
Guaranteed Safe Checkout

The Hikvision DS-1AC8AUC0M is a fire alarm cable designed for reliable and high-performance fire detection systems. It features multiple conductors for signal and power transmission, a durable sheath for protection, and is built to meet safety standards for fire-rated installations.

Specifications

Product Category: 8-Core Alarm Cable; Core: 8 * 0.22mm²; Conductor Material: Standard CCAM; Conductor spec: 7*0.18 ± 0.008 mm （25AWG）; Sheath Color: Red/White/Orange/Brown/Green/Yellow/Blue/Black; Insulation Material: PVC; Insulation Thickness: ≥ 0.2m; Insulation Diameter: 1.05 ± 0.10mm; Rip-cord: polyster; Jacket Material: PVC; Jacket thickness: ≥ 0.50 mm; Jacket Diameter: 4.50 ± 0.30 mm; Color: White; Tensile strength: ≥ 10 Mpa; Elongation: ≥ 150%; DC resistance: ≤ 27 Ω/100 m; Operating voltage: 60 V; Insulation Resistance, minimum: 300 MΩ.km; Usage scenarios: Indoor; Operating Temperature: -25 ~ 70 ℃; Storage Temperature: -25 ~ 70 ℃; Packaging Type: 1 Roll/Pcs
8 Roll/Box; Package dimension: Roll: 22*22*9cm
Box: 45*45*19.5 cm; Length: 100 m; : Roll: 2.5 KG
Box: 21 KG

DataSheet

Click Here for the DataSheet
