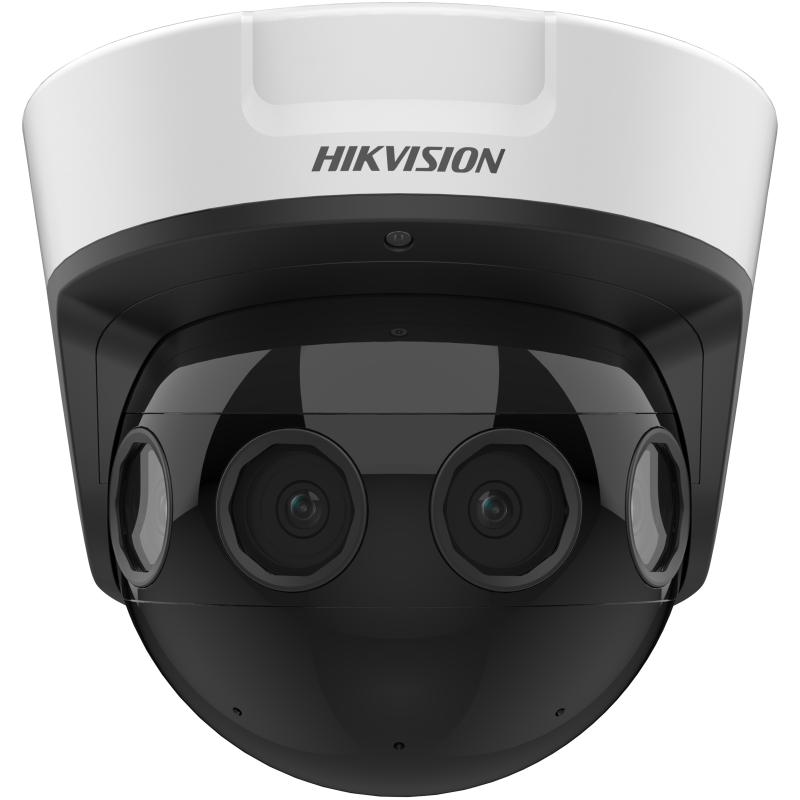

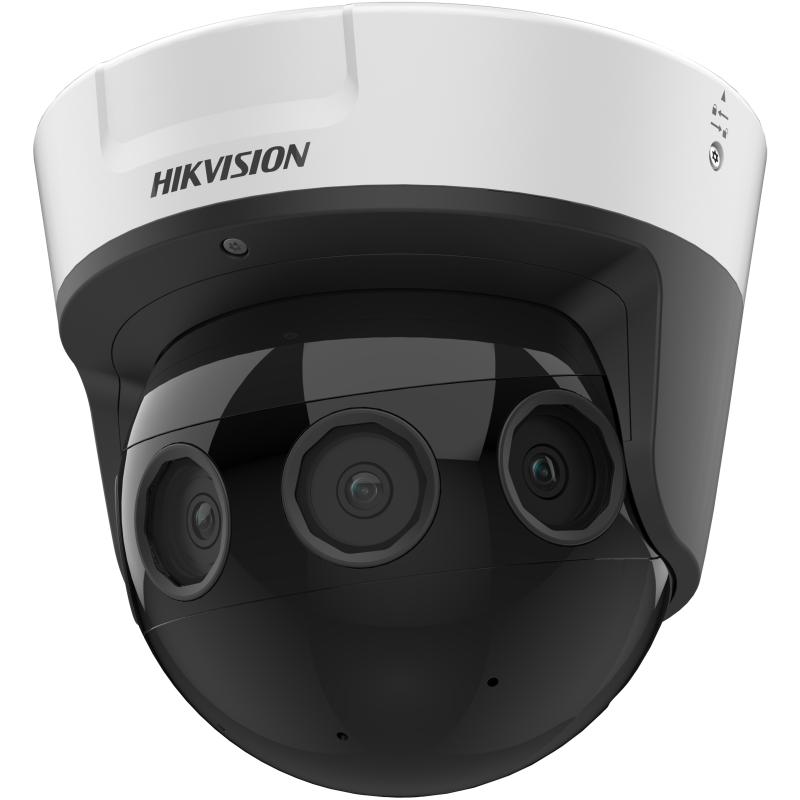

Hikvision 8 MP 180° PanoVu Network Camera

Specifications

Image Sensor: 1/1.8″ Progressive Scan CMOS; Max. Resolution: Panorama+ePTZ mode: panorama channel: 1920 × 1080; ePTZ channel: 1920 × 1080
Panorama mode: 3840 × 2160
Original mode: 1920 × 1080; Min. Illumination: Color: 0.009 Lux @ (F1.6, AGC ON)
B/W: 0.0018 Lux @ (F1.6, AGC ON), 0 Lux with IR; Shutter Time: 1/25 s to 1/100,000 s; Day & Night: IR cut filter,
Blue glass module to reduce ghost phenomenon; Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 90°; Lens Type: Fixed focal lens, 2.8 mm, four lenses; Focal Length & FOV: 2.8 mm, horizontal FOV 180°, vertical FOV 90°; Lens Mount: M16; Aperture: F1.6; DORI: 2.8 mm: D: 32 m, O: 12.5 m, R: 6.5 m, I: 3 m; Supplement Light Type: IR, four IR LEDs; Supplement Light Range: Up to 20 m; IR Wavelength: 850 nm; Main Stream: Panorama+ePTZ mode:
Panorama channel:
50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)
ePTZ channel:
50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Panorama mode:
50 Hz: 25 fps (3840 × 2160 , 2560 × 1440 , 1920× 1080)
60 Hz: 30 fps (3840 × 2160 , 2560 × 1440 , 1920× 1080)
Original mode:
50 Hz: 25 fps (1920× 1080)
60 Hz: 30 fps (1920× 1080); Sub-Stream: Panorama mode:
50 Hz: 25 fps (1280 × 720, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 360); Video Compression: Main stream: H.265+/H.265/H.264+/H.264/MJPEG (panorama + ePTZ mode, panorama mode)
Sub-stream: H.265/H.264/MJPEG (original mode); Video Bit Rate: 32 Kbps to 64 Mbps; H.264 Type: Baseline Profile,Main Profile,High Profile; H.265 Type: Main Profile; Scalable Video Coding (SVC): H.264 and H.265 encoding; Target Cropping: Yes (only panorama mode supports); Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC; Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC); Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/48 kHz; Environment Noise Filtering: Yes; Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour; Simultaneous Live View: Up to 20 channels; API: Open Network Video Interface (Profile S, Profile G), ISAPI, SDK, ISUP; User/Host: Up to 32 users
3 user levels: administrator, operator, and user; Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, TLS1.1, TLS 1.2, TLS1.3; Network Storage: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR); Client: iVMS-4200; Web Browser: Plug-in required live view: IE 10, IE 11
Plug-in free live view: Safari 12+
Local service: Chrome 57+, Firefox 52+; Image Settings: Rotate mode (only original mode supports), saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser; Day/Night Switch: Day,Night,Auto,Schedule,Alarm Trigger; Wide Dynamic Range (WDR): Digital WDR; Image Enhancement: BLC, HLC, 3D DNR, Defog, EIS (only original mode supports); Privacy Mask: 4 programmable polygon privacy masks,Only original mode supports.; Picture Overlay: LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format; Ethernet Interface: 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port; On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB; Audio: 1 input (line in), 3.5 mm, three-contact, max. input amplitude: 1 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), 3.5 mm, three-contact, max. output amplitude: 1 Vpp, output impedance: 100 Ω, interface type: non-equilibrium; Alarm: 2 inputs, 2 outputs (max. 24 VDC, 1 A); RS-485: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive); Reset Key: Yes; Basic Event: Motion detection, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error); Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection,audio exception, unattended baggage detection,object removal detection (Only panorama mode supports); Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture; People Density: Yes (only panorama mode supports); Power: 12 VDC, 1.4 A, max. 24 W, three-core terminal block
PoE: IEEE 802.3at, 42.5 V to 57 V, 0.5 to 0.4 A; Material: Aluminum alloy; Dimension: 190 mm × 208 mm × 207 mm (7.5″ × 8.2″ × 8.1″); Package Dimension: 340 mm × 261 mm × 293 mm (13.4″ × 10.3″ × 11.5″); : Approx. 3350 g (6.6 lb.); With Package Weight: Approx. 5420 g (11 lb.); Storage Conditions: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing); Startup and Operating Conditions: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing); Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian; General Function: Anti-flicker, heartbeat, mirror (only original mode and panorama mode supports), password protection, watermark, IP address filter, pixel counter (only panorama mode supports); Heater: Yes; EMC: CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015; Safety: CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,
LOA: IEC/EN 60950-1; Environment: CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006; Protection: IP67: IEC 60529-2013, IK10: IEC 62262:2002; Anti-Corrosion Protection: -Y: NEMA 4X (NEMA 250-2018)
