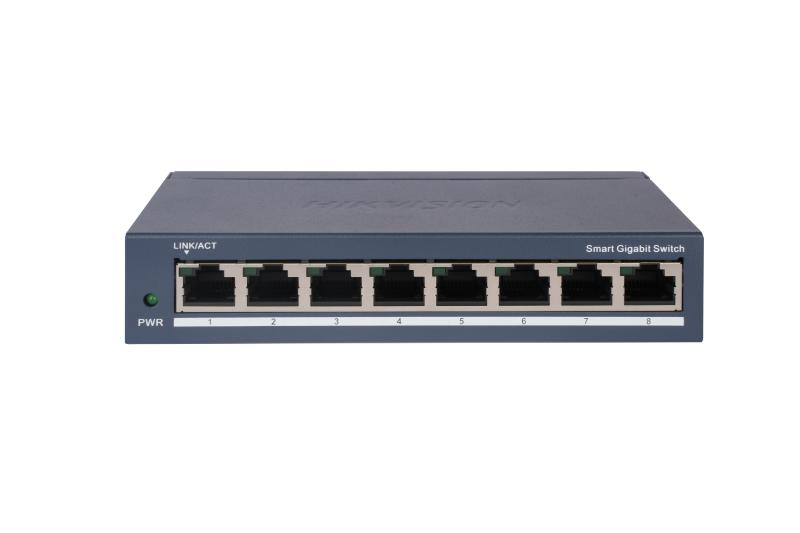

Hikvision 8 Port Gigabit Smart Switch DS-3E1508-EI

Specifications

Shell: Metal material, fan-free design; Net Weight: 0.36 kg (0.79 lb); Gross Weight: 0.660 kg (1.46 lb); Dimensions (W × H × D): 170.00 mm × 27.60 mm × 93.10 mm (6.69” × 1.09” × 3.67”); Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F); Operating Humidity: 5% to 95% (no condensation); Relative Humidity: 5% to 95% (no condensation); Power Supply: 5 VDC, 1 A; Installation Mode: Desk-Mounted;
Wall-Mounted;; Max. Power Consumption: 5 W; Power Consumption in Idle: 3 W; Surge Protection: 6 KV; Ports: 8 × Gigabit RJ45 port; MAC Address Table: 4 K; Switching Capacity: 16 Gbps; Packet Forwarding Rate: 11.91 Mpps; Internal Cache: 1.5 Mbits; Link Aggregation: Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection.
Support static link aggregation.
Support 2 aggregation groups.; HPP: Support one-click activation and remote management via Hik-Partner Pro. Functions supported:
1. Display the port rate.
2. Display the port bandwidth utilization rate.
3. Display topology information.
4. Display the alarm status.
5. Restart ports and devices.
6. Remotely upgrade the device.; Port Isolation: Ports 1 to 8: port isolation mode to improve network security
Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.; Loop Prevention: Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.
Support 802.1D STP.
Suppport 802.1w RSTP.; VLAN: VLAN is used for network scale planning and network health improvement.
Support 802.1Q.
Configurable VLAN ID from 1-4094.
Support Trunk, Access port mode.
Support Max. 32 VLAN.; System Maintenance: Support device management via web.
Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.
Support Super IP, which is a fixed IP address (10.180.190.200) for direct access.
Support management via Hik-Central Pro.
Support remote management via Hik-Partner Pro.
Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected.
Supports 802.1ab LLDP for peer device discovery.
Support SNMP v1/v2c for third-party management platform access.
Support port mirroring for fault locating.; EMC: CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),FCC (47 CFR Part 15, Subpart B),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015); Safety: CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017); Chemistry: CE-RoHS (201165EU);
WEEE (201219EU);
Reach (Regulation (EC) No.19072006)
