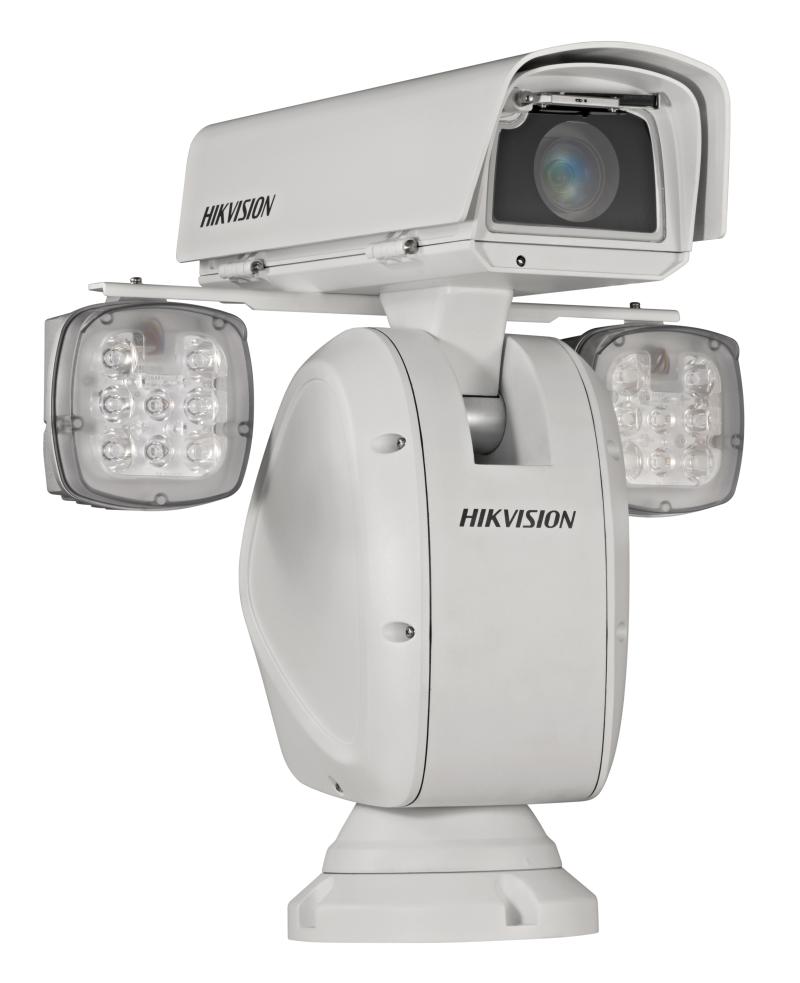

Hikvision 9-inch 2 MP 40X DarkFighter IR Network Positioning System

Specifications

Image Sensor: 1/1.8＂ progressive scan CMOS; Max. Resolution: 1920 × 1080; Min. Illumination: 0 Lux with IR||B/W: 0.001Lux@(F1.2，AGC ON)||color: 0.005Lux @ (F1.2，AGC ON); Shutter Speed: 1/1s ~ 1/30,000s; Day & Night: ICR; Zoom: 40 × optical, 16 × digital; Focal Length: 6.0 mm to 240 mm, 40 × optical; FOV: Horizontal field of view: 59.0 to 1.8° (wide-tele)
Vertical field of view: 33.7° to 1.1° (wide-tele),
Diagonal field of view: 63.4° to 2.1° (wide-tele); Focus: semi-auto||manual||auto; Aperture: F1.2; Zoom Speed: approx.5.6s; Supplement Light Range: up to 400 m IR distance; Movement Range (Pan): 360°; Movement Range (Tilt): +40° to -90°; Pan Speed: pan speed: configurable from 0.1° to 120°/s; preset speed: 120°/s; Tilt Speed: tilt speed: configurable from 0.1° to 50°/s, preset speed 50°/s; Proportional Pan: yes; Presets: 300; Preset Freezing: yes; Patrol Scan: 8 patrols; Pattern Scan: 4 pattern scans; Park Action: preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan; 3D Positioning: yes; PTZ Status Display: yes; Scheduled Task: preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output; Power-off Memory: yes; Main Stream: 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720); Sub-Stream: 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288)
60Hz: 30fps (704 × 480, 640 × 480, 352 × 240); Third Stream: 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240); Video Compression: H.265, H.264, MJPEG; H.264 Type: baseline profile, main profile, high profile; H.265 Type: main profile; Scalable Video Coding (SVC): yes; Region of Interest (ROI): 8 fixed regions for each stream; Audio Compression: G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM; Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour; Simultaneous Live View: Up to 20 channels; API: Open-ended API, ISAPI, Hikvision SDK, Third-party management platform, Hik-Connect, ISUP, Open Network Video Interface; User/Host: Up to 32 users. 3 levels: Administrator, Operator and User; Security: Authenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter; Client: iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect, HikCentral Pro; Web Browser: IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+; Wide Dynamic Range (WDR): 140 dB WDR; Image Stabilization: EIS; Built-in gyroscope to improve EIS performance.; Image Enhancement: BLC, HLC, 3D DNR; Privacy Mask: up to 24 masks, polygon region , mosaic mask , mask color configurable; Regional Focus: yes; Regional Exposure: yes; Ethernet Interface: 1 RJ45 10 M/100 M Ethernet Interface; On-board Storage: Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR; Audio: 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%, 1 audio output, line level, impedance: 600 Ω; Alarm: 7 alarm inputs, 2 alarm outputs; RS-485: Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive; Basic Event: motion detection, video tampering alarm, alarm input, alarm output, exception; Smart Event: unattended baggage detection, object removal detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Audio Exception Detection; Linkage: Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.; Smart Tracking: manual tracking, event tracking; Face Capture: Support detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face.; Power: 24 VAC ± 25%, max. 100 W; Dimension: 460 mm × 390 mm × 491 mm (18.11″ × 15.35″ × 19.33″); : Approx. 15 kg (33.07 lb); Material: Aluminum alloy ADC12; Operating Condition: Temperature: -40°C to 70°C (-40°F to 158°F)，Humidity: ≤ 95%; General Function: mirror, password protection, watermark, IP address filter; Vandal-proof Alarm: yes; Wiper: Yes. Rain-sensing auto control; Language: 32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil); Protection: IP66 Standard, 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
