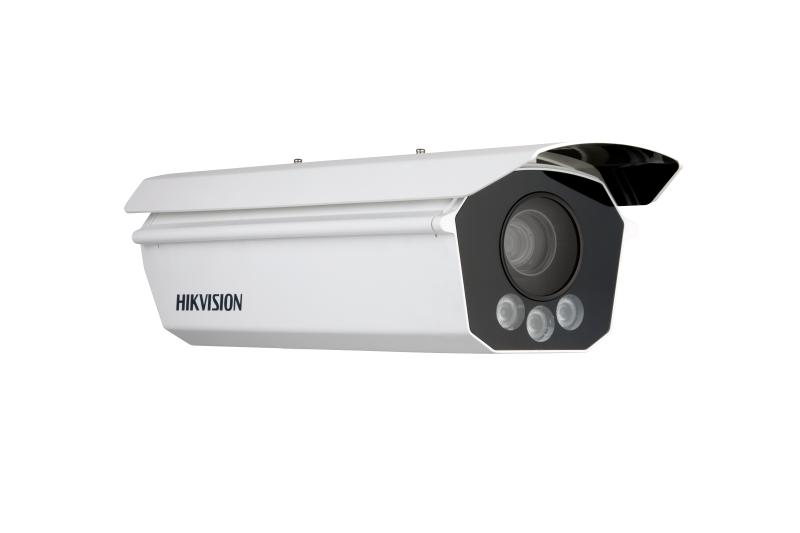

Hikvision 9 MP Incident Detection Capture Unit iDS-TCS900-FI/1140/H1(AF)(24V)

Specifications

Image Sensor: 1″ GMOS; Max. Resolution: 4096 × 2160; Min. Illumination: Color: 0.001 Lux@(F1.4, AGC ON), B/W: 0.0005 Lux @ (F1.4, AGC ON), 0 Lux with IR; Shutter Time: 7 us-20000 us; Day & Night: IR cut filter; Lens Type: Varifocal lens, motorized lens, 11 to 40 mm; Focal Length & FOV: 11 to 40 mm, horizontal FOV 62° to 23.6°, vertical FOV 32.2° to 12.2°, diagonal FOV 70° to 26.8°; Focus: Auto; Aperture: F1.6-25; Built-in Supplement Light Type: IR light; Supplement Light Number: 3; Built-in Supplement Light Range: Up to 30 m; IR Wavelength: 850 nm; External Supplement Light: Strobe light; Main Stream: 50 Hz: 50 fps (4096 × 2160, 3840 × 2160, 3392 × 2008, 3072 × 1728, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (4096 × 2160, 3840 × 2160, 3392 × 2008, 3072 × 1728, 2688 × 1520, 1920 × 1080, 1280 × 720); Sub-Stream: 50 Hz: 50 fps (3392 × 2008, 2688 × 1520, 1920 × 1080, 1280 × 720, 704 × 576)
60 Hz: 30 fps (3392 × 2008, 2688 × 1520, 1920 × 1080, 1280 × 720, 704 × 576); Third Stream: 50 Hz: 50 fps (1920 × 1080, 1280 × 720, 704 × 576)
60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 576); Video Compression: Main stream: H.265/H.264/MJPEG,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264/MJPEG; Video Bit Rate: 32 Kbps to 16 Mbps; H.264 Type: Baseline profile/Main profile/High profile; H.265 Type: Main profile; Scalable Video Coding (SVC): H.264 and H.265 encoding; Protocols: TCP/IP, HTTP, HTTPS, DDNS, RTSP, NTP, FTP, SFTP, DHCP, DNS, RTP, IPv4/IPv6, UDP, SSL/TLS, ICMP, RTCP, SNMP, IGMP, 802.1X, QoS, ISUP, ARP; Simultaneous Live View: Up to 6 channels; API: ONVIF (PROFILE S, PROFILE G, PROFILE T),ISAPI,SDK,ISUP; User/Host: Up to 32 users,3 user levels: administrator, operator, and user; Security: Password protection
Complicated password
HTTPS encryption
Watermark
Basic and digest authentication for HTTP/HTTPS
RTP/RTSP over HTTPS
Control timeout settings
Security audit log
IP address filter
WSSE and digest authentication for ONVIF
Host authentication (MAC address); Network Storage: Micro SD/TF card (512 GB),Local storage,CVR,NVR,ANR; Client: Hik-Central Master,HikCentral Master Lite,Hik-Central Pro; Web Browser: Chrome V61+, IE9 to IE11, Firefox V41+, Edge; Image Settings: Saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser; Day/Night Switch: Auto, Schedule, Manual; Image Enhancement: BLC, 3D DNR; Satellite Positioning: GPS (optional); Ethernet Interface: 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet interface
1 LC fiber optical interface, SFP module, single mode, 20 km transmission distance, 1310 nm (TX) and 1550 nm (RX), 155 Mbps transmission rate; RS-232: 1 RS-232; RS-485: 3 RS-485 interfaces (half duplex, HIKVISION); USB: 1 USB 2.0 (5.0 V, 1.0 A) interface(s); Alarm: 7 output interfaces(5V, level signal); On-Board Storage: Built-in memory card slot, supporting microSD/SDHC/SDXC card, up to 512 GB; Basic Event: HDD Error, network disconnected, IP address conflicted, vehicle detector exception, traffic light detector exception; Coverage: Up to 4 lanes; Trigger Mode: Video trigger; Smart Function: Supports multiple incidents detection: Stopped Vehicle, Driving on the Lane Line, Lane Change, Continuous Lane Change, Wrong-Way Driving, Congestion, Construction, Roadblock, Pedestrian, Fallen Object, Emergency Lane Occupation, Rapid Deceleration, Smoke, Fire, Occupied by Animal.

Supports multiple traffic parameters collection: Traffic Flow, Average Speed, Traffic State, Lane Queue Length, Time Interval of Vehicle Head, Headway Distance, Lane Space Occupancy, Lane Time Occupancy.; Operating System: Linux; Power: DC 24 V ±20%, 2 A, max. 48 W, 2-core terminal block; Material: Aluminum alloy; Dimension: 501.0 mm × 175.6 mm × 144.6 mm (19.72″ × 6.92″ × 5.69″) (L × W × H); Package Dimension: 667 mm × 357 mm × 224 mm (26.26″ × 14.06″ × 8.82″) (L × W × H); Weight: Approx. 5.13 kg (11.31 lb.); With Package Weight: Approx. 7.4 kg (16.31 lb.); Operating Condition: -30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing); Storage Condition: -30 °C to +70 °C (-22 °F to +158 °F). Humidity 95% or less (Non-condensing); General Function: Heartbeat, Password protection, NTP time adjustment, One-key reset, Watermark; Language: 8 languages: English, Thai, Croatian, Korean, Russian, Traditional Chinese, Ukrainian, Spanish; EMC: CE-EMC: EN 55032: 2015/A11:2020+A1:2020, EN IEC61000-3-2: 2019/A1:2021, EN 61000-3-3: 2013+A1:2019/A2:2021, EN 50130-4: 2011 +A1: 2014; Safety: CE-LVD: EN 61010-1: 2010+A1: 2019,
CB: IEC 61010-1: 2010; IEC 61010-1: 2010/AMD1: 2016; Environment: CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006; Protection: IK10: IEC 62262:2002,IP67: IEC 60529-2013
