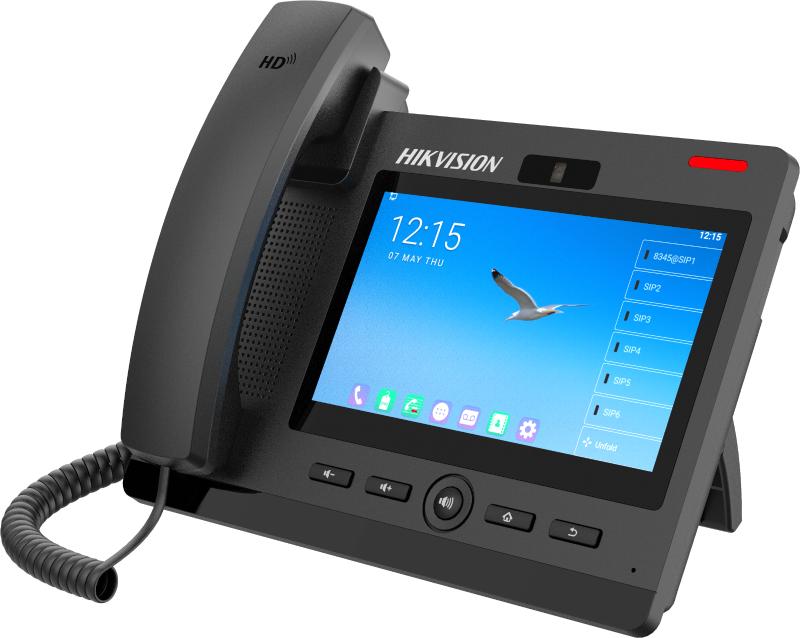

Hikvision Android SIP Phone DS-KP9301-HE1

Specifications

Operating system: Embedded Android 9.0 operation system; ROM: 4 GB; RAM: 2 GB; CPU: Embedded processor; Screen size: 7-inch; Operation method: Touch screen; Type: Colorful IPS screen; Resolution: 1024 × 600; Lens: 1; Resolution: 2 MP; Video compression standard: H.264; Video decoding: H.264; Video decoding resolution: QVGA / CIF / VGA / 4CIF / 720P / 1080P; Audio compression standard: G.711A/U, G.729AB, iLBC, G.722, Opus; Audio input: HD voice microphone;
HAC handset; Audio output: HD voice speaker (handset/hands-free, 0 ~ 7KHz frequency response); Audio quality: Full-duplex Acoustic Echo Canceller (AEC)
Noise Reduction (NR)
Packet Loss Concealment (PLC); Volume adjustment: Adjustable; Communication Lines: 20 SIP Lines; Contact capacity: Local phonebook (2000 entries)
Remote phonebook (XML/LDAP, 2000 entries); Call log capacity: In/Out/Missed, 1000 entries; Communication protocol: SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS
RTP/RTCP/SRTP
STUN
DHCP
IPv6
PPPoE
L2TP
OpenVPN
SNTP
FTP/TFTP
HTTP/HTTPS
TR-069; Wired network: 10/100/1000 Mbps self-adaptive; Wi-Fi standard: NA; Network interface: 2 RJ-45 10/100/1000 Mbps self-adaptive; TF card: Max to 128 G (reserved); USB: USB2.0 Port x1 (reserved); Power supply input: DC power input; Communication interface: 2 RJ-9 ：handset x1, headset x1; Video output: HDMI x 1 (reserved); Button: 5 keys, including 1 home key, 1 return key, 1 hand free key, and 2 Volume Control keys (up/down); Installation: Desktop stand
Wall-mounted; Indicator: Red status indicator light for call and message waiting; Working temperature: 0 °C to 45 °C (32 °F to 113 °F); Working humidity: 10% to 95% (no-condensing); Dimensions: Desktop Stand (Angle 1): 254.8 mm x 154.9 mm x 202.8 mm; Desktop Stand (Angle 2): 254.8 mm x 167.8 mm x 182.4 mm; Wall Mounted: 254.8 mm x 118.4 mm x 206.9 mm; Power supply: IEEE802.3af, Standard PoE,12 VDC; Application environment: Indoor; Power consumption: Power Consumption (PoE): 3.11~ 10.76 W Power Consumption (Adapter): 2.38~8.4 W; Language: English, Galician, Simplified Chinese, Danish, Czech, Traditional Chinese, Russian, Italian, French, German. Hebrew, Spanish, Catalan, Turkish, Hungarian, Slovenian, Korean, Dutch, Ukrainian, Portuguese, Polish, Philippine,, Indonesian, Latvian, Lithuanian, Malay, Romanian, Slovak, Finnish, Swedish, Vietnamese, Greek, Bulgarian, Serbian, Arabic, Persian, Thai
