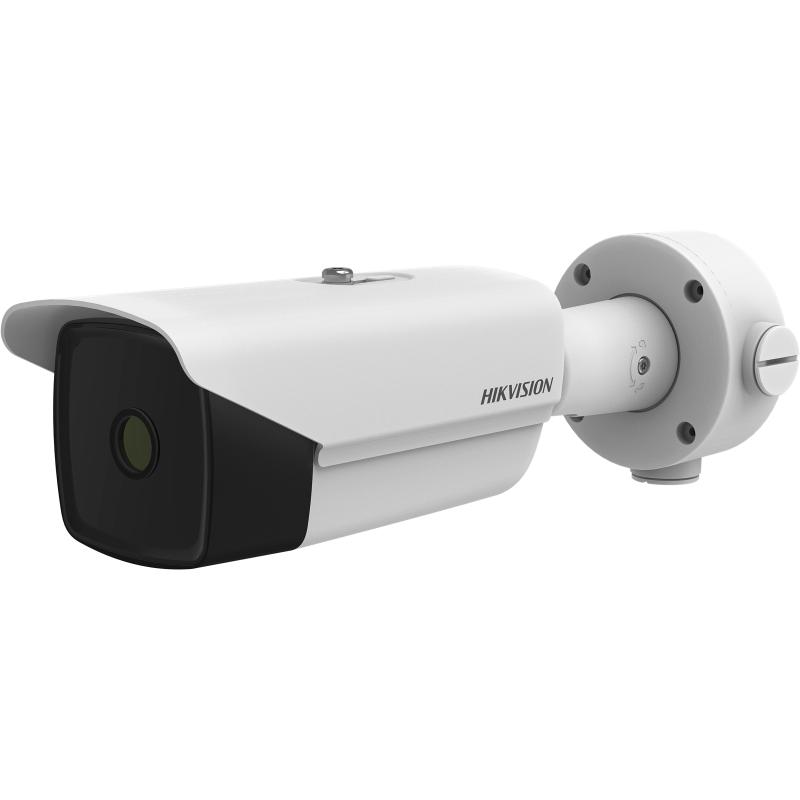

Hikvision Anti-corrosion Thermal Network Bullet Camera DS-2TD2167-35/PY

Specifications

Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays; Resolution: 640 × 512; Pixel Interval: 17 μm; Response Waveband: 8 μm to 14 μm; NETD: ≤35 mK (@25°C,F#=1.1); Focal Length: 35 mm; IFOV: 0.49 mrad; Aperture: F1.0; Field of View: 17.67° × 14.18° (H × V); Min. Focusing Distance: 30 m; Digital Zoom: ×2, ×4, ×8; Target Coloration: Yes. Supported in white hot and black hot mode.; VCA: 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.; Temperature Measurement: 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line).; Temperature Range: -20 °C to 150 °C (-4 °F to 302 °F); Temperature Accuracy: ± 8 °C (±14.4 °F); Fire Detection: Dynamic fire point detection, up to 10 fire points detectable.; Main Stream: 25 fps (1280 × 720, 704 × 576, 640 × 512, 352 × 288); Sub-stream: 25 fps (704 × 576, 640 × 512, 352 × 288); Third Stream: 25 fps (1280 × 720, 704 × 576, 640 × 512, 352 × 288); Video Compression: Main stream: H.265+/H.265/H.264+/ H.264
Sub-stream: H.265/H.264/MJPEG; Audio Compression: G .711u/G.711a/G.722.1/MP2L2/G.726/PCM; Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE,SSL; Network Storage: microSD/SDHC/SDXC card (256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR); API: Open-ended API, supporting ISAPI, HIKVISION SDK, and third-party management platform, open network video interface,ONVIF; Simultaneous Live View: Up to 20 channels; User/Host level: Up to 32 users, 3 levels: Administrator, Operator, User; Security: User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering; Client: iVMS-4200, Hik-Connect; Web Browser: IE 10-11, Chrome 41-44, Firefox 30-51; Alarm Input: 2-ch inputs (0-5 VDC); Alarm Output: 2-ch relay outputs, alarm response actions configurable; Alarm Action: SD card record/relay output/smart capture/FTP upload/email linkage /audio alarm/white light alarm; Audio Input: 1, 3.5 mm Mic in/Line in interface.
Line input: 2-2.4 V [p-p], output impedance: 1 KΩ ± 10%; Audio Output: Linear Level; Impedance: 600 Ω; Communication Interface: 1, RJ45 10 M/100 M self-adaptive Ethernet interface.
1, RS-485 interface; Protection Level: IP67 Standard
TVS 6000V lightning protection, surge protection, voltage transient protection
Ik10 rated housing; Web Client Language: 32 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil); Power: 12 VDC ± 20%, two-core terminal block
PoE (802.3af, class 3); Power Consumption: 12 VDC ± 20%: 0.4 A, max. 4.5 W
PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, max. 5 W; Work Temperature/Humidity: -40 °C to 65 °C (-40 °F to 149 °F)
95% or less; Dimension: 351.3 mm × 113.5 mm × 115.2 mm (13.83″ × 4.47″ × 4.53″); : Approx. 1.77 kg (3.90 lb); VCA Range for Humans: 245 m; VCA Range for Vehicles: 735 m
