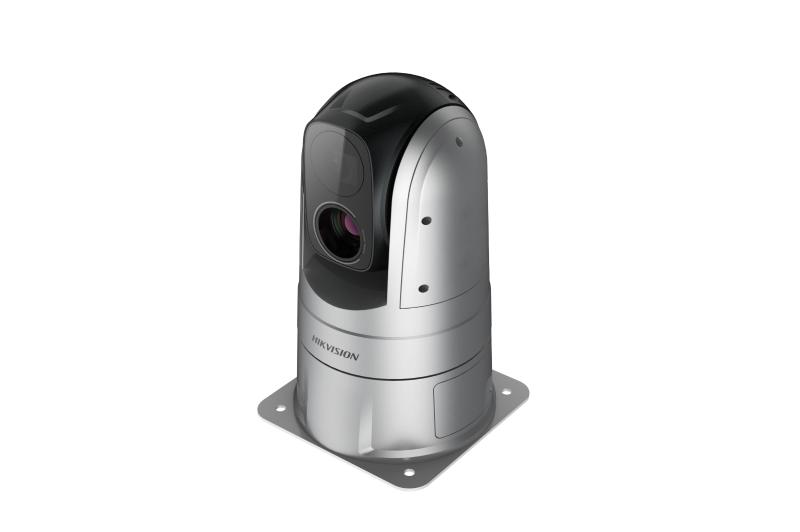

Hikvision Bi-spectrum Mobile Thermal PTZ Camera DS-2TD4538-35A4/W

Specifications

Image Sensor: VOx Uncooled Focal Plane Arrays; Resolution: 384 x 288; Spectral Range: 8 μm to 14 μm; Pixel Pitch: 12 μm; Focal Length: 35 mm; Focus Mode: Athermalized; IFOV: 0.34 mrad; NETD: Less than 35 mK (@25 °C,F#=1.0); Field of View: 7.5° × 5.6° (H × V); Aperture: F1.0; Digital Zoom: ×1, ×2, ×4, ×8; Min. Focusing Distance: 45 m; Image Sensor: 1/2.8″ Progressive Scan CMOS; Resolution: 2560 × 1440, 4 MP; Field of View: 55°×33° (H × V)~2.4°×1.4° (H × V); Focal Length: 4.8 mm～120 mm，25X; Min. Illumination: Color: 0.05 Lux @ (F1.3, AGC ON), B/W: 0.01 Lux @ (F1.3, AGC ON); Aperture (Range): F1.0-F1.6; Focus Mode: Semi-auto & Manual; Digital Zoom: ×1, ×2, ×4, ×8，×16; Day & Night Mode: IR cut filter with auto switch; Shutter Speed: 1/1 s to 1/30,000 s; WDR: 120 dB; Optical Defog: No, support defog by algorithm; Picture in Picture: Display partial image of thermal channel on the full screen of optical channel; Target Coloration: Supported in white hot and black hot mode(Up to 15 types); Movement Range: Pan: 360° Continuous Rotate; Tilt: From -20° to + 90° (auto flip); Pan Speed: Configurable, From 0.2°/s to 200°/s; Tilt Speed: Configurable, From 0.2°/s to 100°/s; Proportional Zoom: Yes; Presets: 300 in total, 273 are configurable.; Patrol Scan: 8; Up to 32 Presets Per Patrol; Pattern Scan: 4; More Than 10 Minutes Per Pattern; Power Off Memory: Yes; Park: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan; IR Distance: Up to 100m; IR Intensity and Angle: Automatically adjusted; VCA: 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.; Temperature Measurement: Support 3 temperature measurement rule types, 273 presets as scene, 21 rules of each scene (10 points, 10 areas, and 1 line); Temperature Range: -20 °C to 150 °C (-4 °F to 302 °F); Temperature Accuracy: ± 8 °C (±14.4 °F); Fire Detection: Dynamic fire detection, up to 10 fire points detectable; Main Stream: Optical channel
50 Hz: 25 fps (2560 × 1440，1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30 fps (2560 × 1440，1920 × 1080, 1280 × 960, 1280 × 720)
Thermal channel
25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 x 576, 640 x 512, 384 x 288); Sub-stream: Optical channel
50 Hz: 25fps (704 × 576, 352 × 288)
60 Hz: 30 fps (704 × 576, 352 × 288)
Thermal channel
25 fps (704 × 576, 640 × 512, 384 × 288); Video Compression: Main stream: H.265+/H.265/H.264+/ H.264
Sub-stream: H.265/H.264; Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE; Network Storage: MicroSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR); API: ISAPI, HIKVISION SDK, third-party management platform, ONVIF (Profile S, Profile G, Profile T); Simultaneous Live View: Up to 20 channels; User/Host level: Up to 32 users, 3 levels: Administrator, Operator, User; Security: User authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering; Client: iVMS-4200, Hik-Connect; Web Browser: Live view (plug-in allowed) : Internet Explorer 11 Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0+, Firefox 52.0 +; SIM Card Type: MicroSIM; Frequency: LTE FDD: B 1/3/5/7/8/20/28
LTE TDD: B 38/40/41
WCDMA: B 1/5/8; Standard: LTE FDD/LTE TDD/WCDMA; Wi-Fi: Wi-Fi standard: IEEE802.11b, 802.11g, 802.11n
Frequency range: 2.4GHz~2.4835GHz
Channel bandwith: Support 20MHz
Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK; Alarm Action: Preset/Patrol Scan/Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage; Communication Interface: 1, RJ45 10 M/100 M Self-adaptive Ethernet interface.
1, RS-485 interface; Menu Language: 32 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil); Power Supply: DC8V~DC36V; Power Consumption: Max. ＜ 25 W; Working Temperature/Humidity: From -40°C to 70°C (-40°F to 140°F); Humidity: 90% or Less; Protection Level: IP67 Standard; TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection; Dimensions: Ø180mm×300mm(height); : Approx. 4.2 kg (9.3 lb); VCA Range for Humans: 350 m; VCA Range for Vehicles: 1050 m; Other: E-mark and EN45545 on-board certification
